Installation Procedure

Route the drive belt over all the pulleys except the drive belt tensioner pulley.
Observe the drive belt routing for the vehicles without air conditioning.

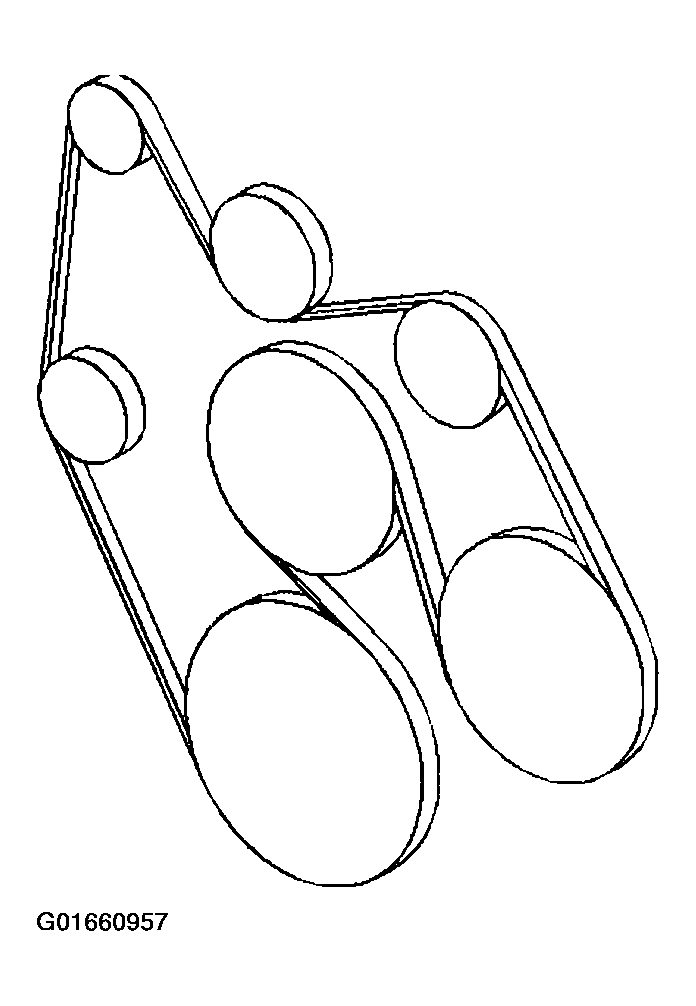

Fig 1: Drive Belt Routing (Without A/C)
Courtesy of GENERAL MOTORS CORP.
Observe the drive belt routing for the vehicles with air conditioning.

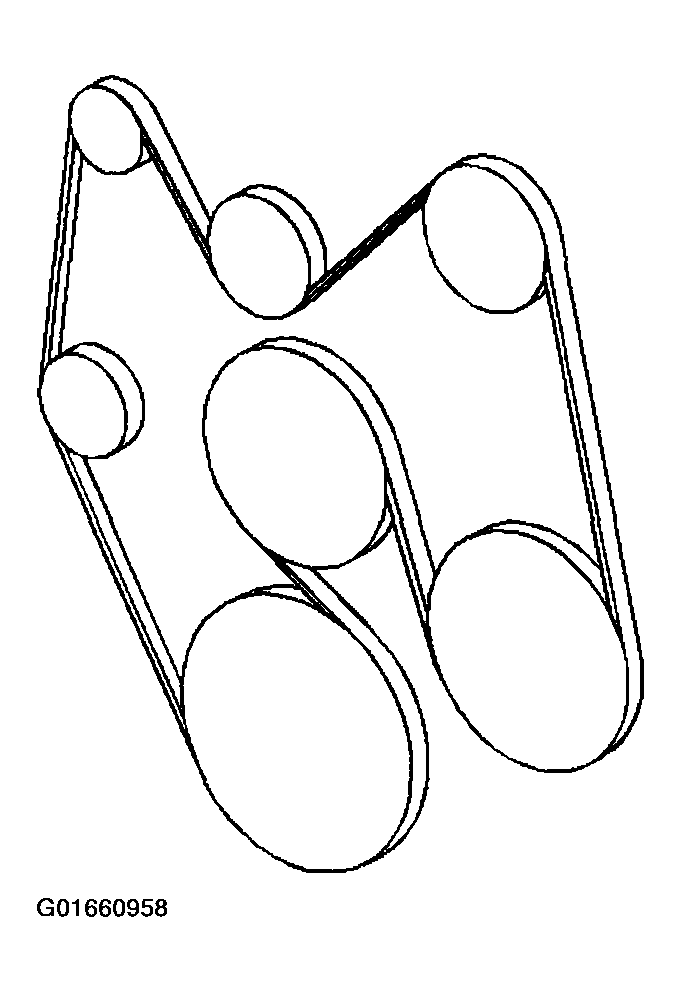

Fig 2: Drive Belt Routing (With A/C)
Courtesy of GENERAL MOTORS CORP.
Install a 3/8 inch drive wrench on the drive belt tensioner arm and rotate the arm counterclockwise.
Install the drive belt over the drive belt tensioner pulley.
Slowly release the tension on the drive belt tensioner arm.

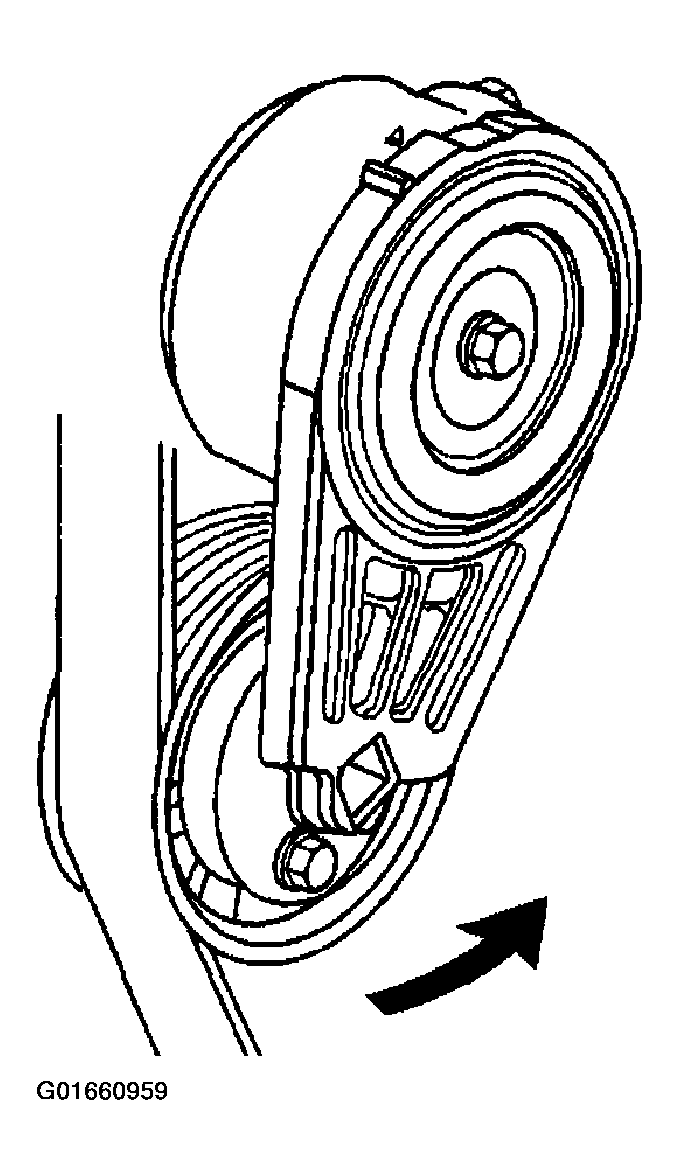

Fig 3: Drive Belt Tensioner Arm
Courtesy of GENERAL MOTORS CORP.
Inspect for the drive belt being properly installed on the pulleys.

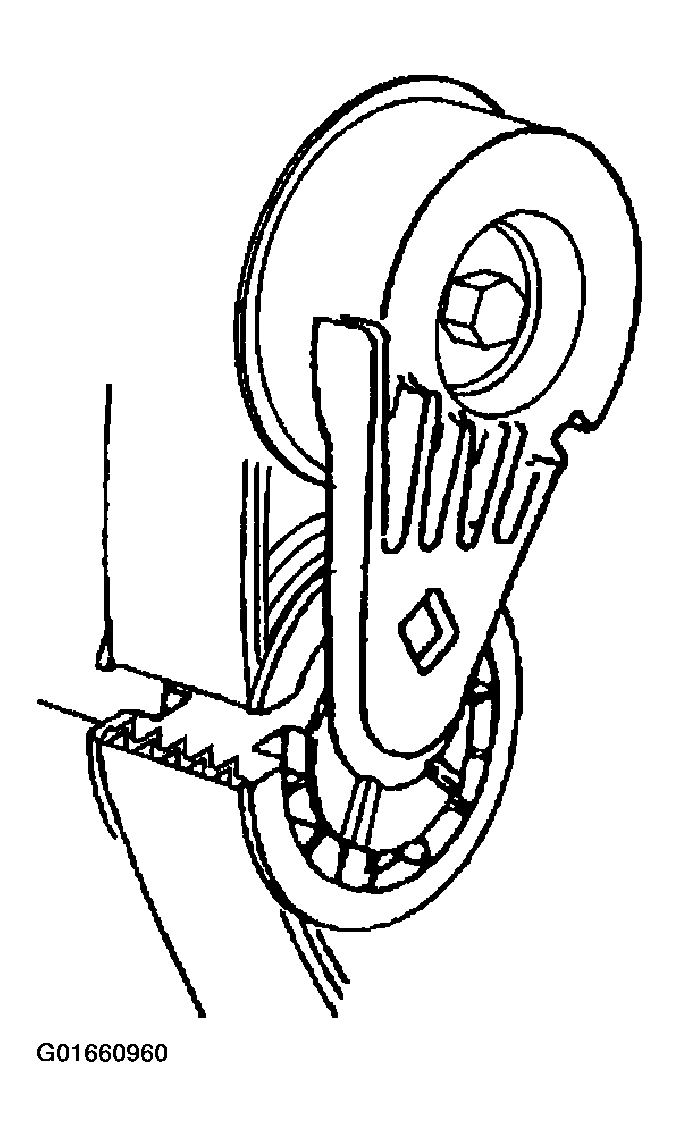

Fig 4: Aligning Drive Belt
Courtesy of GENERAL MOTORS CORP.
Avoid mis-positioning the drive belt by one or more grooves.

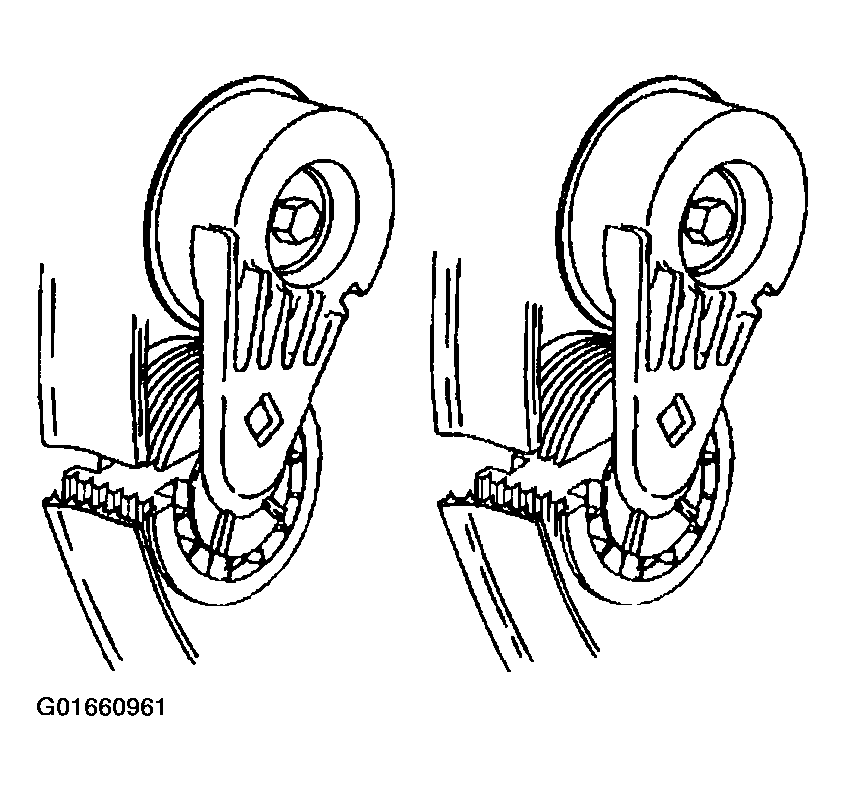

Fig 5: View Of Mispositioned Drive Belt
Courtesy of GENERAL MOTORS CORP.
Confirm for the proper drive belt size and the correct drive belt routing by observing the location of the fix pointer and the index marks on the drive belt tensioner. With a new drive belt installed the fix pointer should align within the indentation on the drive belt tensioner.

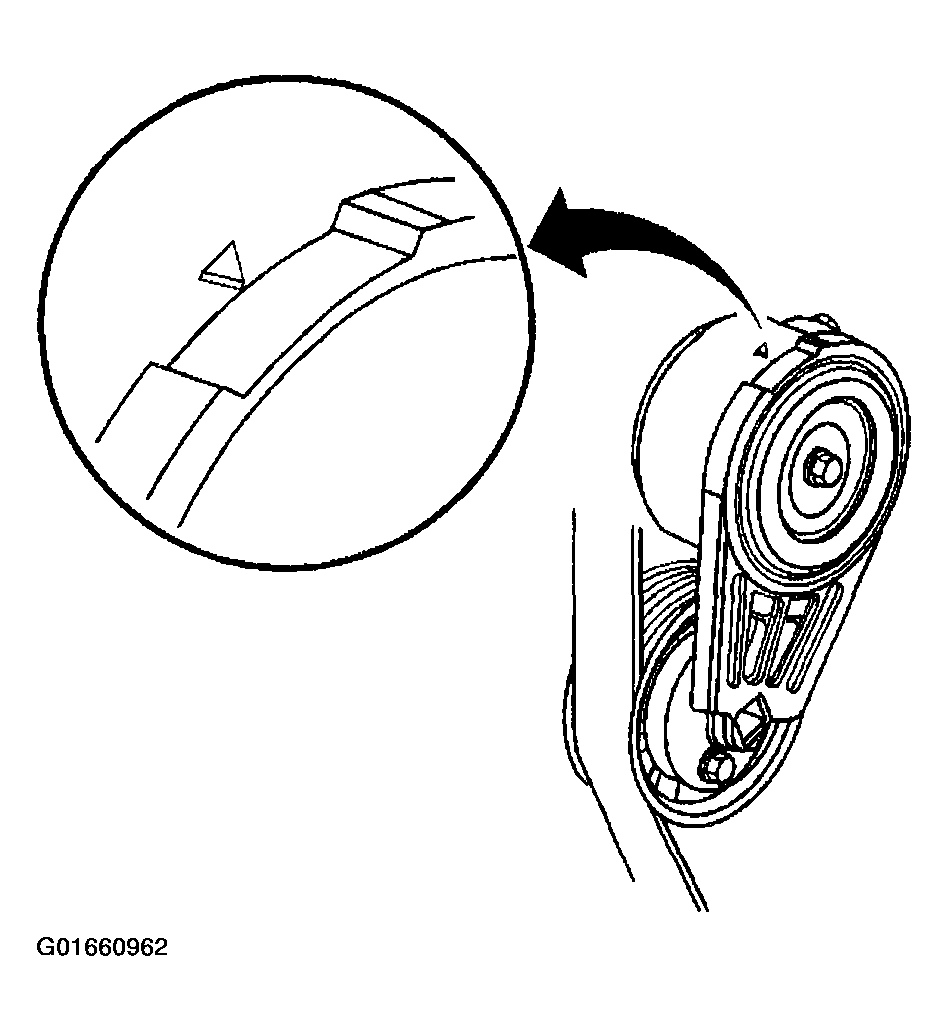

Fig 6: Fix Pointer & Drive Belt Tensioner Index Mark Alignment (New Belt)
Courtesy of GENERAL MOTORS CORP.
With a used drive belt installed the fix pointer should not align past the index mark.

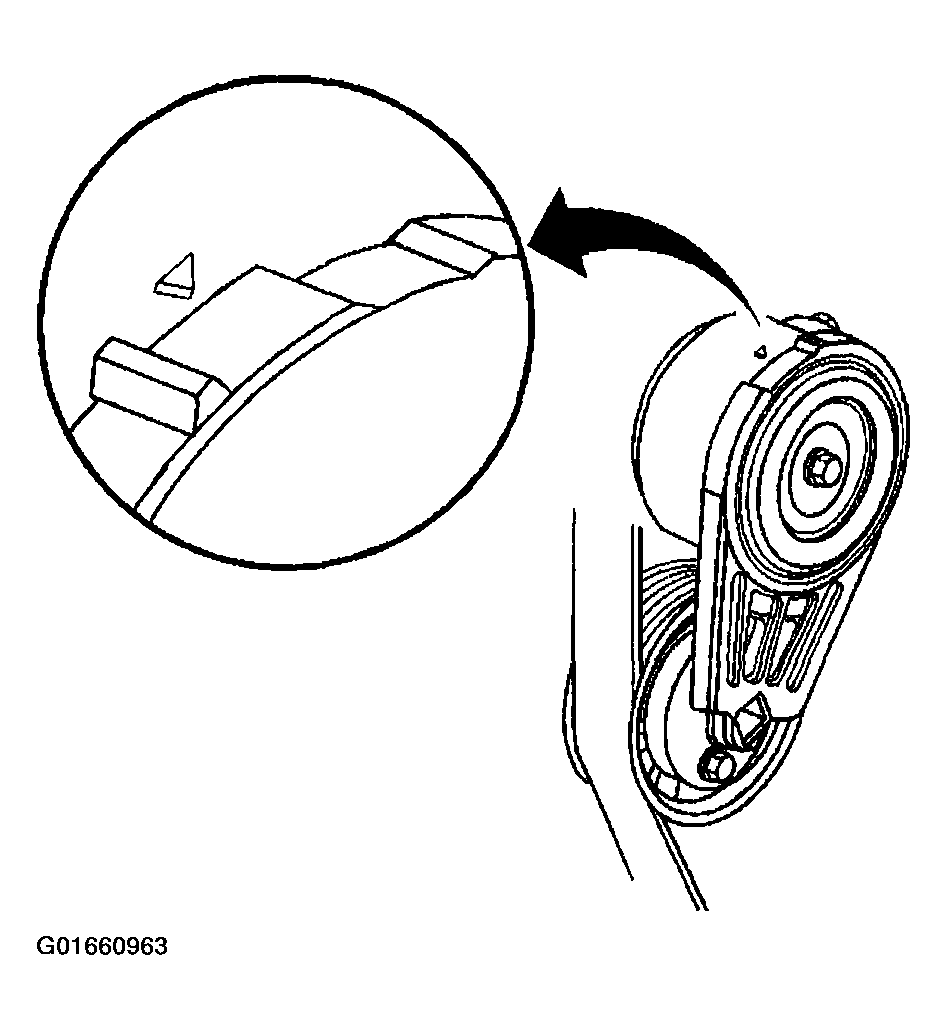

Fig 7: Fix Pointer & Drive Belt Tensioner Index Mark Alignment (Used Belt)
Courtesy of GENERAL MOTORS CORP.
