Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the drive belt idler pulley and bolt to the generator mounting bracket.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  2. Install the drive belt. Refer to Drive Belt Replacement .

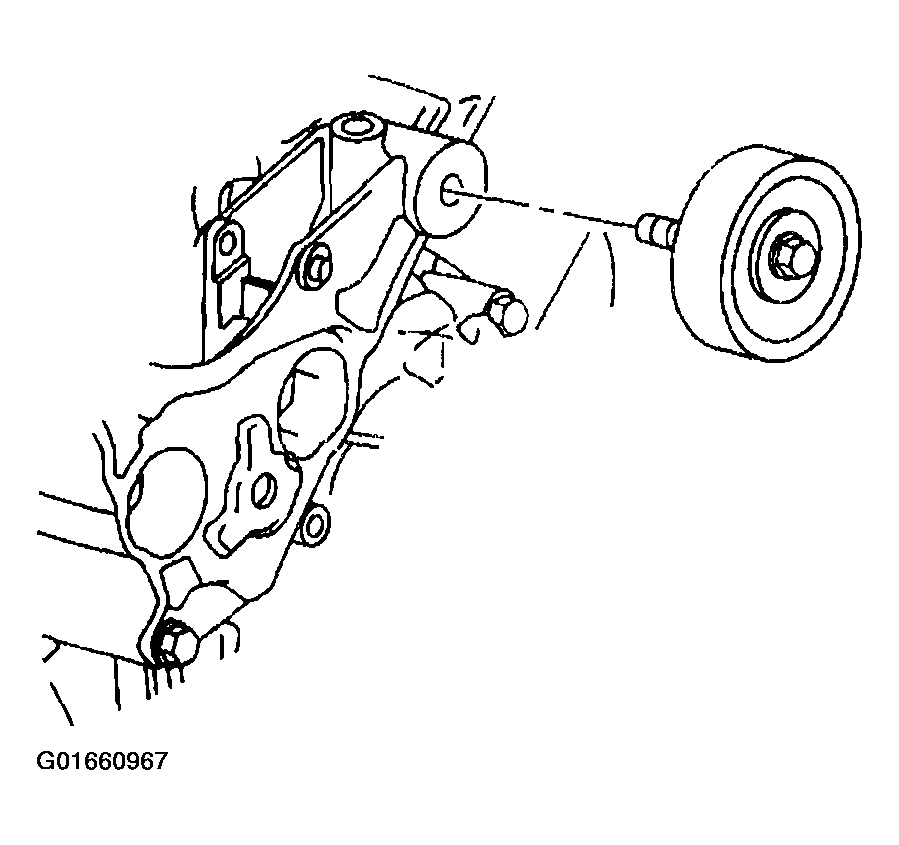

    Fig 1: Right Drive Belt Idler Pulley
    G01660967Courtesy of GENERAL MOTORS CORP.
