Installation Procedure

  1. Lubricate the exterior of the seal with clean engine oil.
  2. Use the J 35468 with a hammer in order to install the crankshaft front oil seal.
  3. Inspect to ensure the crankshaft front oil seal is flush and square to the engine front cover.
  4. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .

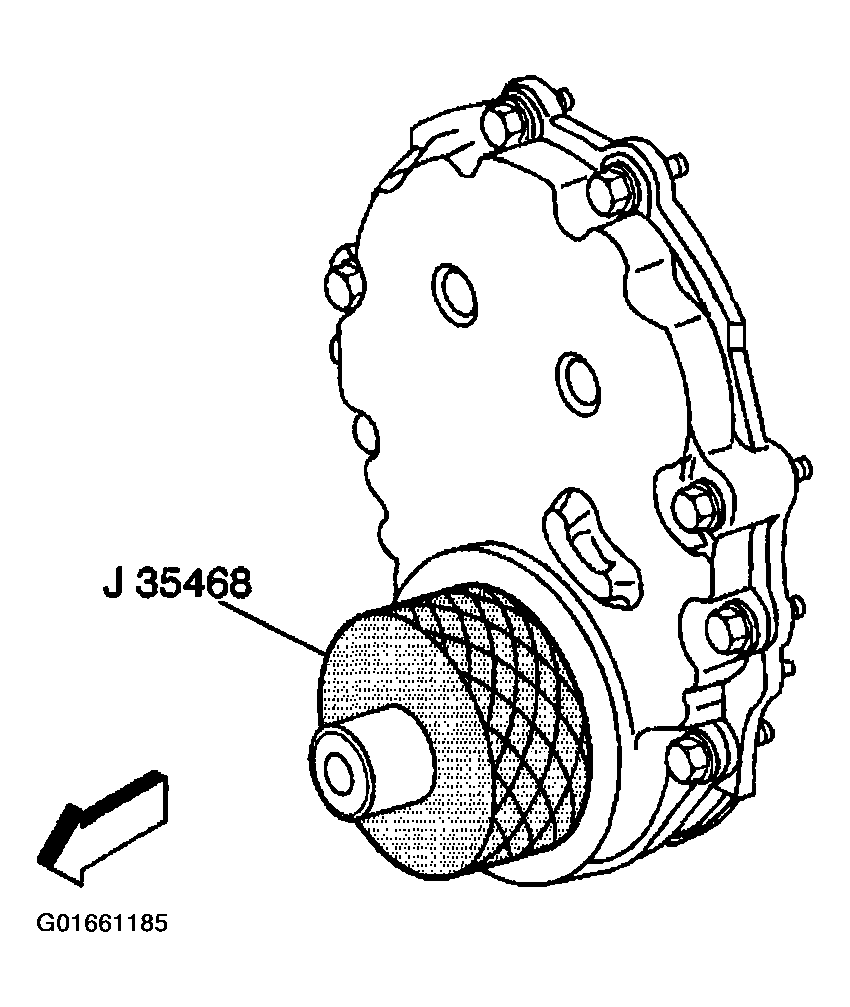

    Fig 1: Installing Crankshaft Front Oil Seal Using J 35468
    G01661185Courtesy of GENERAL MOTORS CORP.
