Upper Engine Noise, Regardless of Engine Speed

Fig 1: Upper Engine Noise, Regardless Of Engine Speed (1 Of 2)
G01660940Courtesy of GENERAL MOTORS CORP.

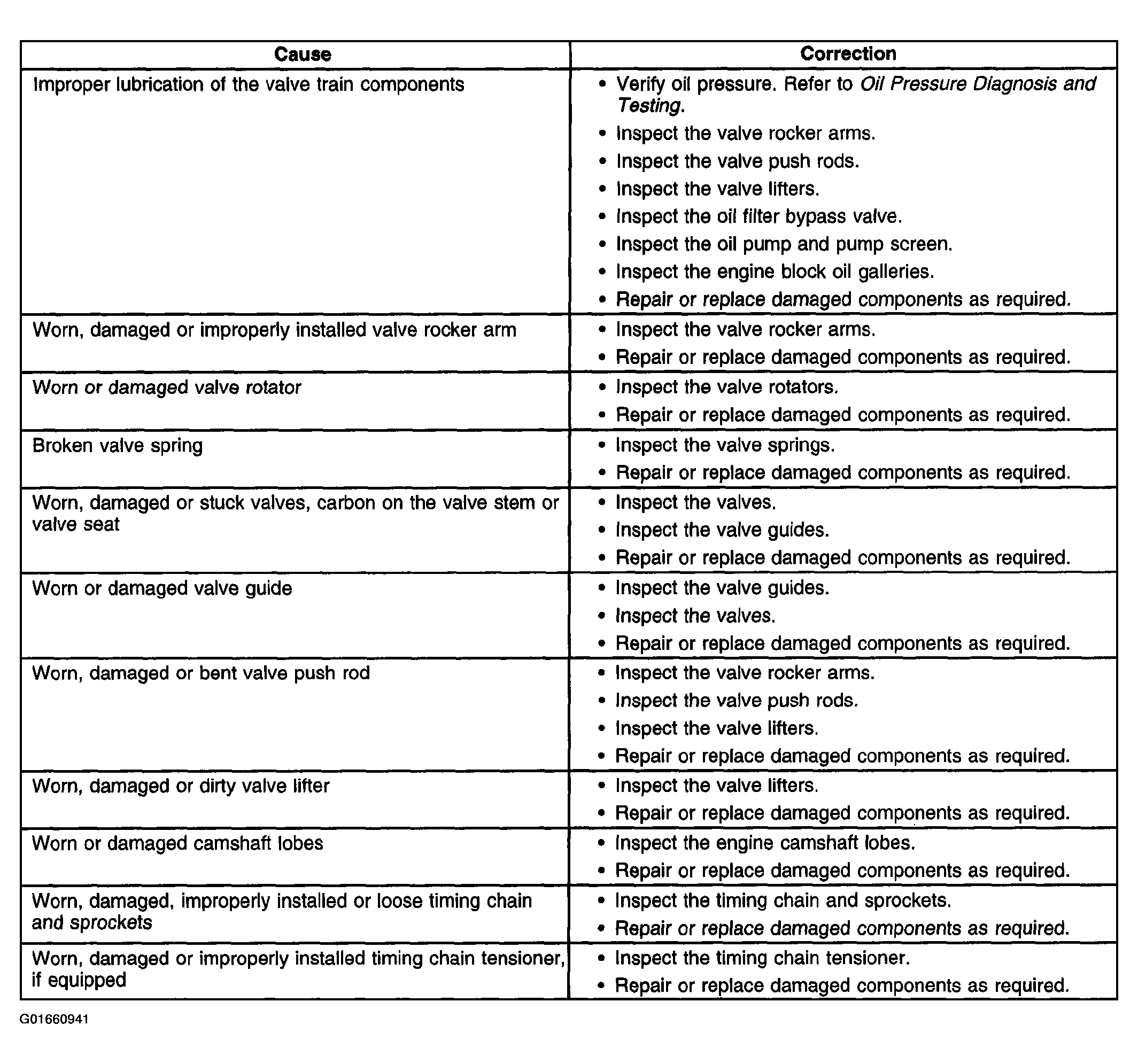

Fig 2: Upper Engine Noise, Regardless Of Engine Speed (2 Of 2)
G01660941Courtesy of GENERAL MOTORS CORP.
