Lower Engine Noise, Regardless of Engine Speed

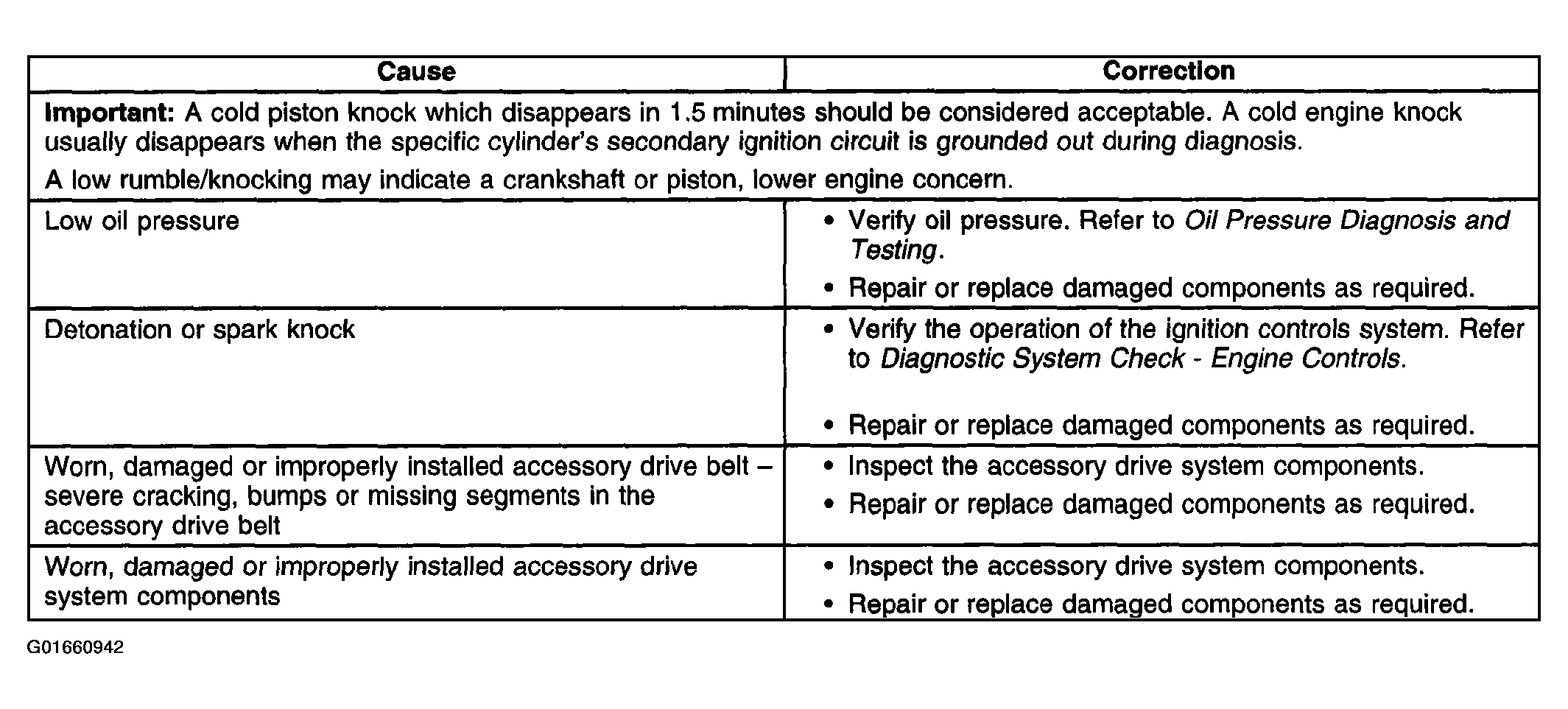

Fig 1: Lower Engine Noise, Regardless Of Engine Speed (1 Of 2)
G01660942Courtesy of GENERAL MOTORS CORP.

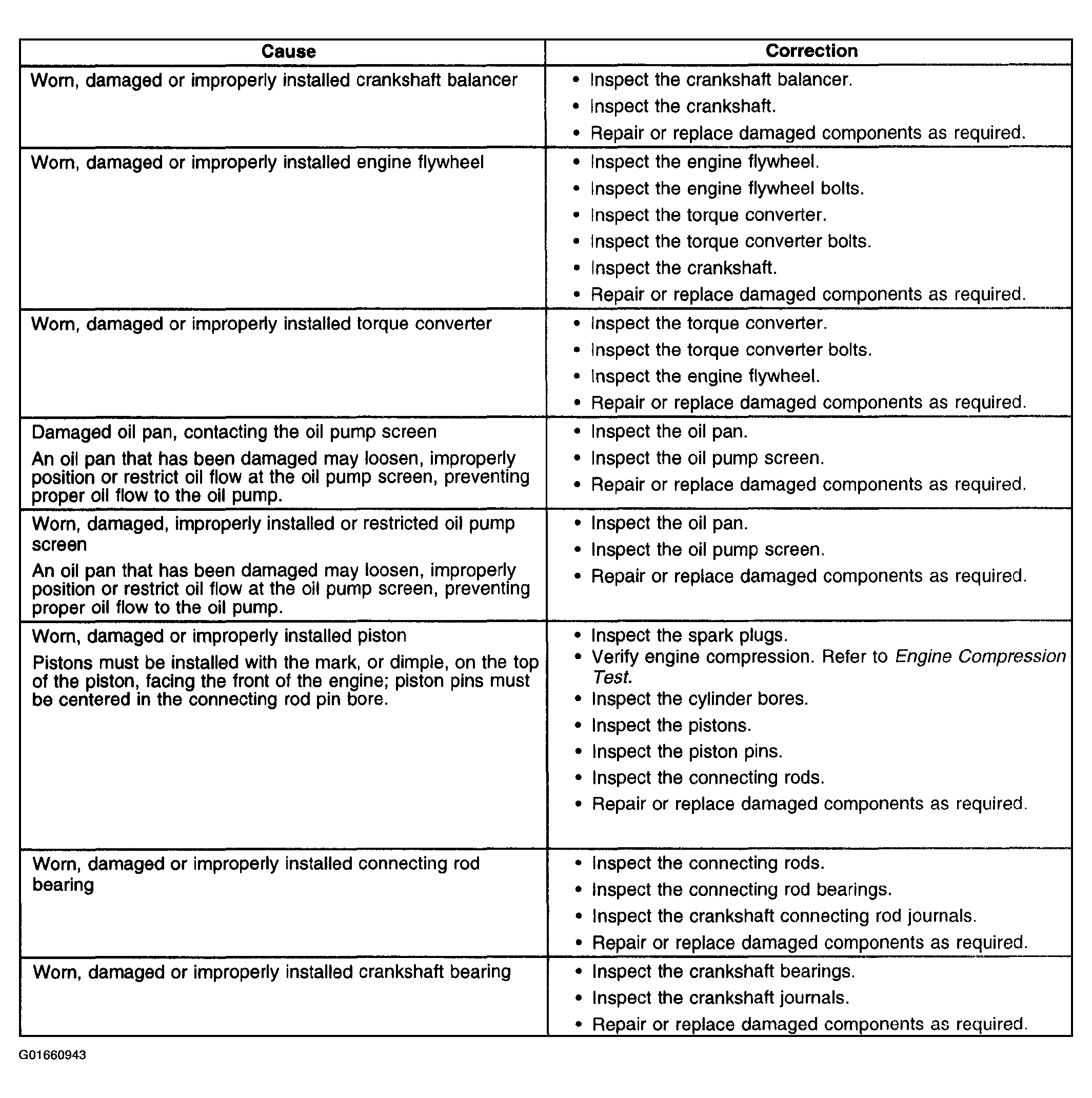

Fig 2: Lower Engine Noise, Regardless Of Engine Speed (2 Of 2)
G01660943Courtesy of GENERAL MOTORS CORP.
