Engine Noise Under Load

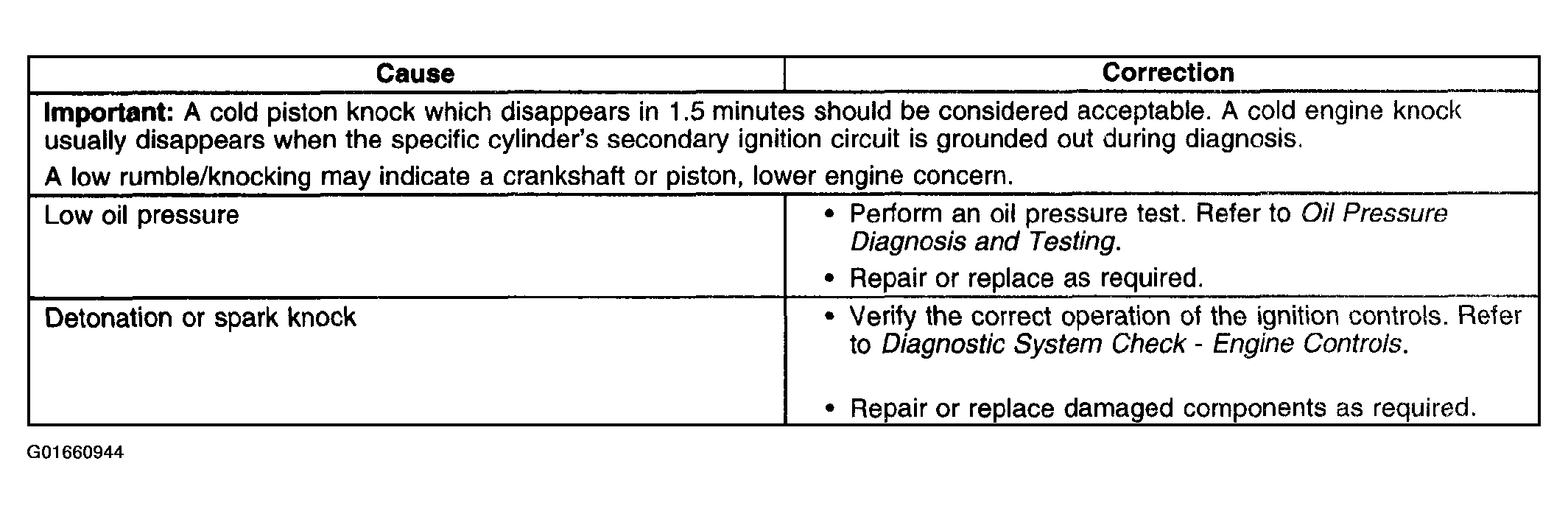

Fig 1: Engine Noise Under Load (1 Of 2)
G01660944Courtesy of GENERAL MOTORS CORP.

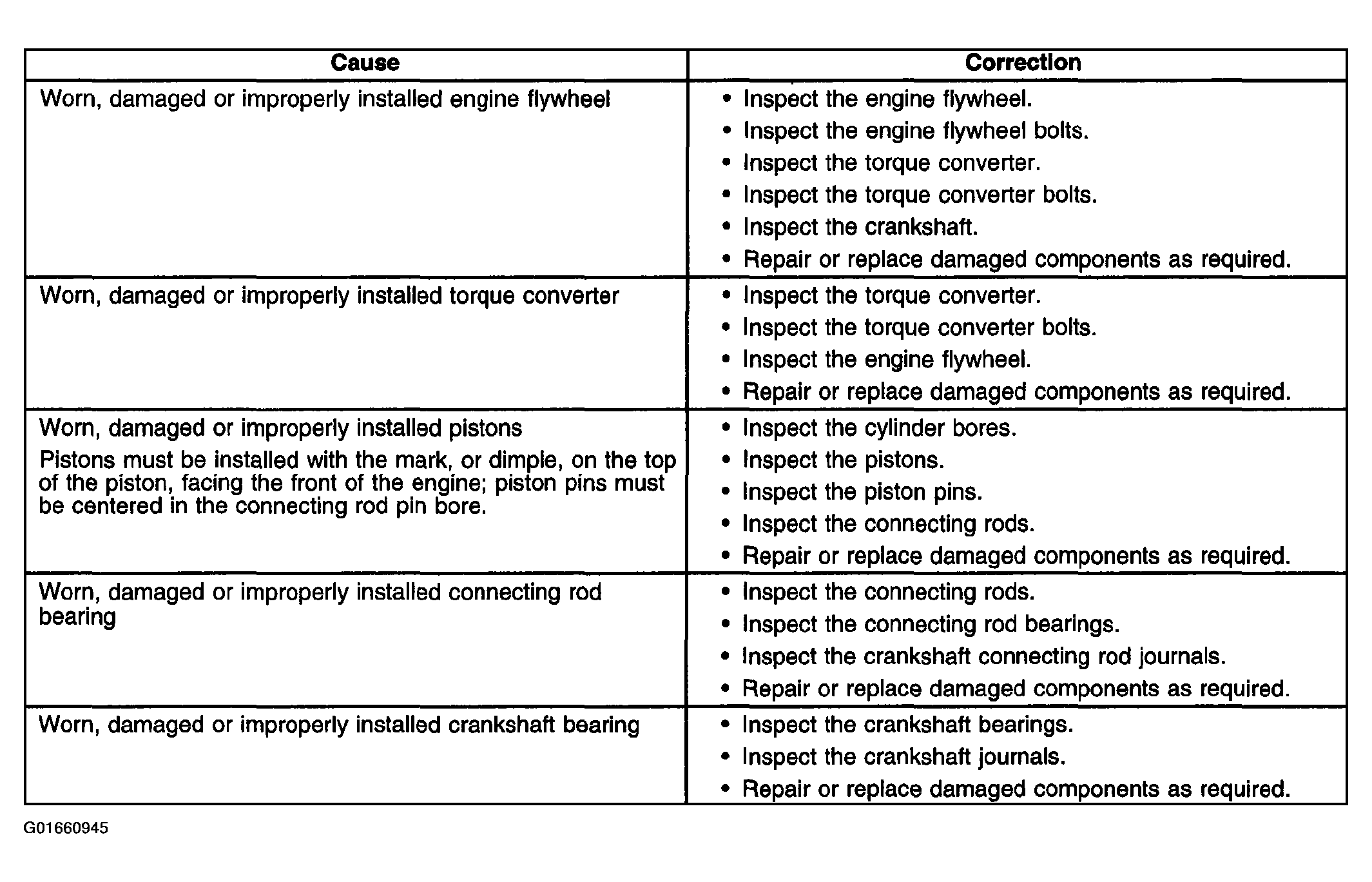

Fig 2: Engine Noise Under Load (2 Of 2)
G01660945Courtesy of GENERAL MOTORS CORP.
