Base Engine Misfire with Excessive Oil Consumption

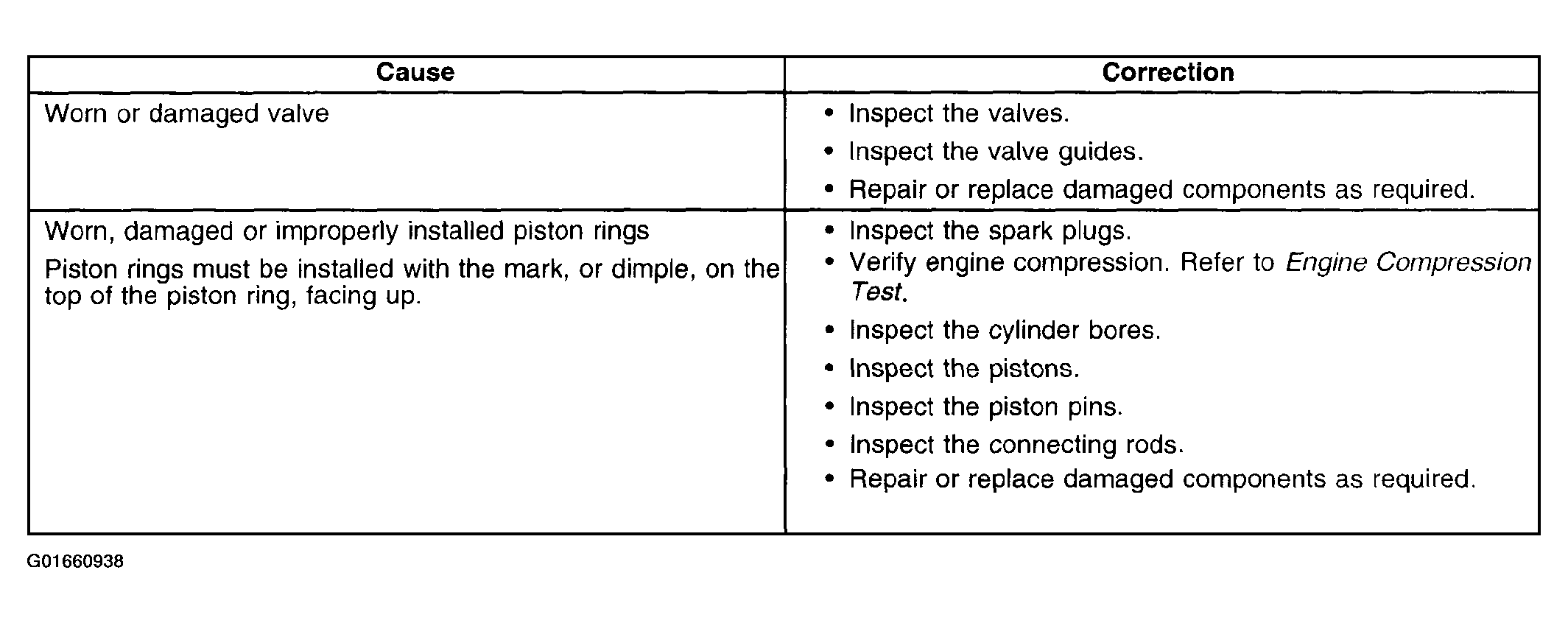

Fig 1: Base Engine Misfire With Excessive Oil Consumption

G01660938

Courtesy of GENERAL MOTORS CORP.
