Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the catalytic converter to muffler flange nuts.
    3. Fig 1: Catalytic Converter To Muffler Flange Nuts
    G01660216Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the insulator from the tail pipe hanger.
    4. Fig 2: Insulator From Tail Pipe Hanger
    G01660217Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the insulators from the muffler hanger (4-door utilities).

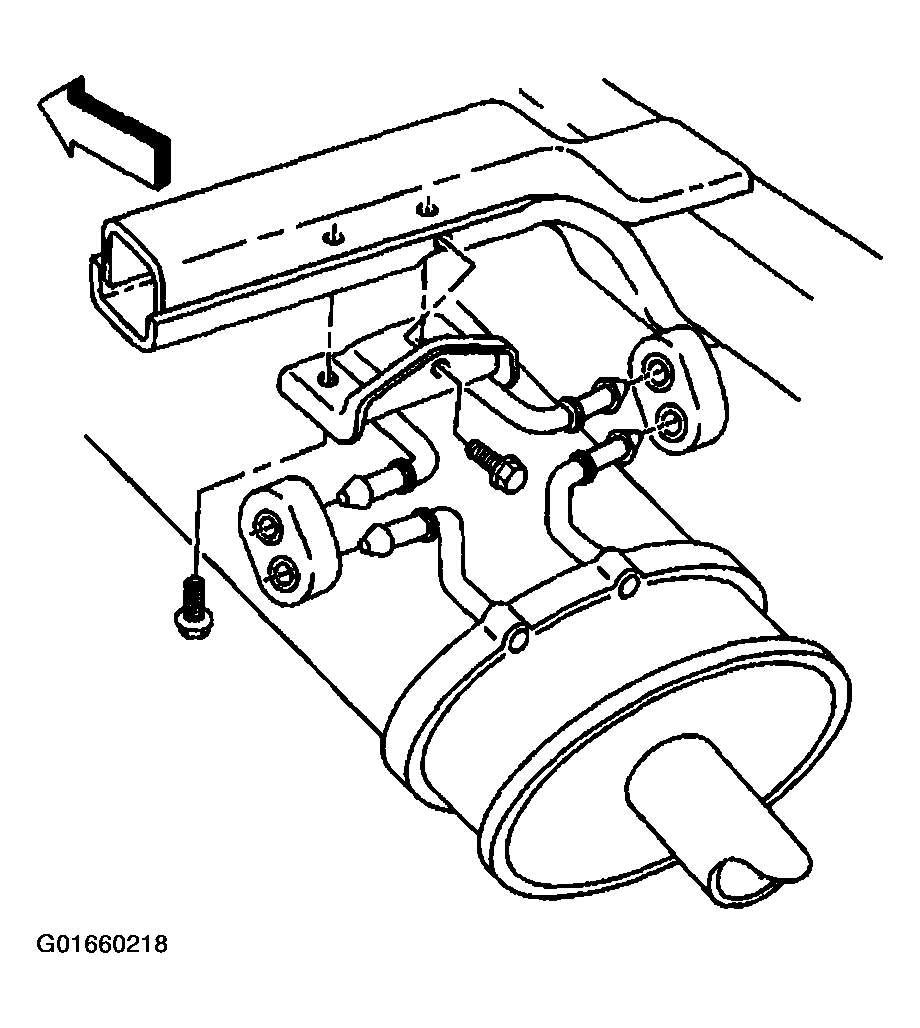

    5. Fig 3: Insulators From Muffler Hanger
    G01660218Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the insulator from the muffler and tail pipe hanger.
    6. Fig 4: Insulator From Muffler And Tail Pipe Hanger
    G01660219Courtesy of GENERAL MOTORS CORP.
  6. Remove the muffler from the vehicle.
