Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the catalytic converter to muffler flange nuts.
    3. Fig 1: Catalytic Converter To Muffler Flange Nuts
    G01660204Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the insulator from the tail pipe hanger.

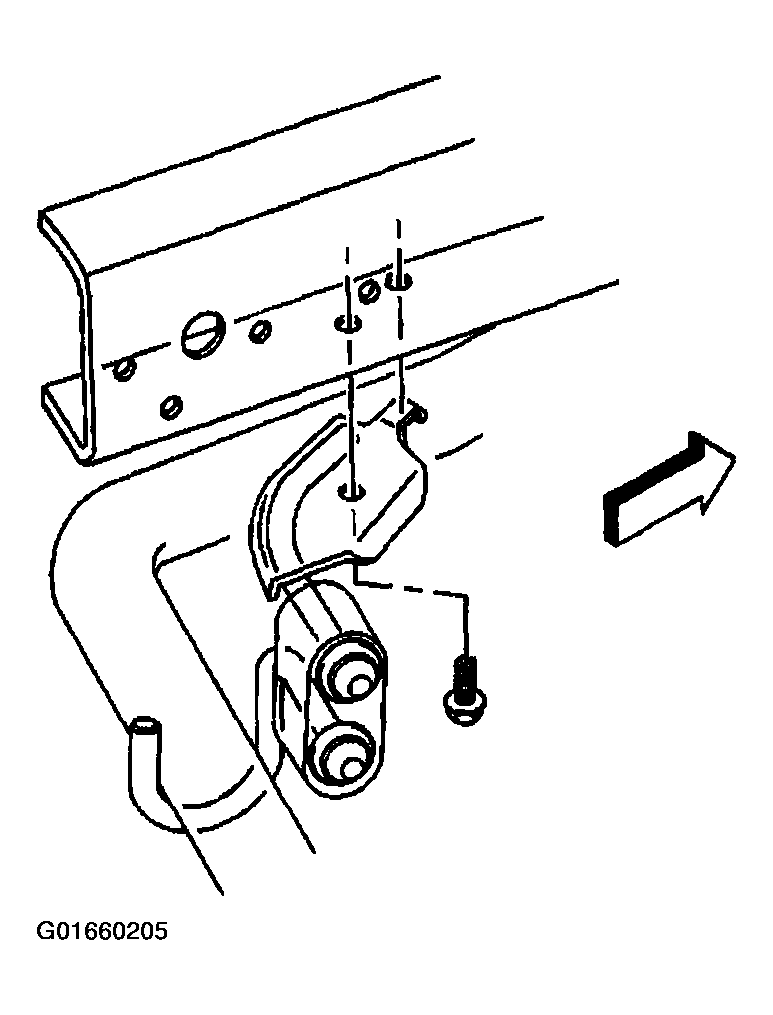

    4. Fig 2: Insulator From Tail Pipe Hanger
    G01660205Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the insulator from the muffler and tail pipe hanger.

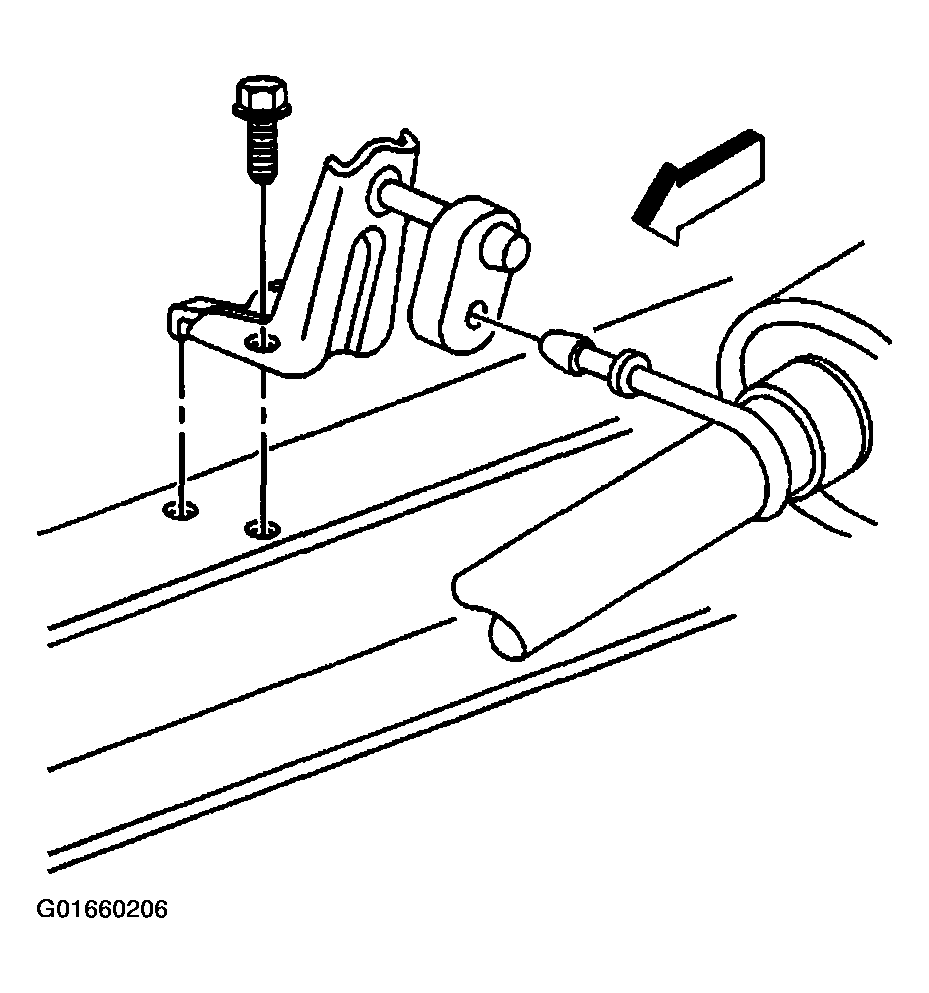

    5. Fig 3: Insulator From Muffler And Tail Pipe Hanger
    G01660206Courtesy of GENERAL MOTORS CORP.
  5. Remove the muffler and gasket from the vehicle.
