Removal Procedure

WARNING: Always wear protective goggles and gloves when removing exhaust parts as falling rust and sharp edges from worn exhaust components could result in serious personal injury.

NOTE: When jacking or lifting the vehicle from the frame side rails, be certain lift pads do not contact the three-way catalytic converter as damage to the converter will result.

NOTE: Replacement of exhaust system parts must be OEM standard to ensure that the vehicle operates as designed.

Raise and suitably support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
Disconnect the heated oxygen sensor (HO2S) electrical connection.

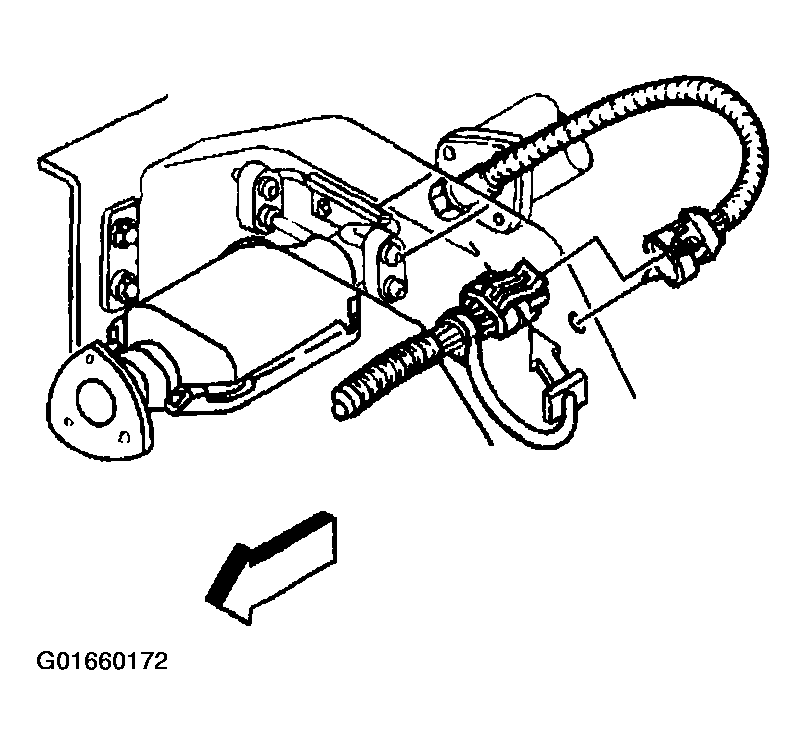

Fig 1: Heated Oxygen Sensor (HO2S) Electrical Connection

Courtesy of GENERAL MOTORS CORP.

Remove the catalytic converter to exhaust manifold pipe flange nuts.

Fig 2: Catalytic Converter To Exhaust Manifold Pipe Flange Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the muffler to the catalytic converter flange nuts.

Fig 3: Muffler To Catalytic Converter Flange Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the muffler from the catalytic converter.
Remove the catalytic converter from the catalytic converter hanger.

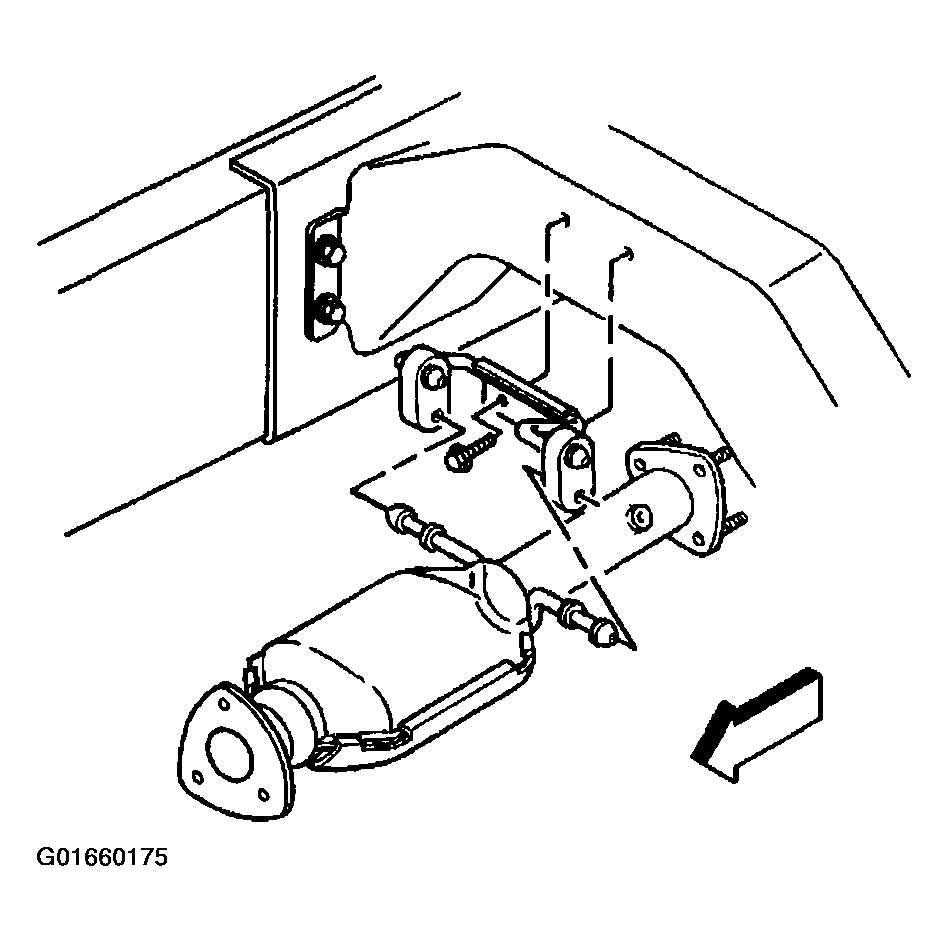

Fig 4: Catalytic Converter

Courtesy of GENERAL MOTORS CORP.

Remove the catalytic converter from the vehicle.
Remove the heated oxygen sensors (HO2S) as necessary.
