Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Engine Mechanical >> Engine Exhaust System >> Diagnostic Information and Procedures >> Exhaust Noise

Exhaust Noise

WARNING: While engine is operating, the exhaust system will become extremely hot. To prevent burns avoid contacting a hot exhaust system.

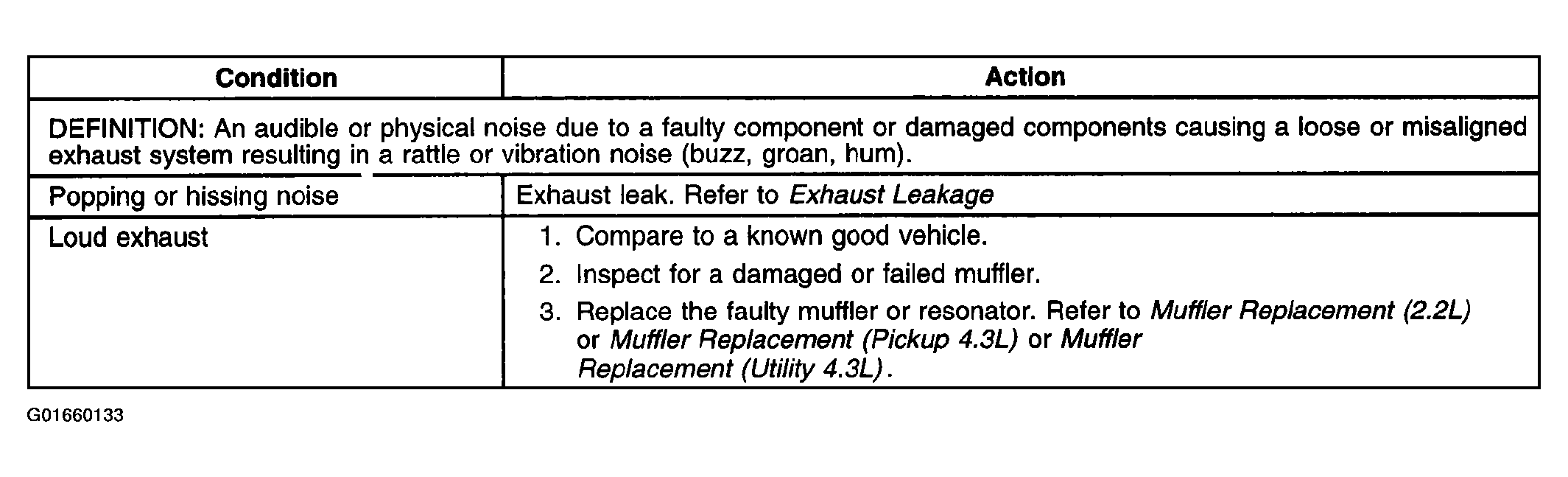

Fig 1: Exhaust Noise Chart (1 Of 2)
G01660133Courtesy of GENERAL MOTORS CORP.

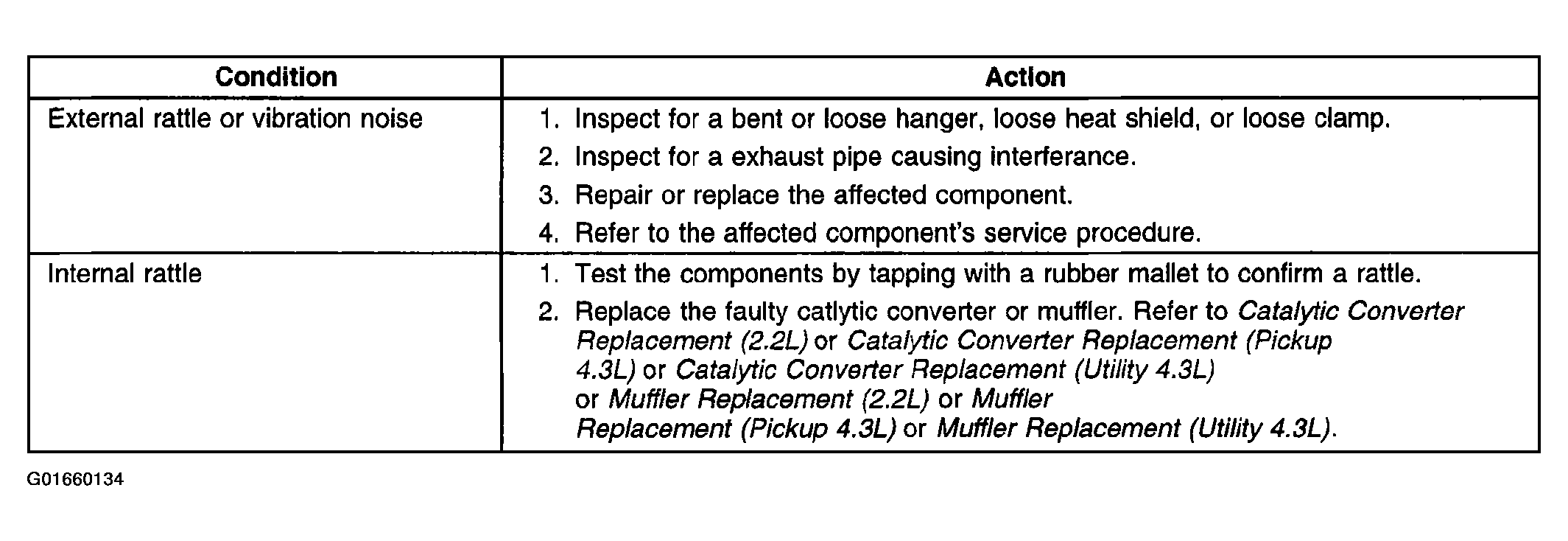

Fig 2: Exhaust Noise Chart (2 Of 2)
G01660134Courtesy of GENERAL MOTORS CORP.
