Exhaust Leakage

WARNING: While engine is operating, the exhaust system will become extremely hot. To prevent burns avoid contacting a hot exhaust system.

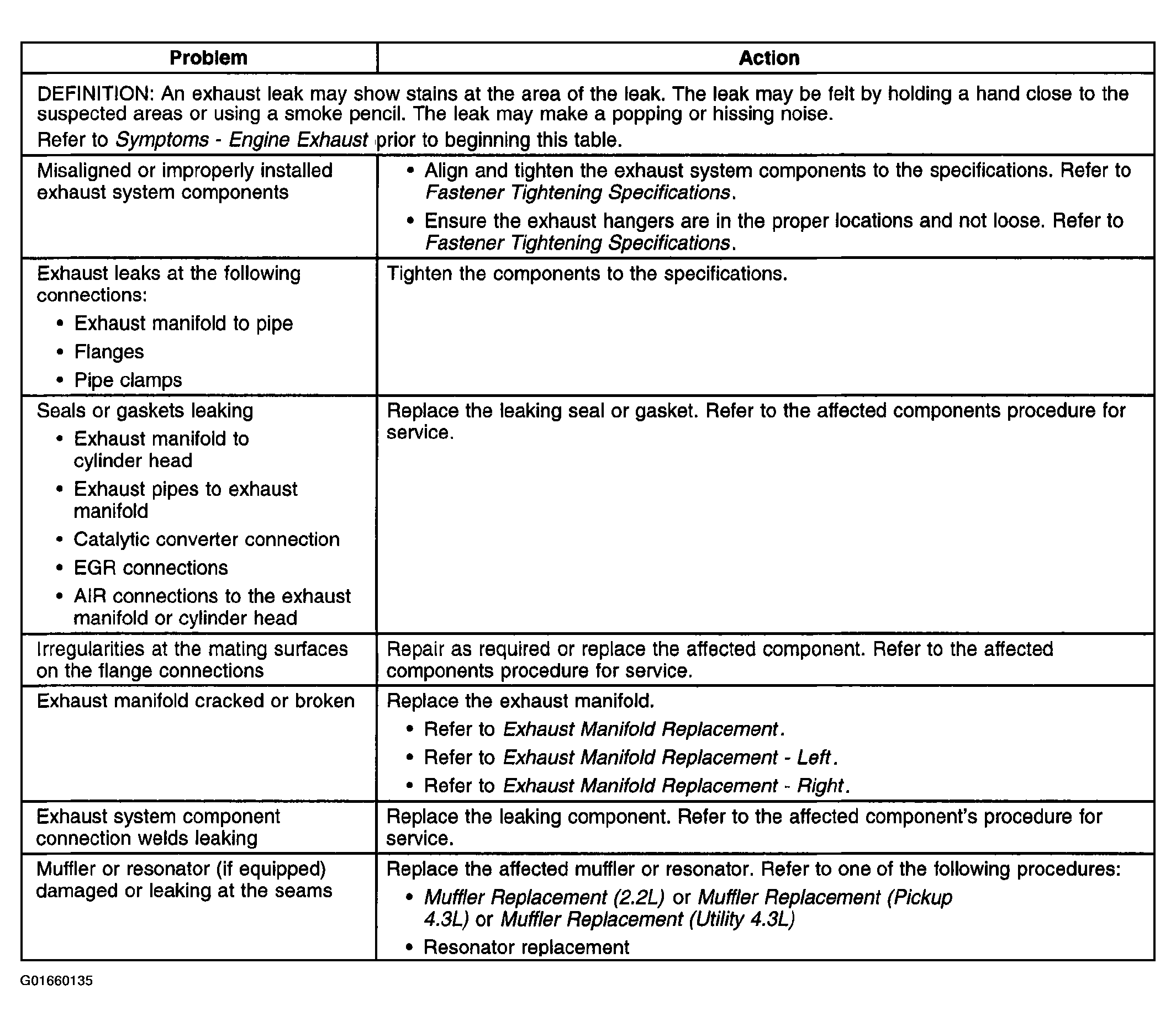

Fig 1: Exhaust Leakage Chart
G01660135Courtesy of GENERAL MOTORS CORP.
