Removal Procedure

  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Loosen the water pump pulley bolts.
  3. Remove the cooling fan and clutch assembly. Refer to Fan Clutch Replacement .
  4. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT .
  5. Remove the water pump pulley mounting bolts.
  6. Remove the water pump pulley.

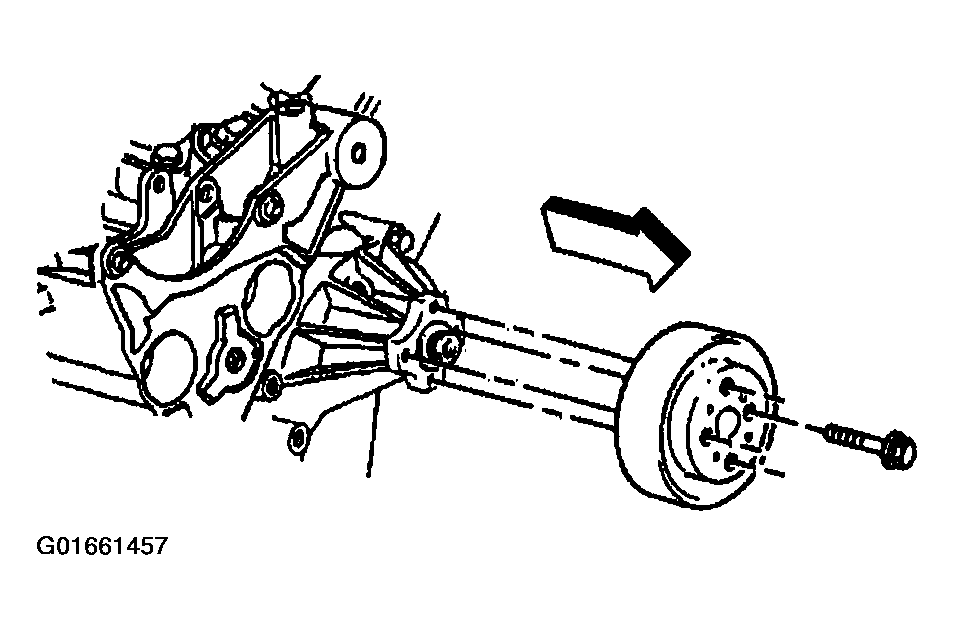

    Fig 1: Water Pump Pulley & Mounting Bolts (4.3L)
    G01661457Courtesy of GENERAL MOTORS CORP.
  7. Remove the radiator outlet hose clamp from the water pump.
  8. Remove radiator outlet hose from the water pump.

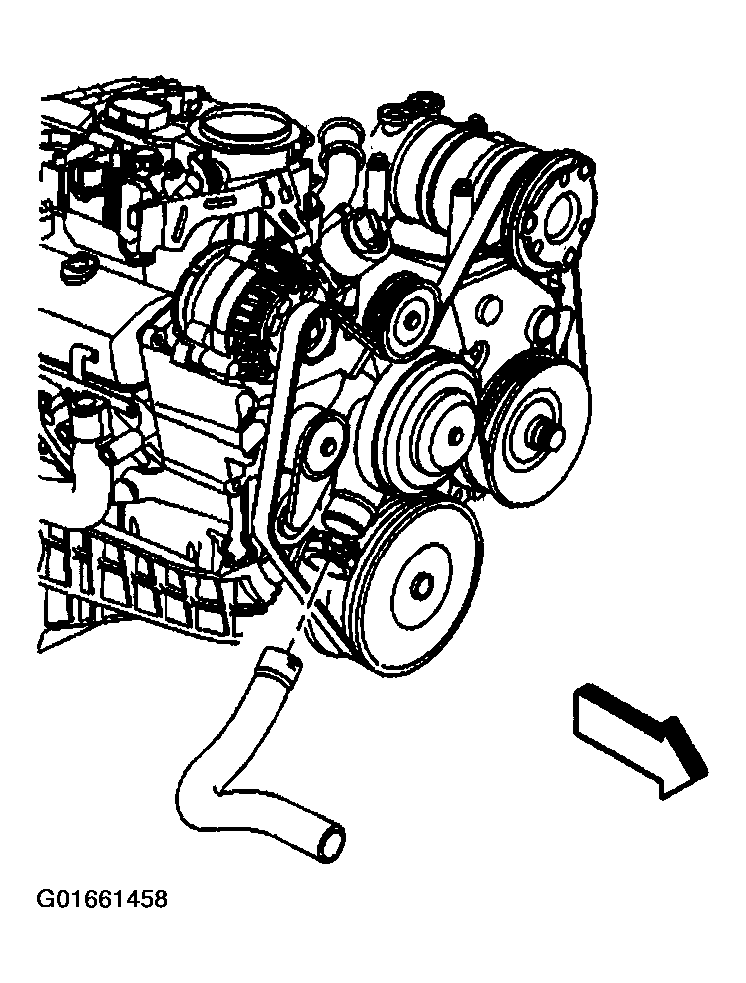

    Fig 2: Radiator Outlet Hose (4.3L)
    G01661458Courtesy of GENERAL MOTORS CORP.
  9. Remove the water pump mounting bolts.

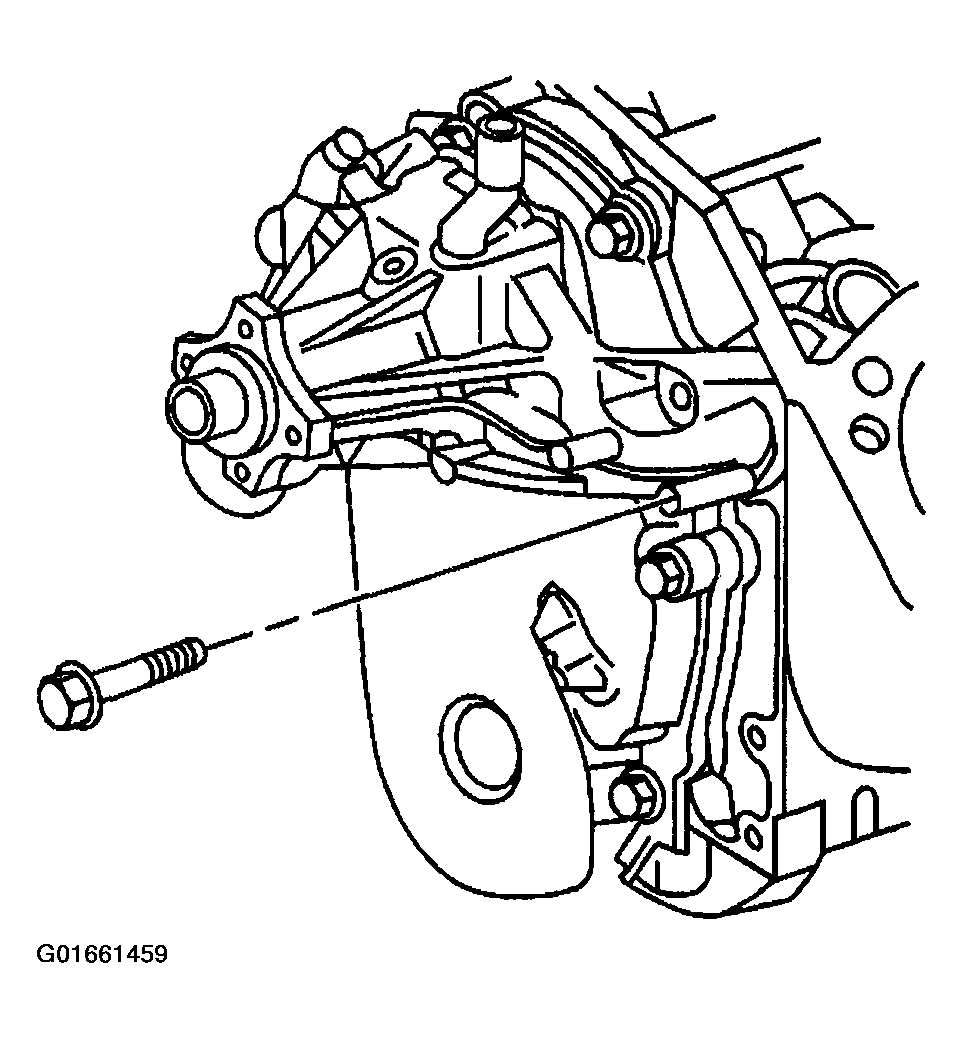

    Fig 3: Water Pump Mounting Bolts (4.3L)
    G01661459Courtesy of GENERAL MOTORS CORP.
  10. Remove the water pump from the engine.

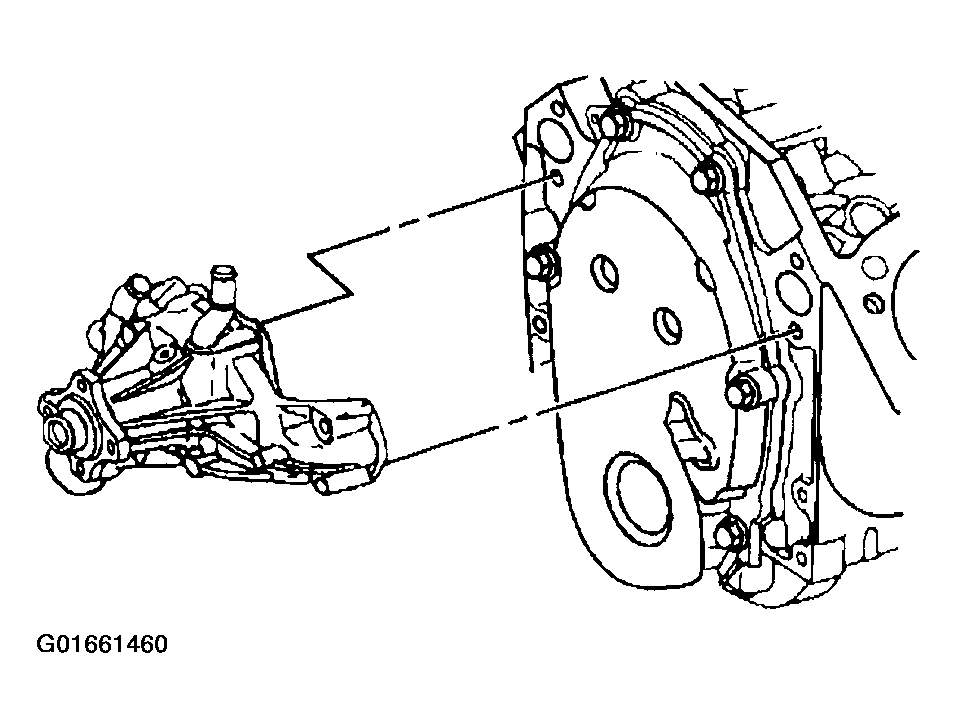

    Fig 4: Water Pump (4.3L)
    G01661460Courtesy of GENERAL MOTORS CORP.
  11. Remove the water pump gaskets.
  12. Clean the water pump gasket mating surfaces.

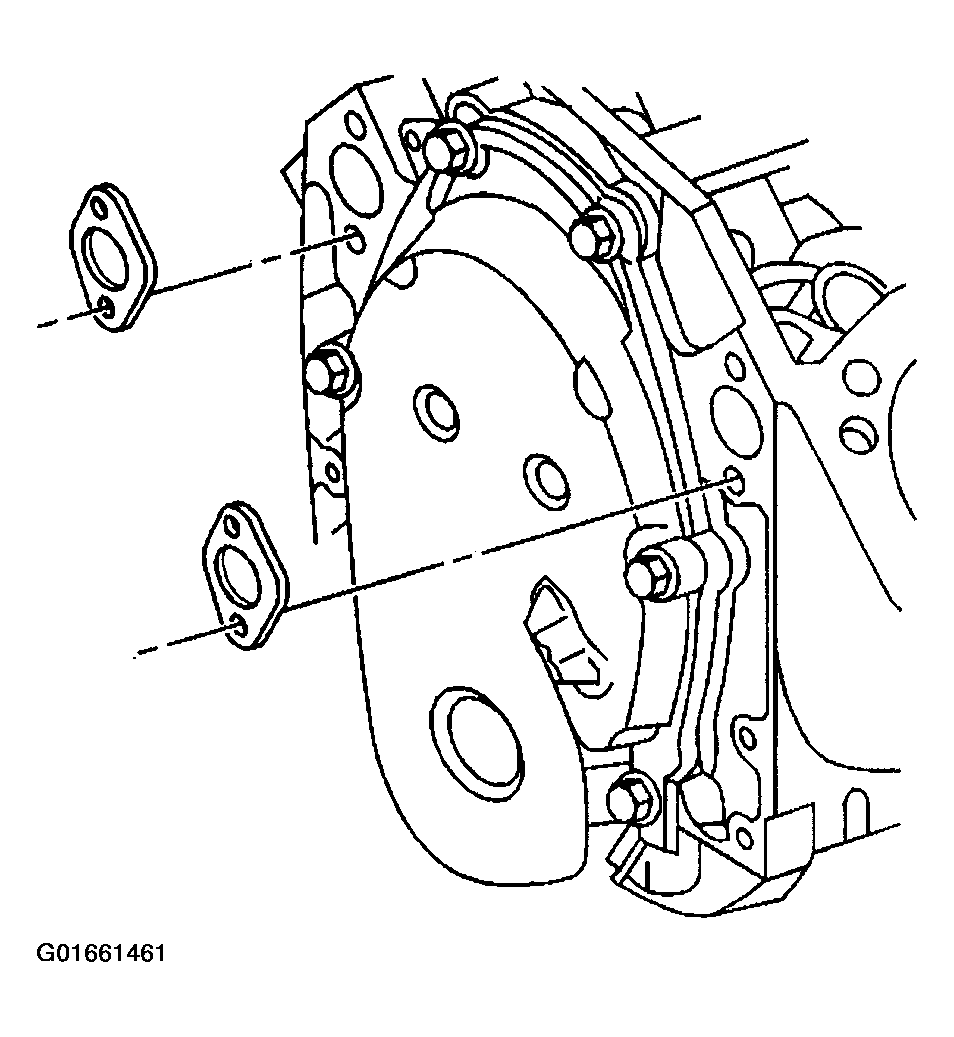

    Fig 5: Water Pump Gaskets (4.3L)
    G01661461Courtesy of GENERAL MOTORS CORP.
