Removal Procedure

  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the radiator outlet hose from the radiator.

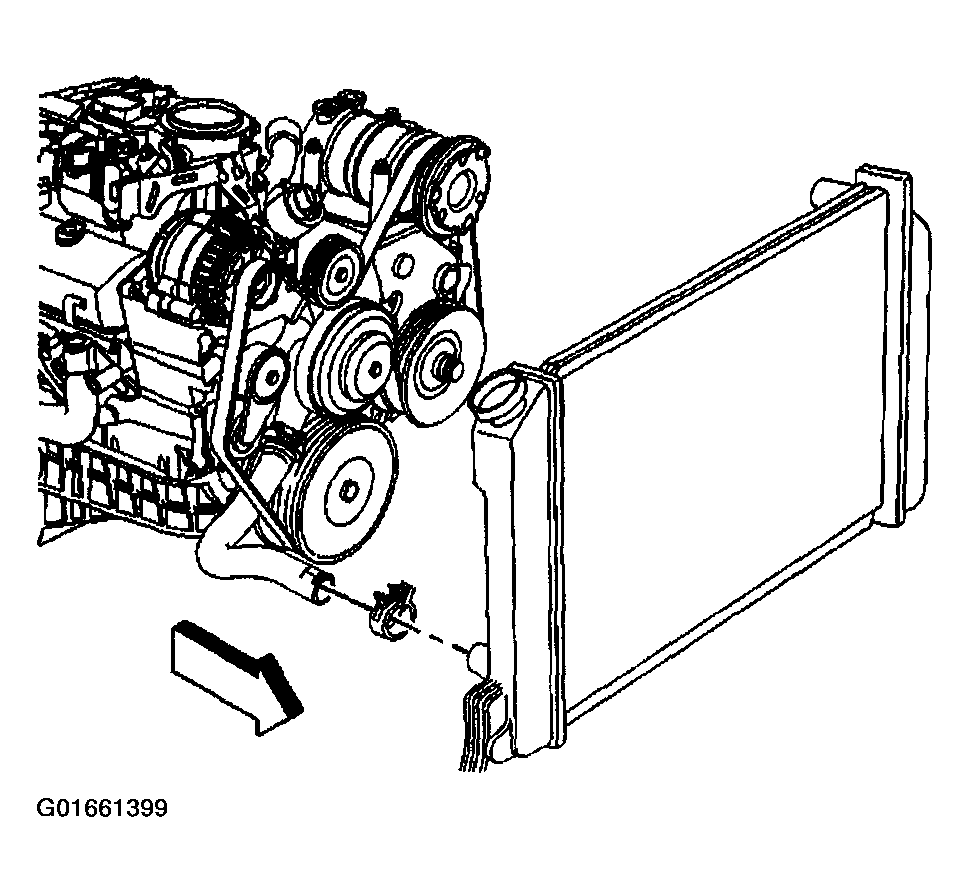

    Fig 1: Radiator Outlet Hose At Radiator (4.3L)
    G01661399Courtesy of GENERAL MOTORS CORP.
  3. Remove the radiator outlet hose from the water pump.
  4. Remove the radiator outlet hose.

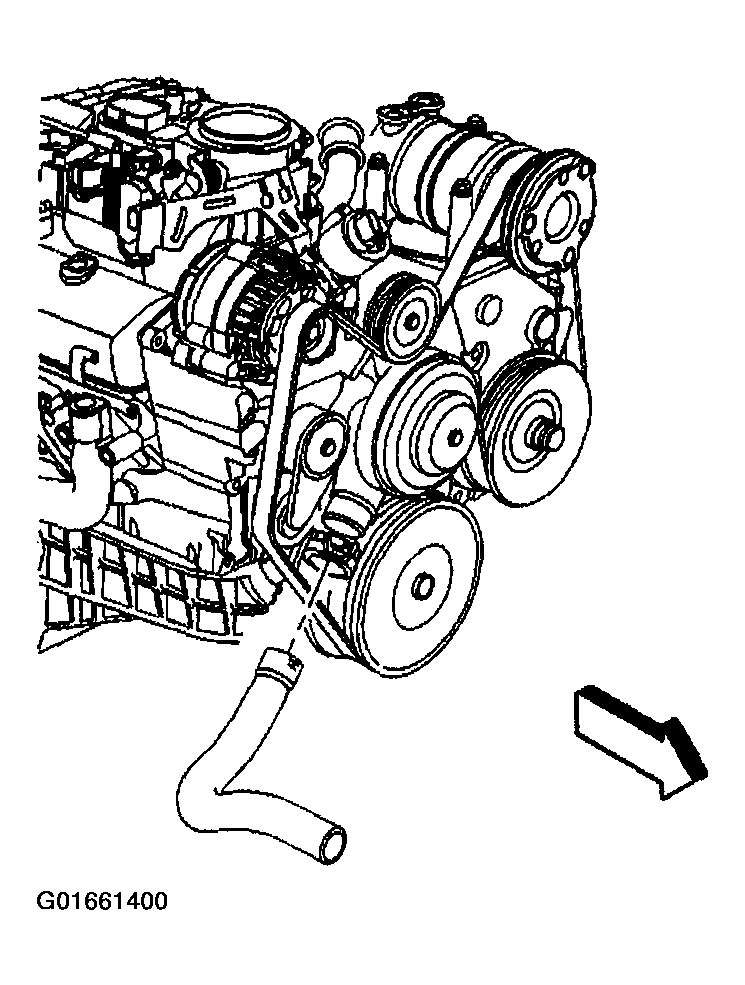

    Fig 2: Radiator Outlet Hose At Water Pump (4.3L)
    G01661400Courtesy of GENERAL MOTORS CORP.
