Installation Procedure

  1. Install the radiator outlet hose to the water pump.
  2. Install the radiator outlet hose clamp to the water pump

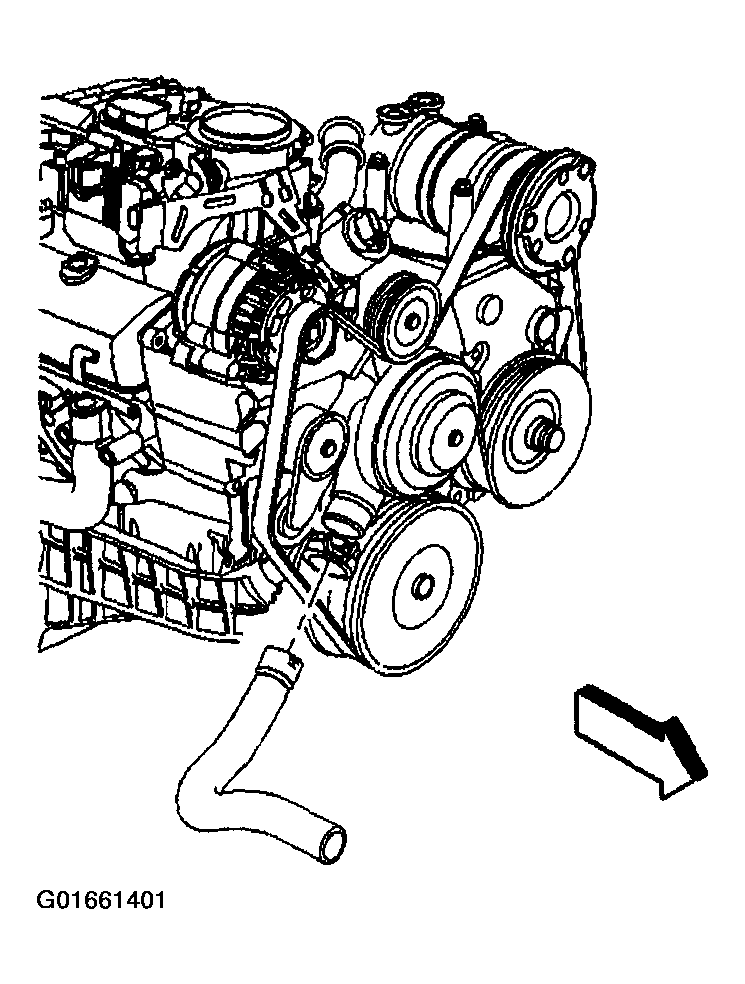

    Fig 1: Radiator Outlet Hose At Water Pump (4.3L)
    G01661401Courtesy of GENERAL MOTORS CORP.
  3. Connect the radiator outlet hose to the radiator.
  4. Install the radiator outlet hose clamp to the radiator.
  5. Fill the cooling system. Refer to Draining and Filling Cooling System .
  6. Inspect the cooling system for leaks.

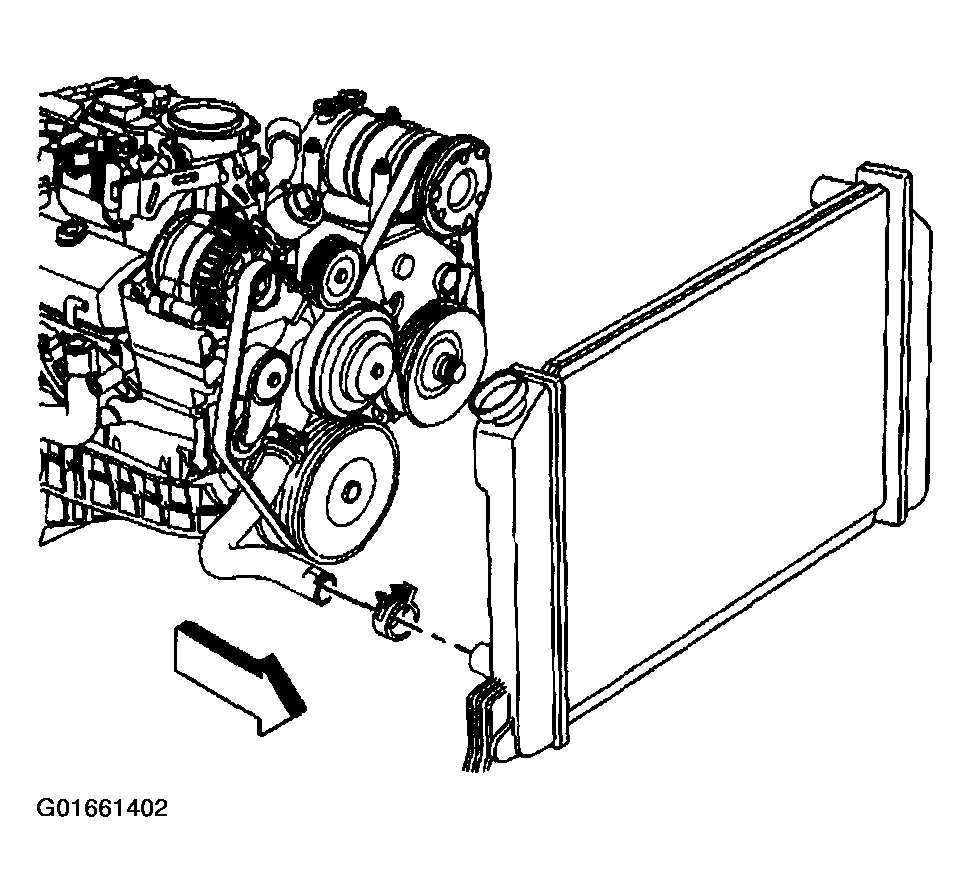

    Fig 2: Radiator Outlet Hose At Radiator (4.3L)
    G01661402Courtesy of GENERAL MOTORS CORP.
