Removal Procedure

  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the radiator outlet hose clamp from the radiator.
  3. Remove the radiator outlet hose from the radiator.
  4. Remove the radiator outlet hose clamp from the water pump.

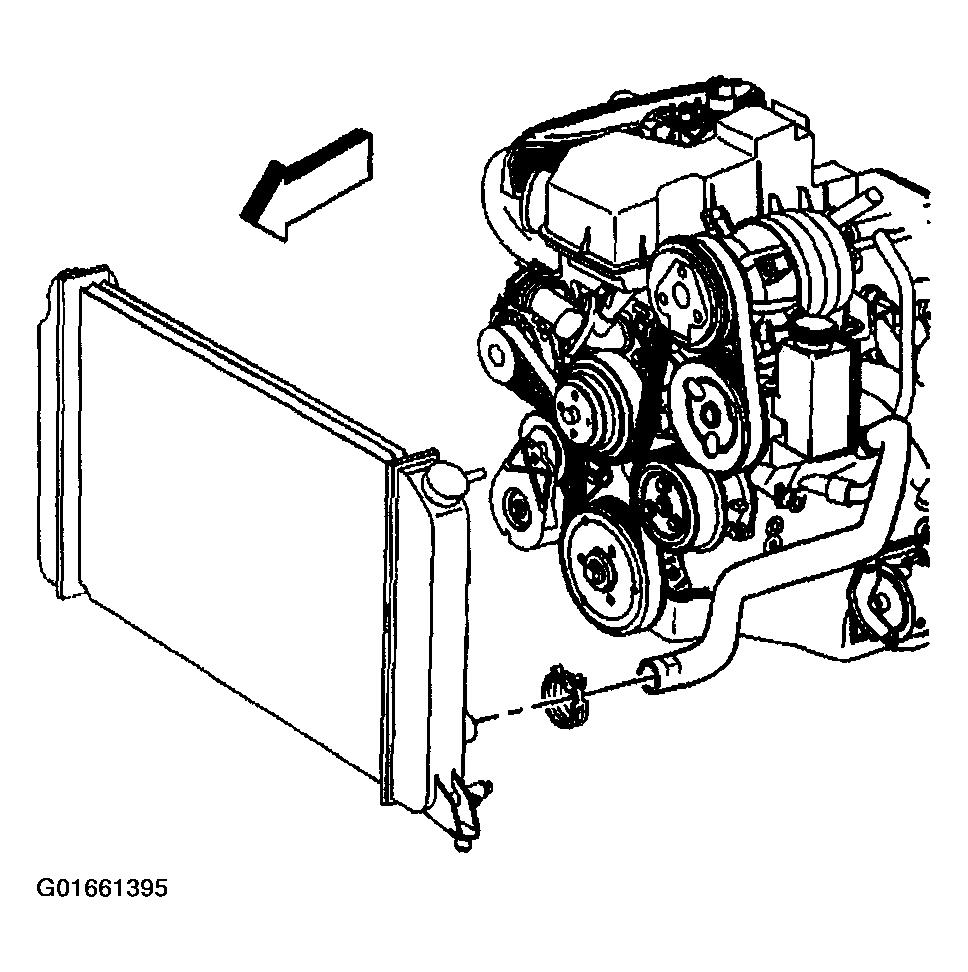

    Fig 1: Radiator Outlet Hose At Radiator (2.2L)
    G01661395Courtesy of GENERAL MOTORS CORP.
  5. Remove the radiator outlet hose from the water pump.
  6. Remove the radiator outlet hose.

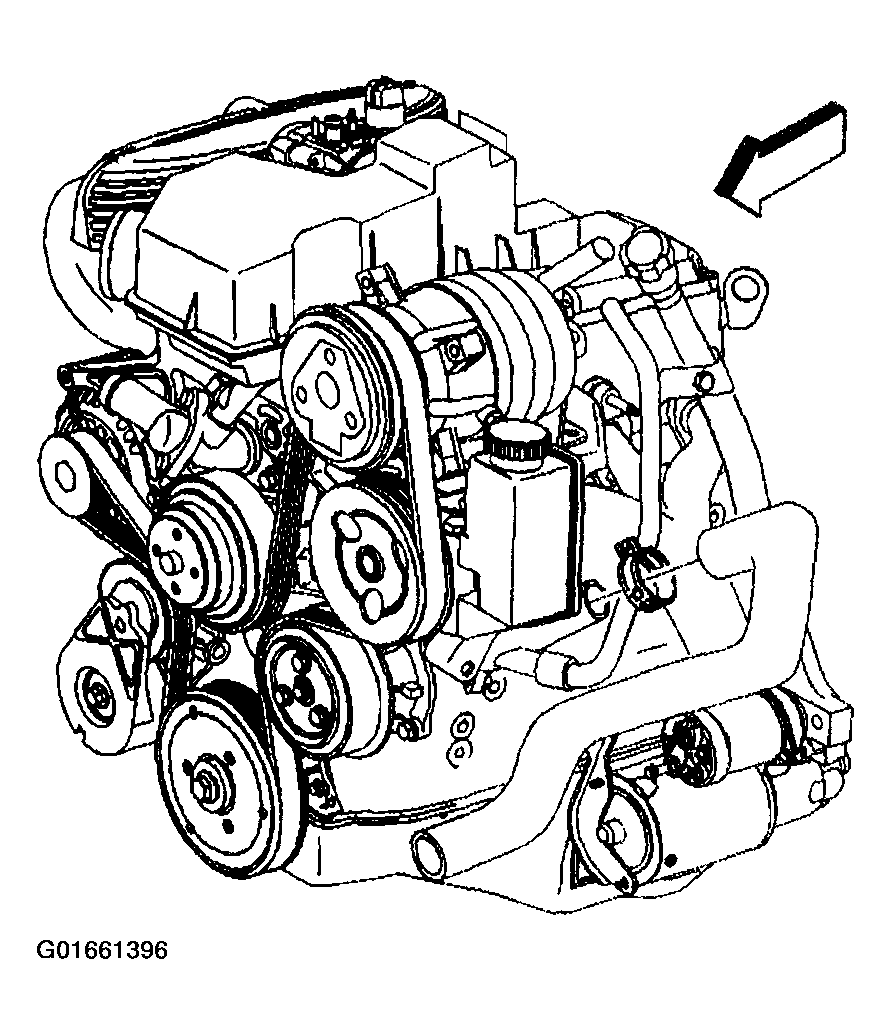

    Fig 2: Radiator Outlet Hose At Water Pump (2.2L)
    G01661396Courtesy of GENERAL MOTORS CORP.
