Installation Procedure

  1. Install the radiator outlet hose to the water pump.
  2. Install the radiator outlet hose clamp to the water pump.

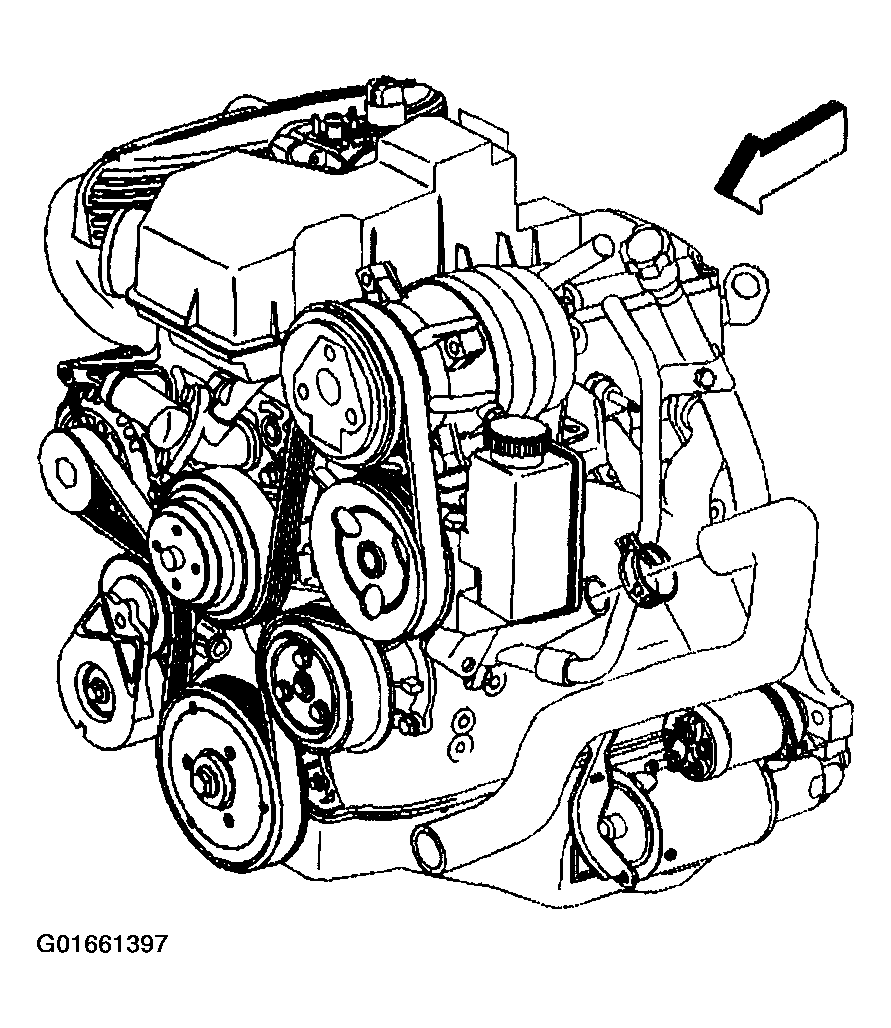

    Fig 1: Radiator Outlet Hose At Water Pump (2.2L)
    G01661397Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator outlet hose to the radiator.
  4. Install the radiator outlet hose clamp to the radiator
  5. Fill the cooling system. Refer to Draining and Filling Cooling System .
  6. Inspect the cooling system for leaks.

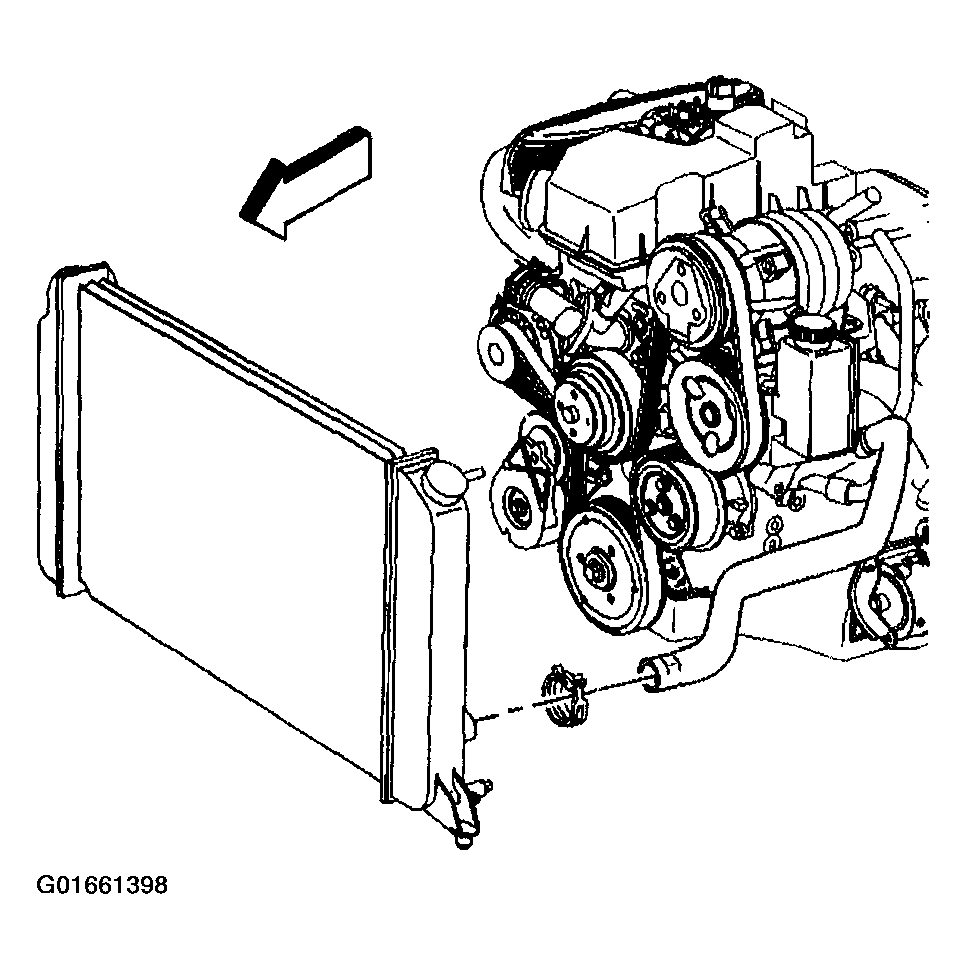

    Fig 2: Radiator Outlet Hose At Radiator (2.2L)
    G01661398Courtesy of GENERAL MOTORS CORP.
