Installation Procedure

  1. Install the radiator inlet hose to the coolant outlet.
  2. Install the radiator inlet hose clamp to the coolant outlet.

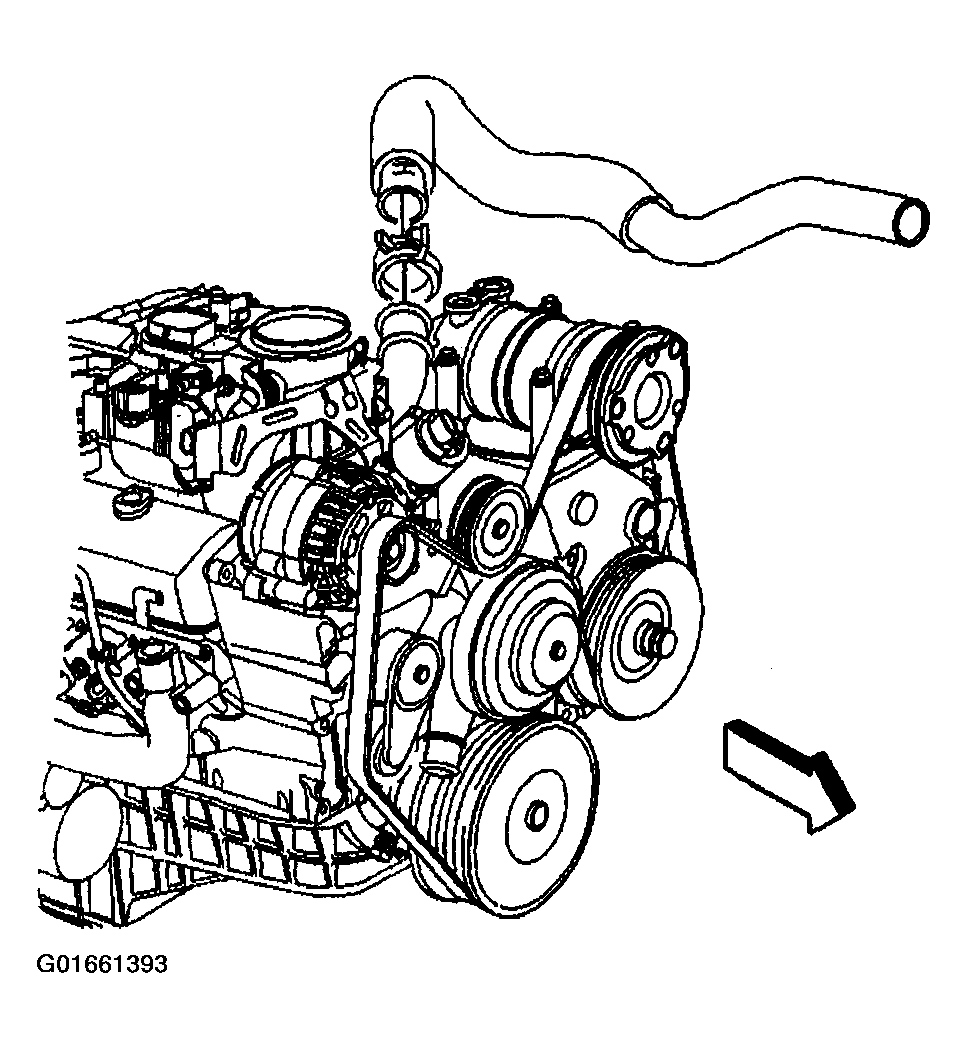

    Fig 1: Radiator Inlet Hose At Coolant Outlet (4.3L)
    G01661393Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator inlet hose to the radiator.
  4. Install the radiator inlet hose clamp to the radiator.
  5. Install the radiator inlet hose to the support.
  6. Install the air cleaner outlet duct.
  7. Fill the cooling system. Refer to Draining and Filling Cooling System .
  8. Inspect the cooling system for leaks.

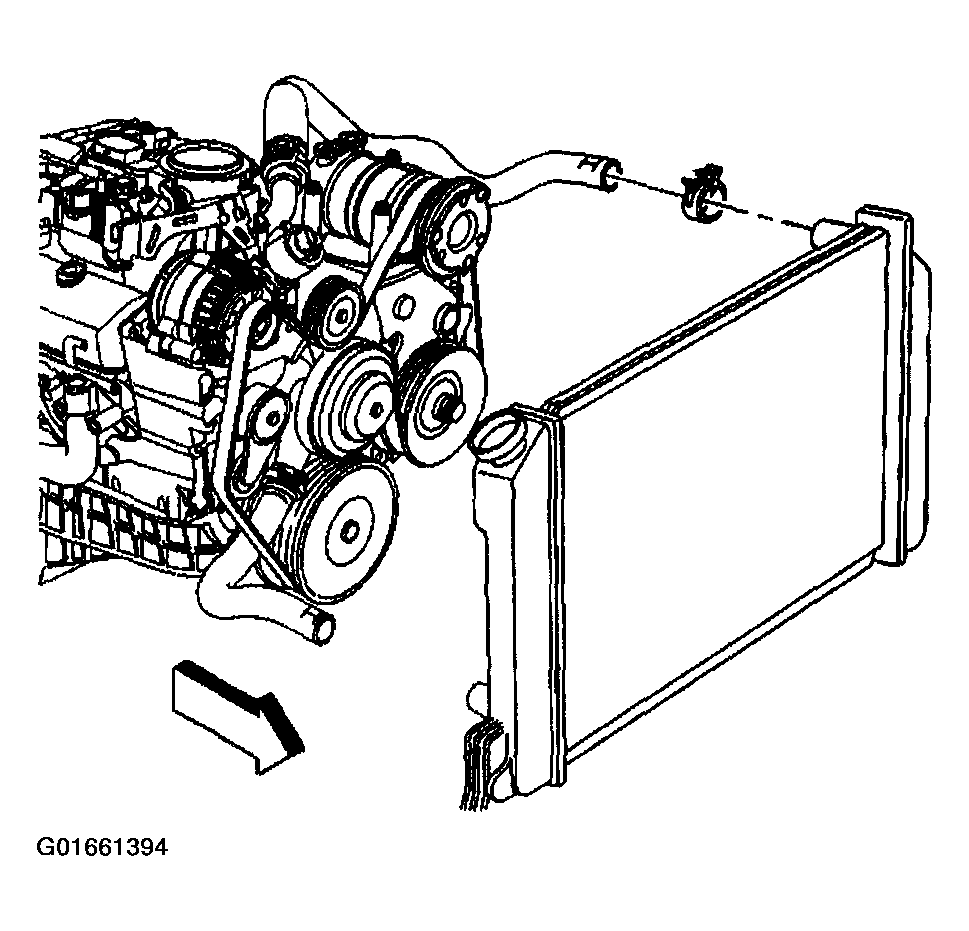

    Fig 2: Radiator Inlet Hose At Radiator (4.3L)
    G01661394Courtesy of GENERAL MOTORS CORP.
