Removal Procedure

  1. Partially drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the air cleaner outlet resonator.
  3. Remove the radiator inlet hose from the support.
  4. Remove the radiator inlet hose clamp from radiator.
  5. Remove the radiator inlet hose from the radiator.
  6. Remove the radiator inlet hose clamp from the coolant outlet.

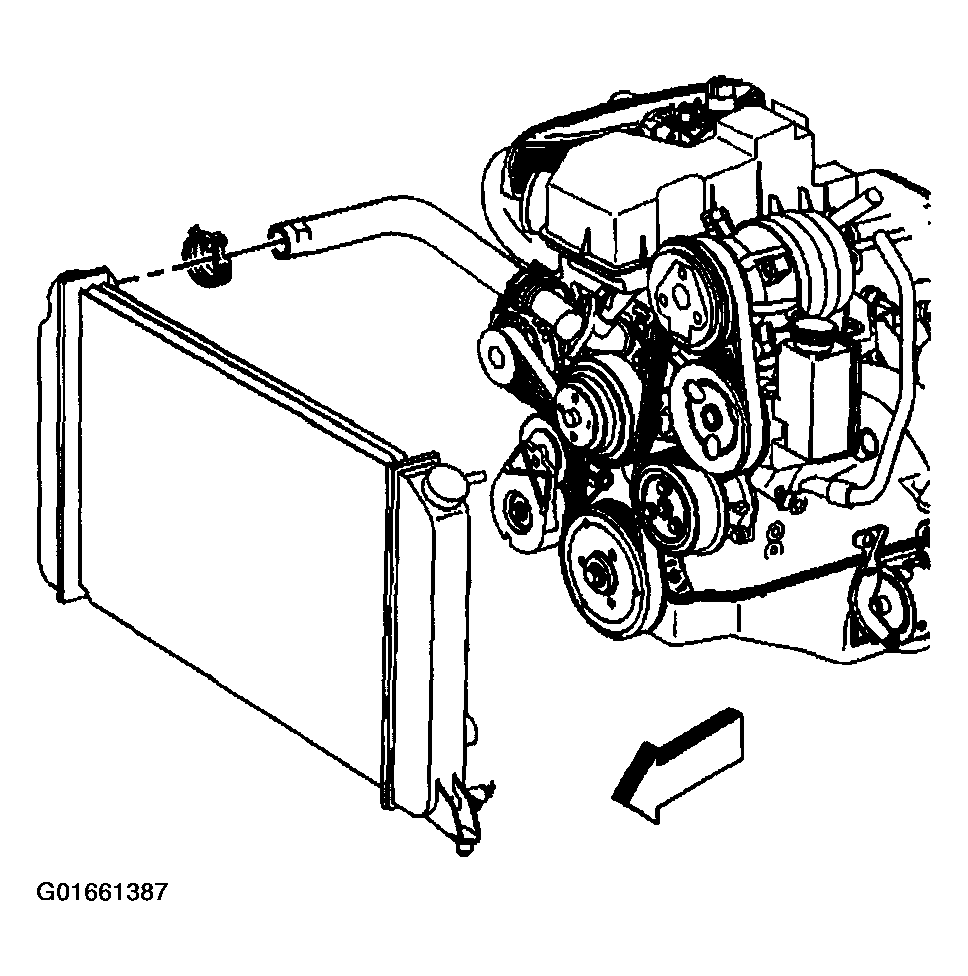

    Fig 1: Radiator Inlet Hose At Radiator (2.2L)
    G01661387Courtesy of GENERAL MOTORS CORP.
  7. Remove the radiator inlet hose from the coolant outlet.
  8. Remove the radiator inlet hose.

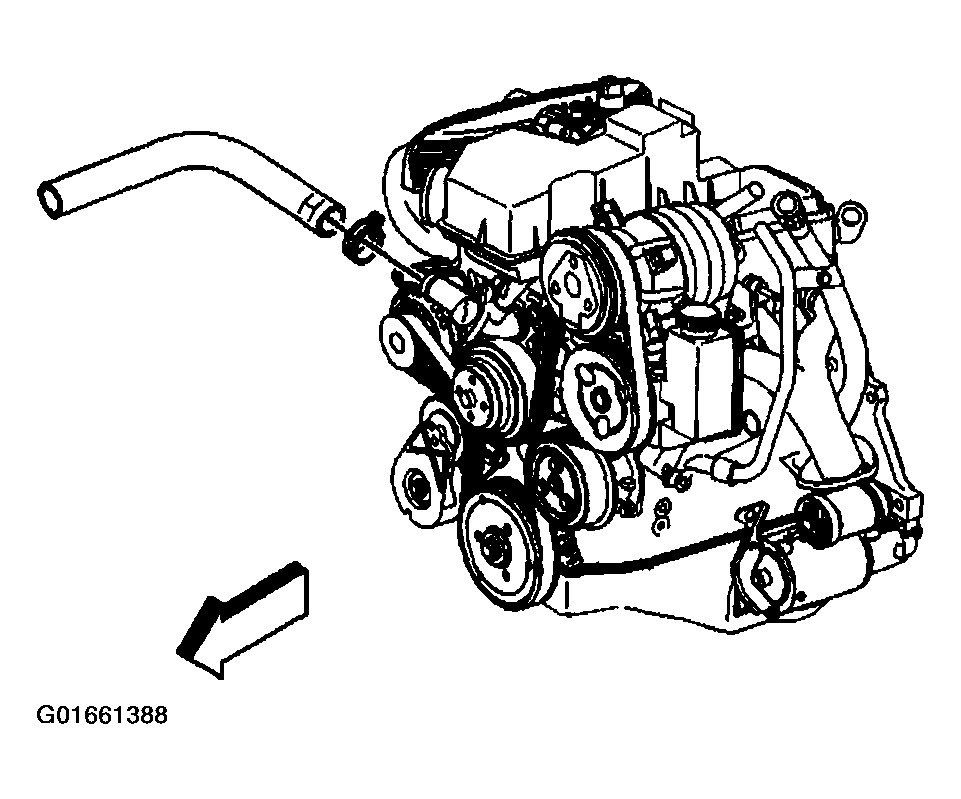

    Fig 2: Radiator Inlet Hose At Coolant Outlet (2.2L)
    G01661388Courtesy of GENERAL MOTORS CORP.
