Installation Procedure

  1. Install the radiator inlet hose clamp to the coolant outlet.

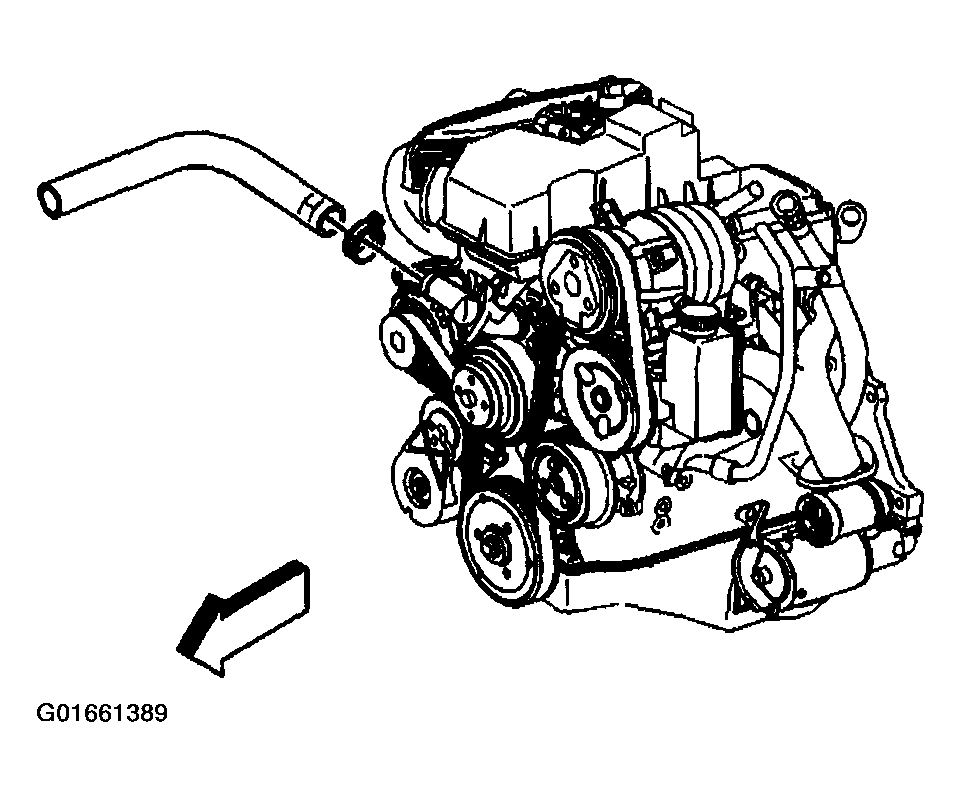

    Fig 1: Radiator Inlet Hose At Coolant Outlet (2.2L)
    G01661389Courtesy of GENERAL MOTORS CORP.
  2. Install the radiator inlet hose clamp to the radiator.
  3. Install the radiator inlet hose to the support.
  4. Fill the cooling system. Refer to Draining and Filling Cooling System .
  5. Install the air cleaner outlet resonator.
  6. Inspect the cooling system for leaks.

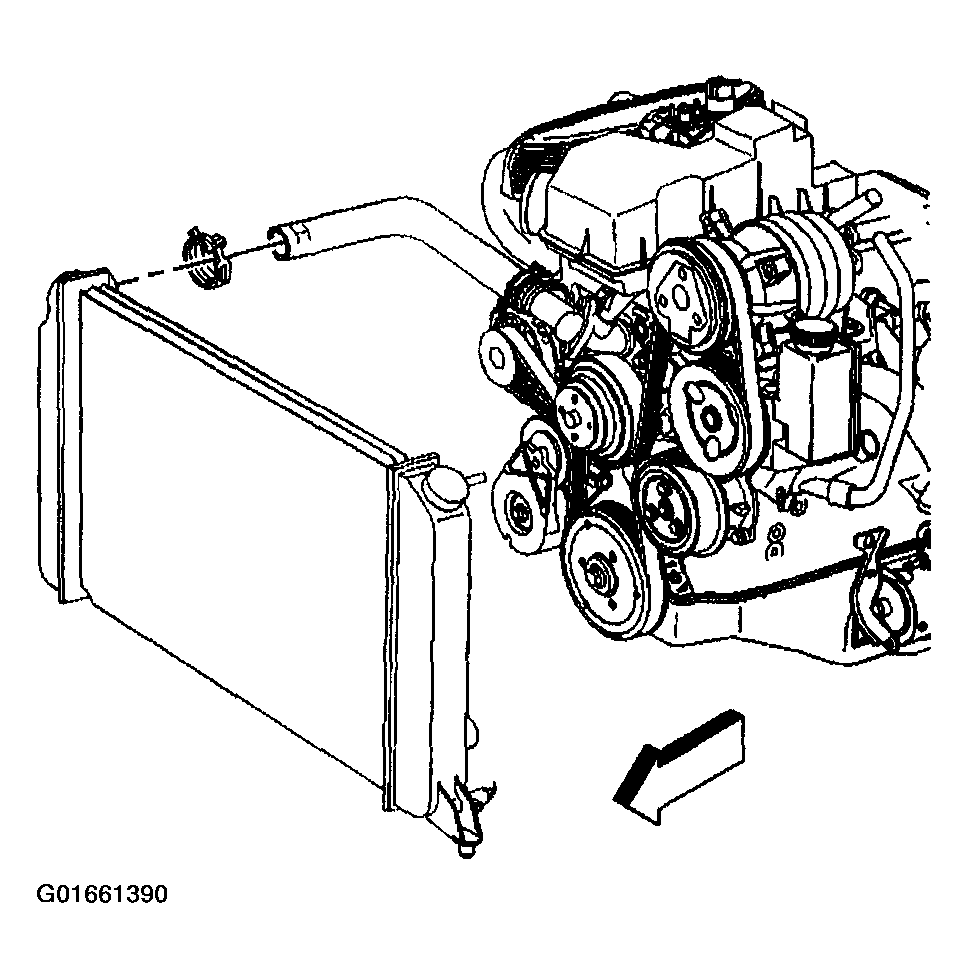

    Fig 2: Radiator Inlet Hose At Radiator (2.2L)
    G01661390Courtesy of GENERAL MOTORS CORP.
