Removal Procedure

  1. If equipped with the 2.2L, remove the air intake duct assembly:
    1. 1.1. Loosen the air duct clamps.
    2. 1.2. Remove the air duct rivets (2).
    3. 1.3. Remove the intake duct assembly (1) from the fan shroud (3).

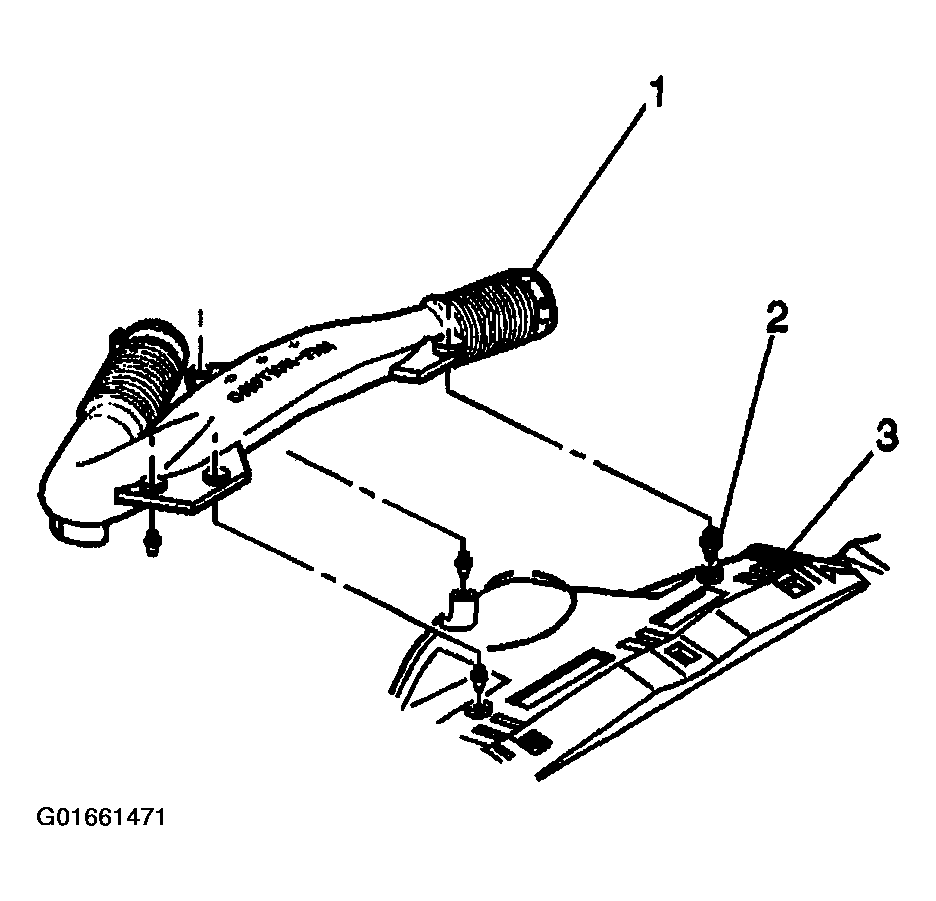

    Fig 1: Air Intake Duct Assembly (2.2L)
    G01661471Courtesy of GENERAL MOTORS CORP.
  2. Remove the upper fan shroud screws.

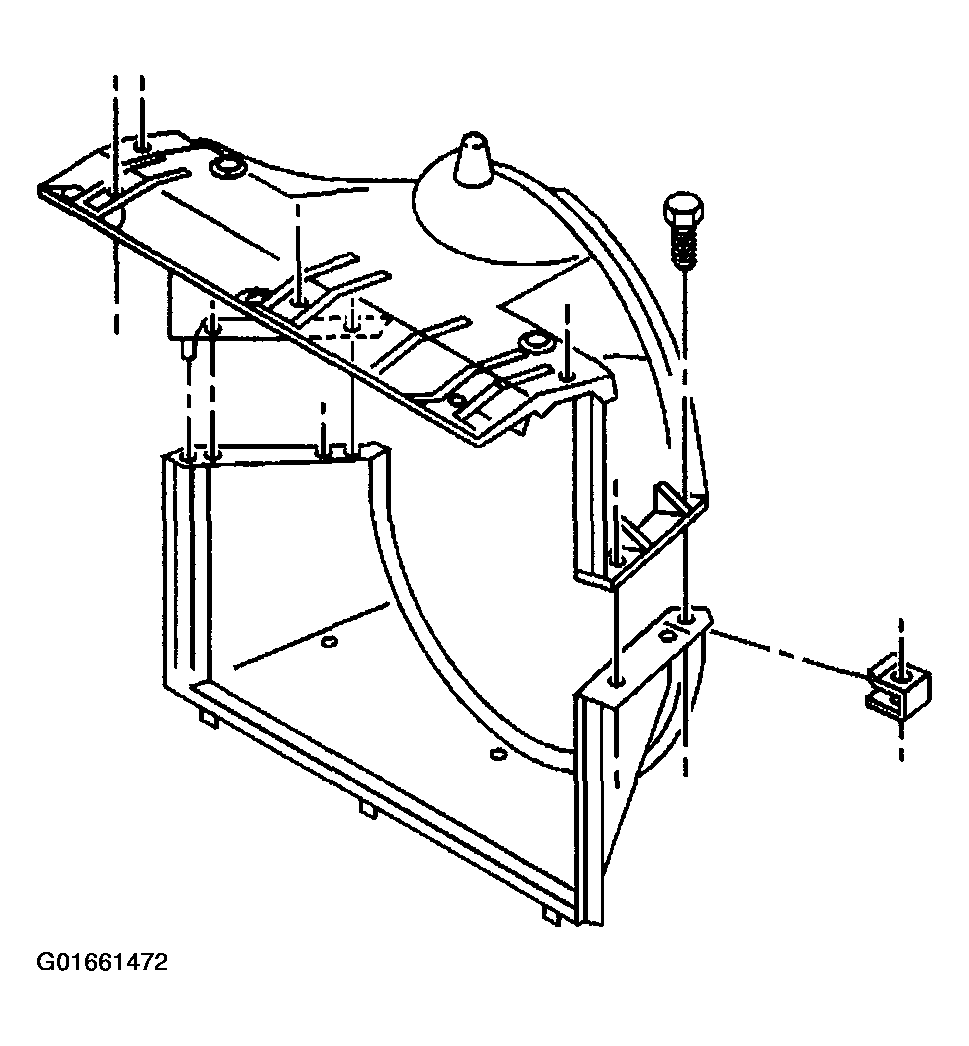

    Fig 2: Upper Fan Shroud Screws
    G01661472Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the coolant recovery reservoir hose from the lower fan shroud.
  4. Remove the upper fan shroud.

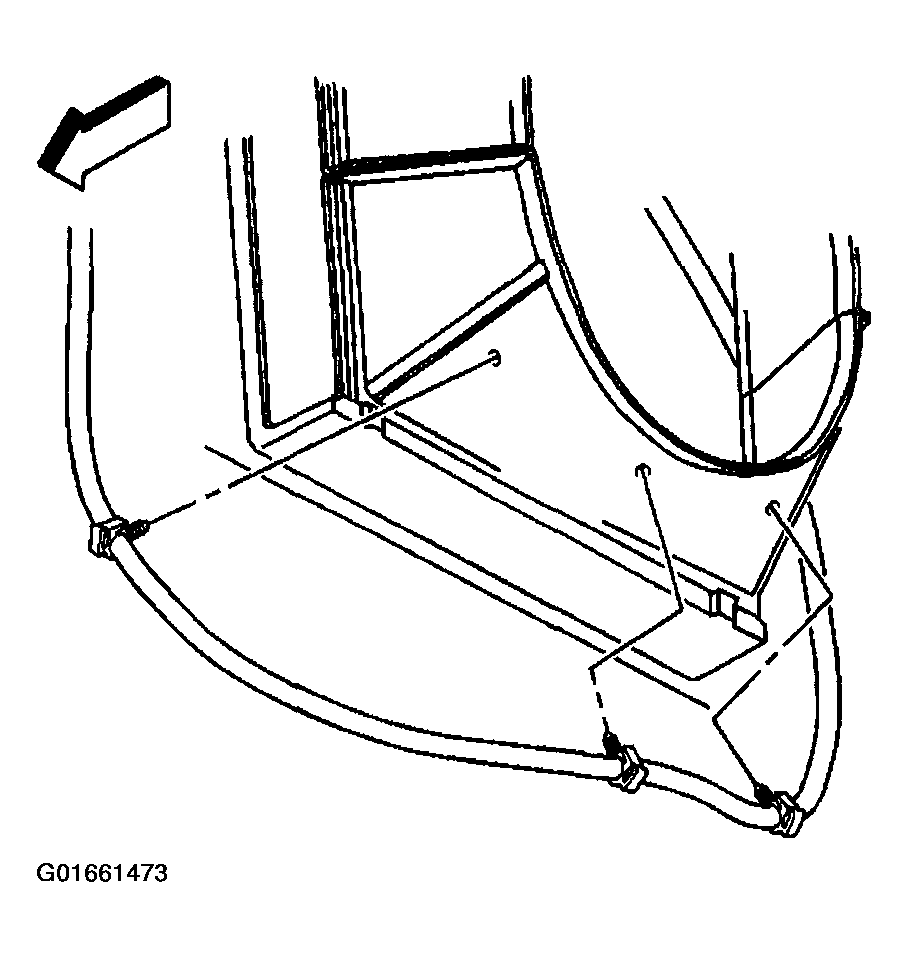

    Fig 3: Coolant Recovery Reservoir Hose At Lower Fan Shroud
    G01661473Courtesy of GENERAL MOTORS CORP.
  5. Lift the lower fan shroud just enough to disengage the locating tabs from the radiator.
  6. Remove the lower fan shroud from the vehicle.
    Fig 4: Lower Fan Shroud Locating Tabs
    G01661474Courtesy of GENERAL MOTORS CORP.
