Installation Procedure

  1. Install the lower fan shroud in the vehicle.
    1. 1.1. Position the lower fan shroud against the radiator.
    2. 1.2. Engage the locating tabs by pushing down on the fan shroud.
    Fig 1: Lower Fan Shroud Locating Tabs
    G01661475Courtesy of GENERAL MOTORS CORP.
  2. Install the upper fan shroud.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the upper fan shroud attaching screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

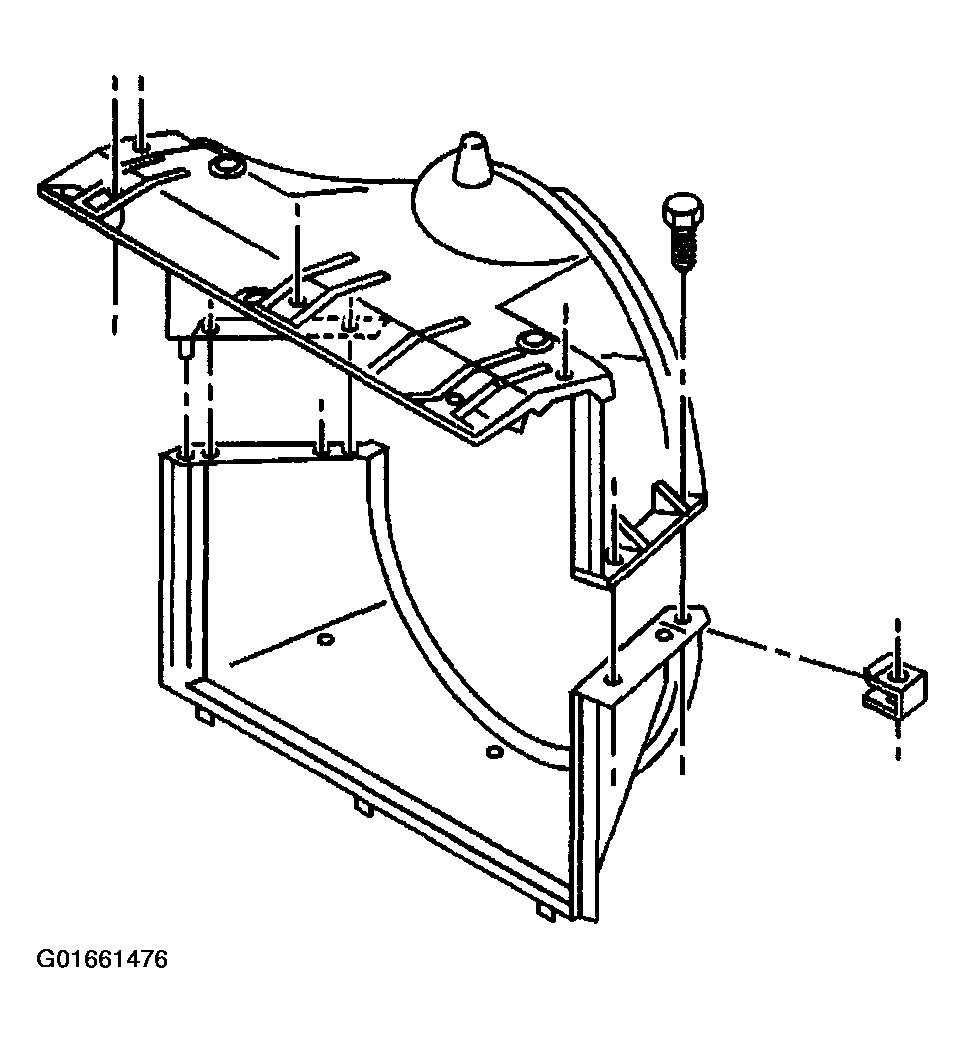

    Fig 2: Upper Fan Shroud & Attaching Screws
    G01661476Courtesy of GENERAL MOTORS CORP.
  4. Connect the coolant recovery reservoir hose to the lower fan shroud.

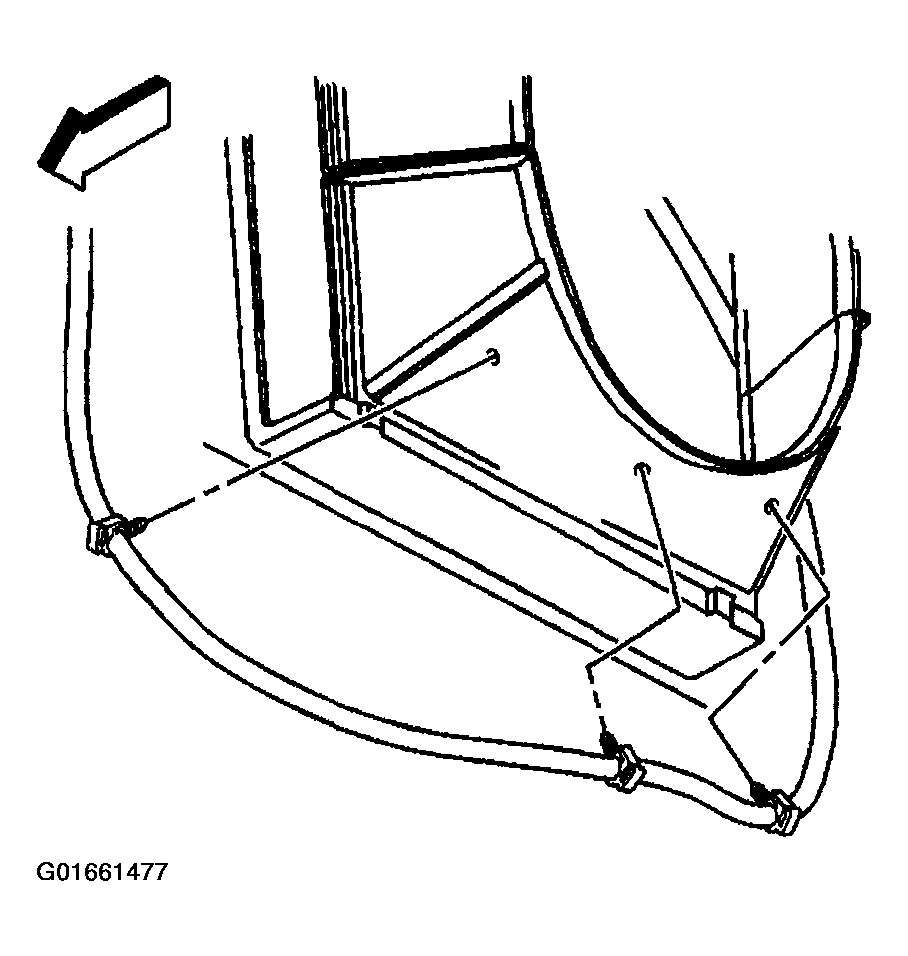

    Fig 3: Coolant Recovery Reservoir Hose At Lower Fan Shroud
    G01661477Courtesy of GENERAL MOTORS CORP.
  5. If equipped with the 2.2L, install the air intake duct assembly:
    • Loosen the air duct clamps.
    • Remove the air duct rivets (2).
    • Remove the intake duct assembly (1) from the fan shroud (3).
    • Install the intake air ducts.

      Tighten

      Tighten the intake air duct clamps 5 N.m (44 lb in).

    • Install the rivets (2).

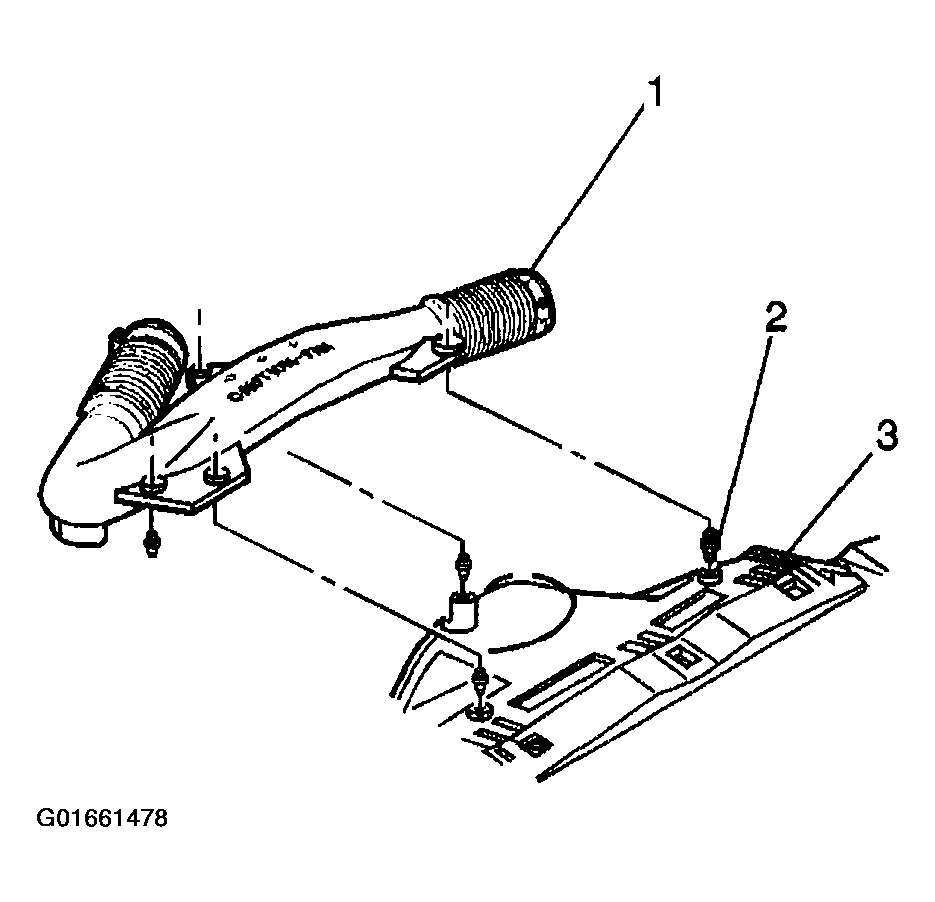

    Fig 4: Air Intake Duct Assembly (2.2L)
    G01661478Courtesy of GENERAL MOTORS CORP.
