Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the fan to the fan clutch mounting bolts.

    Tighten

    Tighten the fan clutch mounting bolts to 33 N.m (24 lb ft).

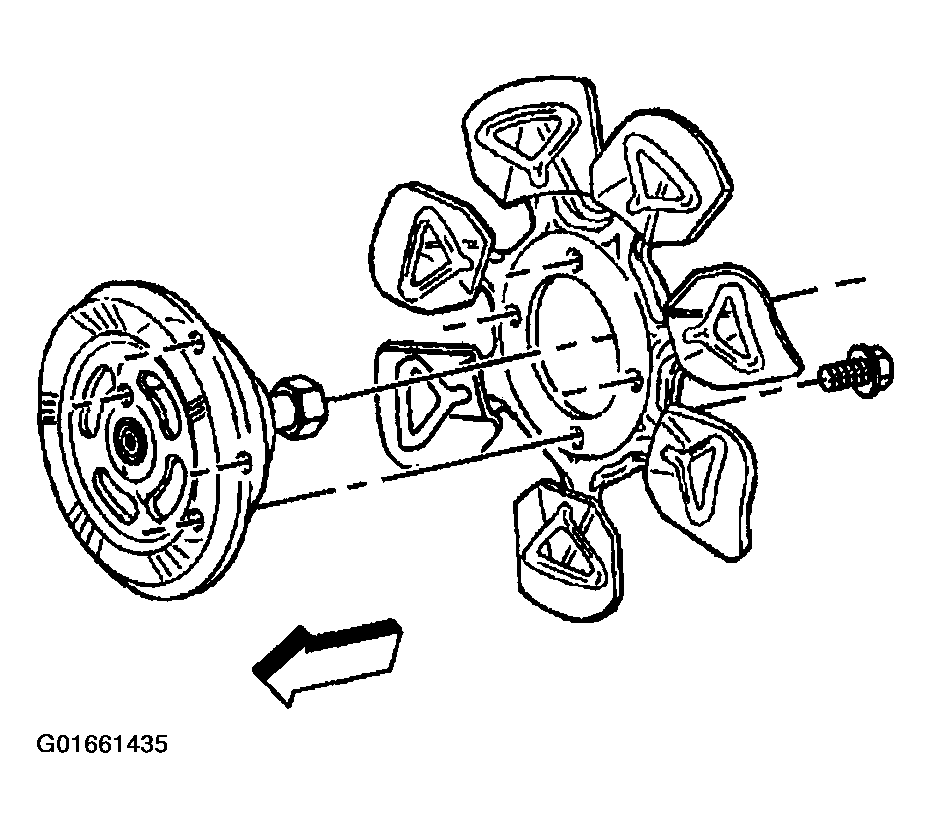

    Fig 1: Fan, Clutch & Mounting Bolts
    G01661435Courtesy of GENERAL MOTORS CORP.
  2. Install the fan and fan clutch assembly to the coolant pump pulley using the J 41240  .
  3. Install the upper fan shroud. Refer to Fan Shroud Replacement .

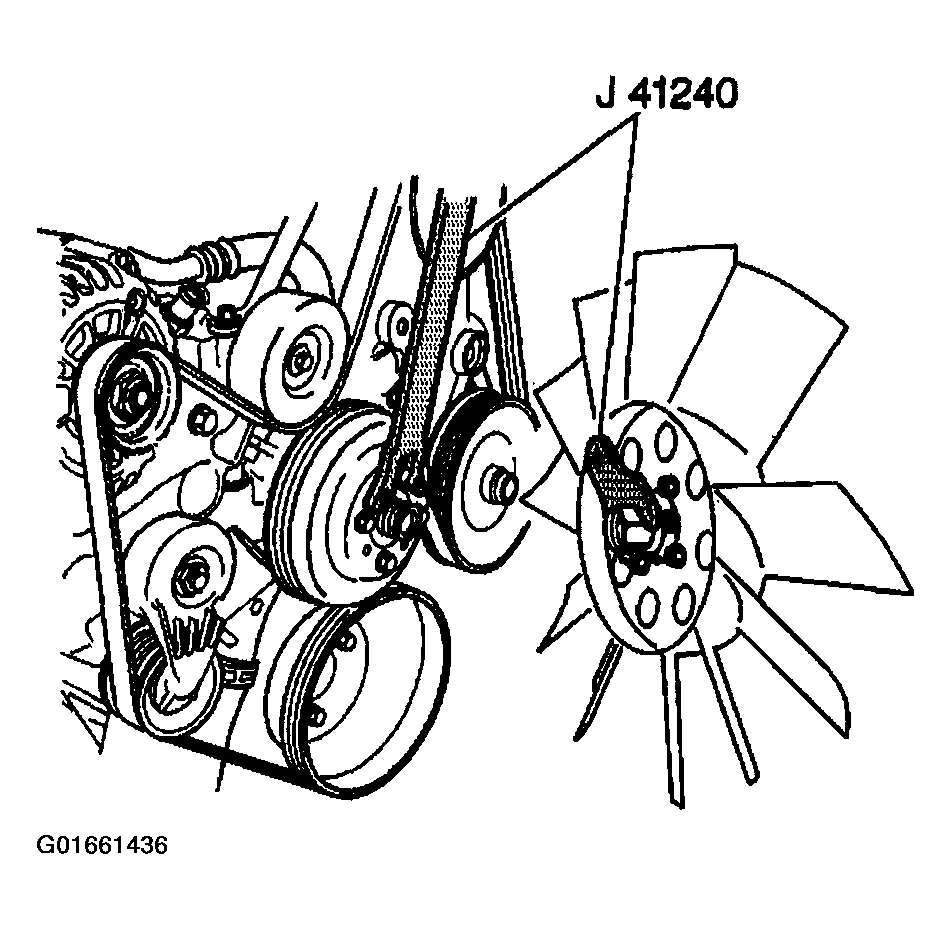

    Fig 2: Fan Clutch Assembly & J 41240
    G01661436Courtesy of GENERAL MOTORS CORP.
