Installation Procedure

  1. Align the metal pin on the drain cock with the opening slot on the radiator.

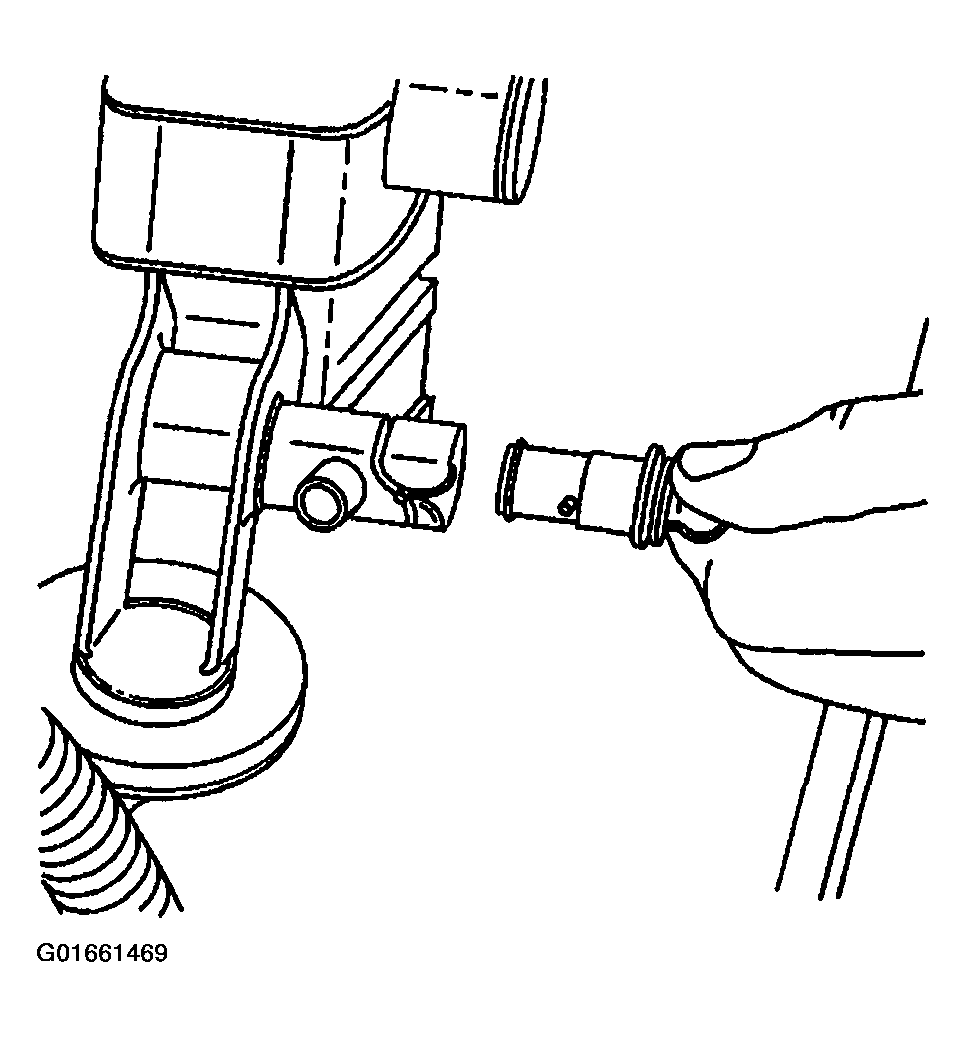

    Fig 1: Aligning Drain Cock Metal Pin With Opening Slot
    G01661469Courtesy of GENERAL MOTORS CORP.
  2. Push the drain cock into the radiator slot.
  3. Turn the drain cock clockwise until fully seated.
  4. Fill the cooling system. Refer to Draining and Filling Cooling System .

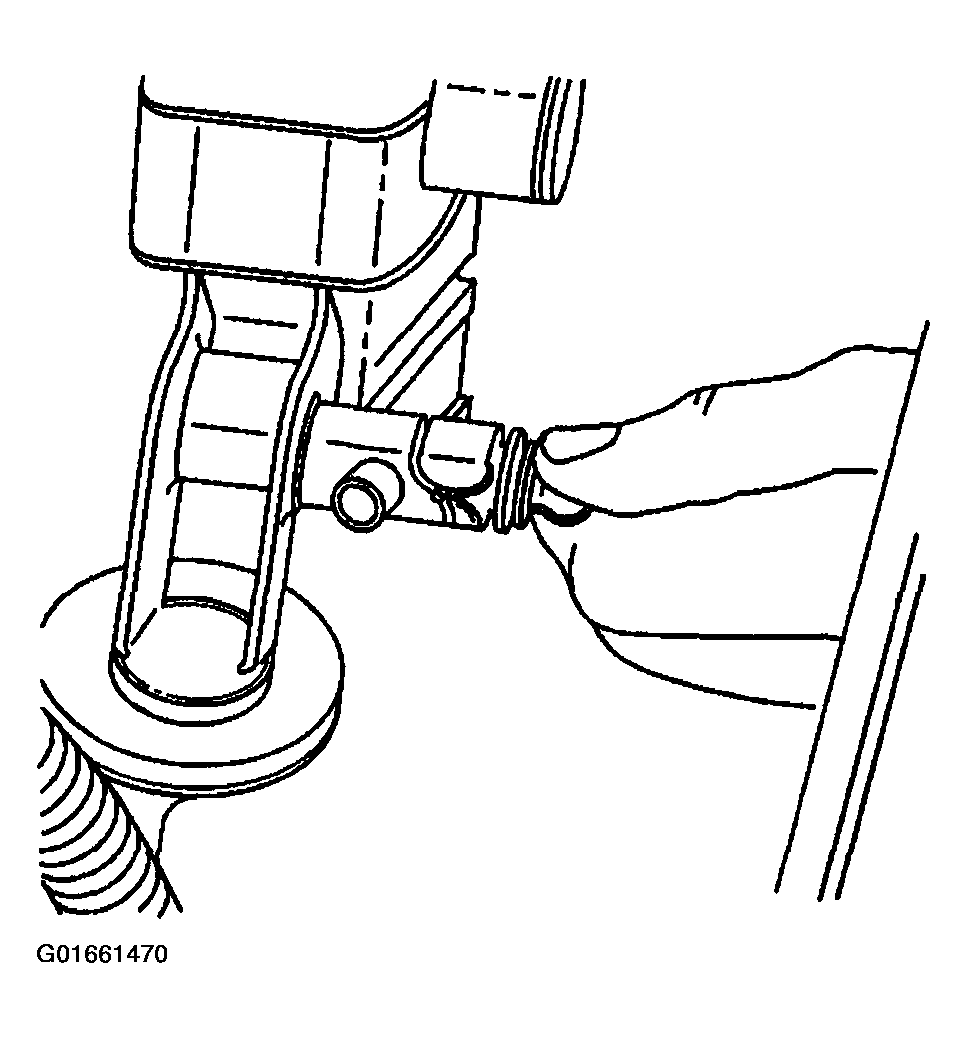

    Fig 2: Drain Cock & Radiator Slot
    G01661470Courtesy of GENERAL MOTORS CORP.
