Removal Procedure

  1. Remove the PCM and set it aside. Refer to POWERTRAIN CONTROL MODULE .

    Important:  Do not disconnect wiring harness to PCM.

  2. Remove the hose from the coolant recovery reservoir.

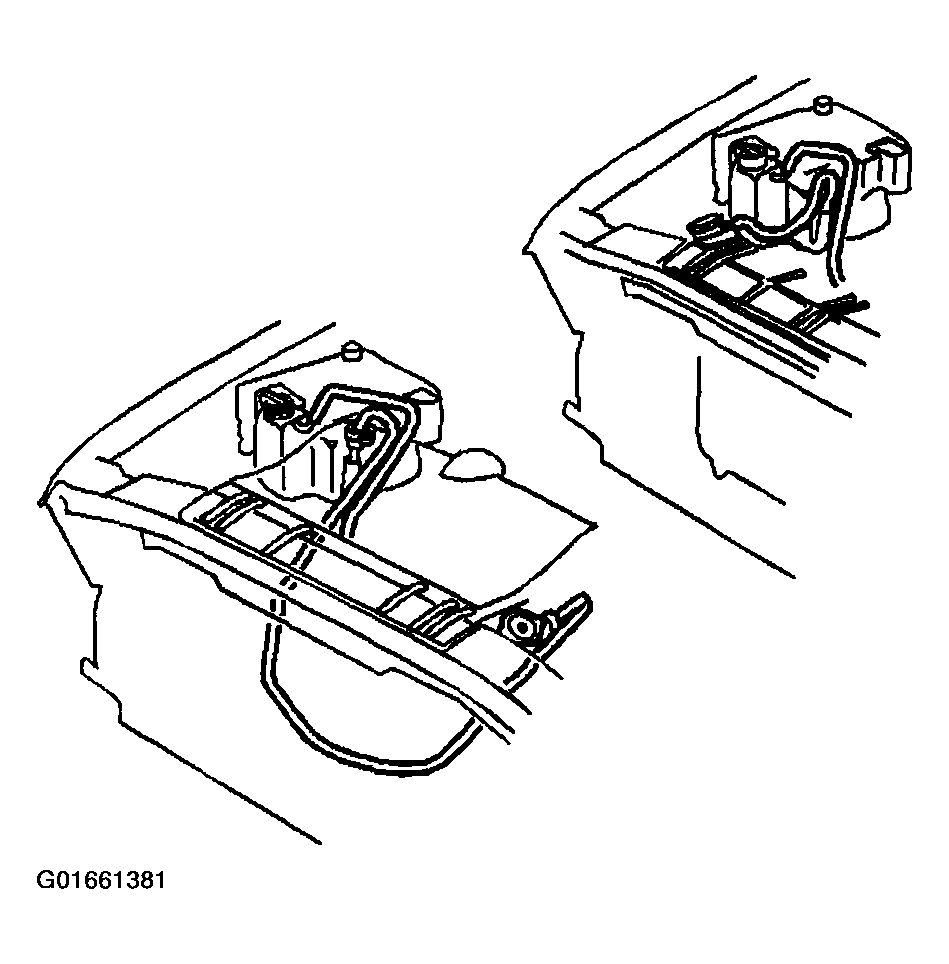

    Fig 1: Coolant Recovery Reservoir & Hose
    G01661381Courtesy of GENERAL MOTORS CORP.
  3. Remove the coolant recovery reservoir retaining nuts.

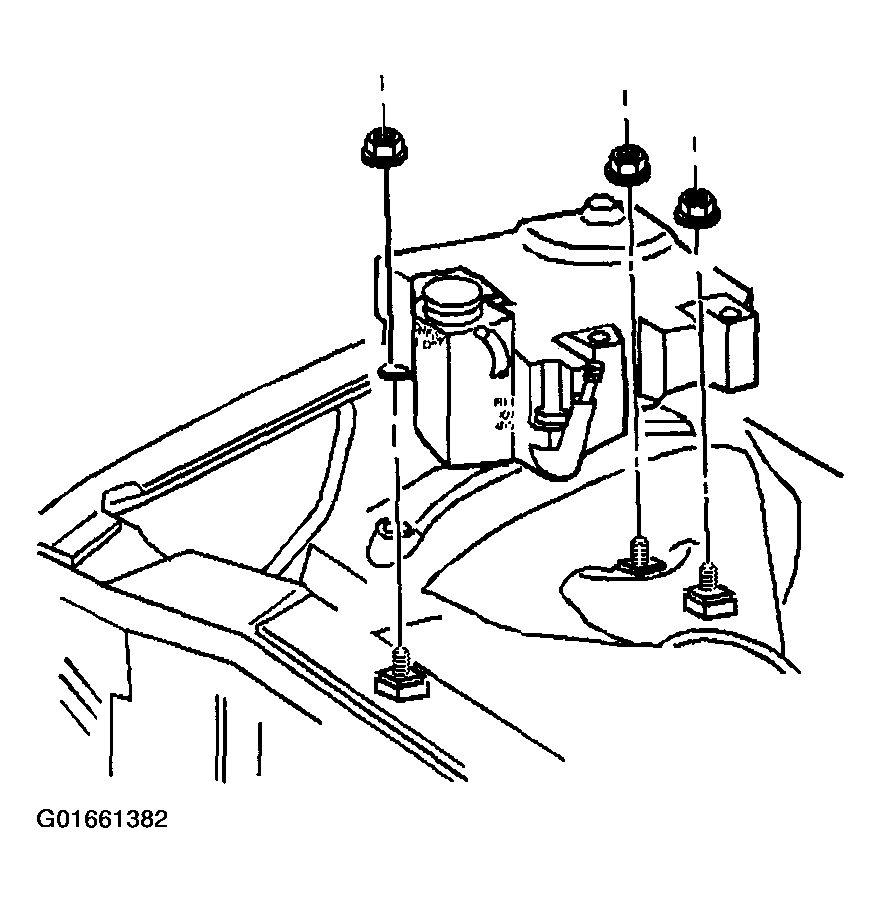

    Fig 2: Coolant Recovery Reservoir Retaining Nuts
    G01661382Courtesy of GENERAL MOTORS CORP.
  4. Remove the coolant recovery reservoir.
  5. Remove the coolant from the reservoir.
    Fig 3: Coolant Recovery Reservoir
    G01661383Courtesy of GENERAL MOTORS CORP.
