Installation Procedure

  1. Install the coolant recovery reservoir.
    Fig 1: Coolant Recovery Reservoir
    G01661384Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Tighten the reservoir retaining nuts.

    Tighten

    Tighten the reservoir retaining nuts to 8-11 N.m (6-8 lb ft).

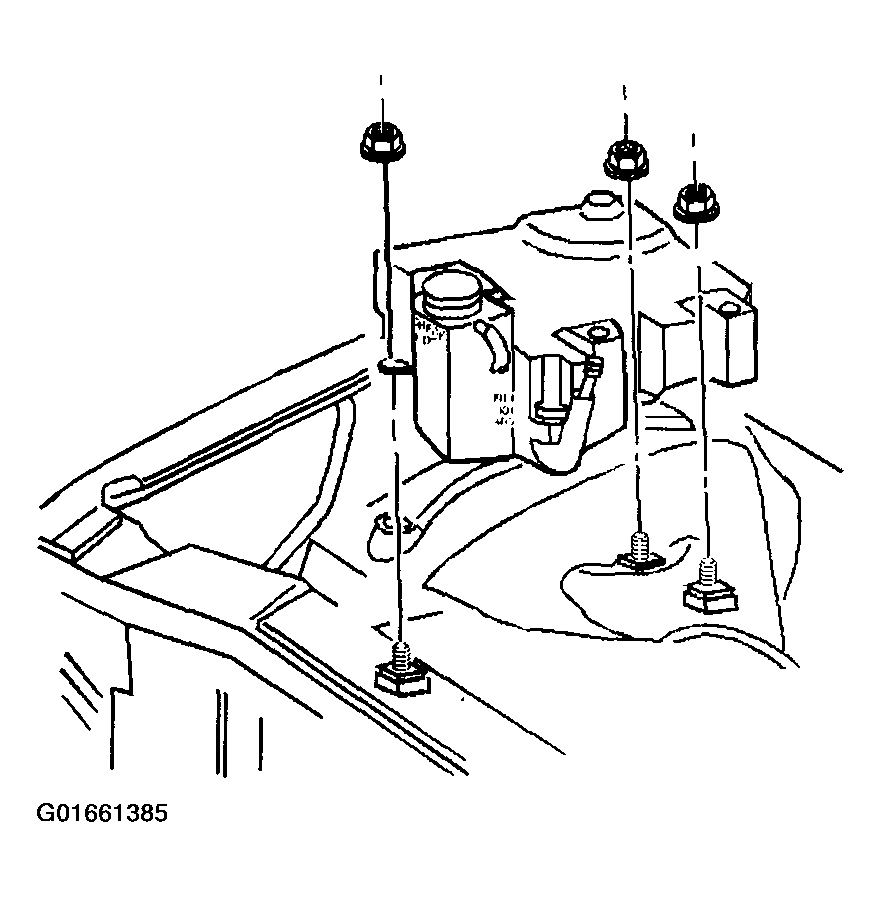

    Fig 2: Coolant Recovery Reservoir Retaining Nuts
    G01661385Courtesy of GENERAL MOTORS CORP.
  3. Install the hose to the coolant recovery reservoir.
  4. Install the PCM. Refer to POWERTRAIN CONTROL MODULE .
  5. Add coolant to reservoir. Refer to Draining and Filling Cooling System .

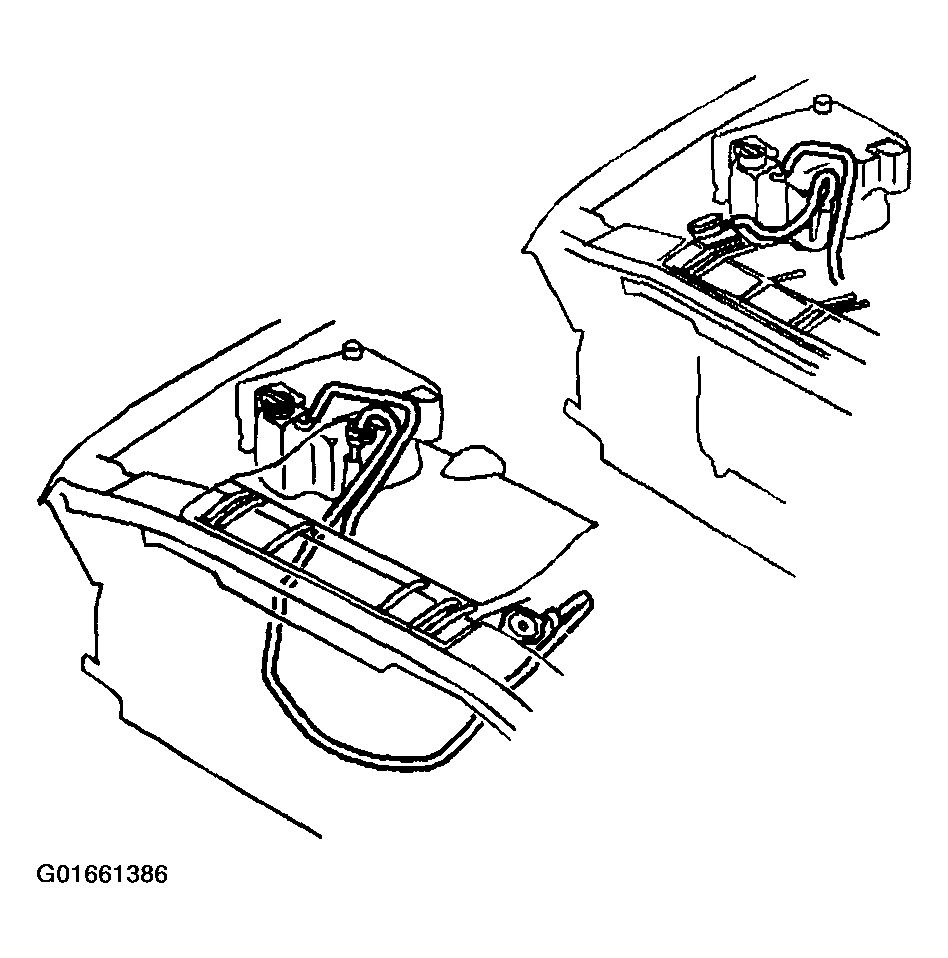

    Fig 3: Coolant Recovery Reservoir & Hose
    G01661386Courtesy of GENERAL MOTORS CORP.
