Removal Procedure

  1. Remove the coolant heater cord bolt and the retainer.
  2. Cut the plastic ties and remove the heater cord from the wiring harness.
  3. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  4. Disconnect the coolant heater cord electrical connector.
  5. Remove the coolant heater cord.

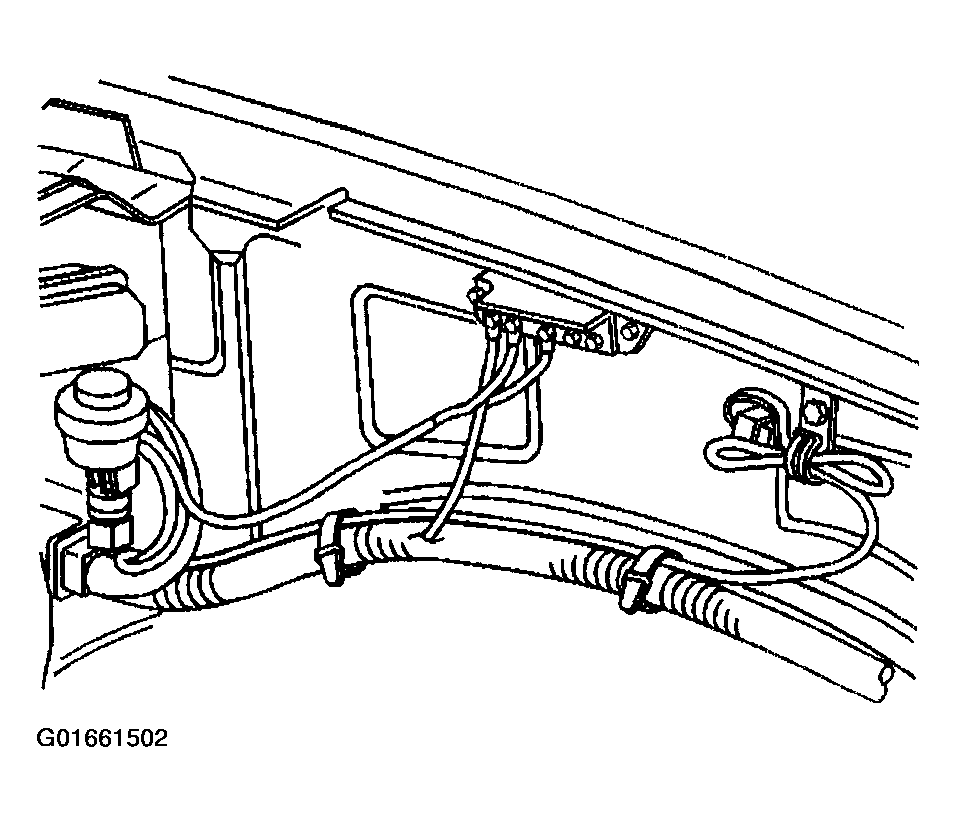

    Fig 1: Coolant Heater Cord
    G01661502Courtesy of GENERAL MOTORS CORP.
