Fan Clutch Diagnosis

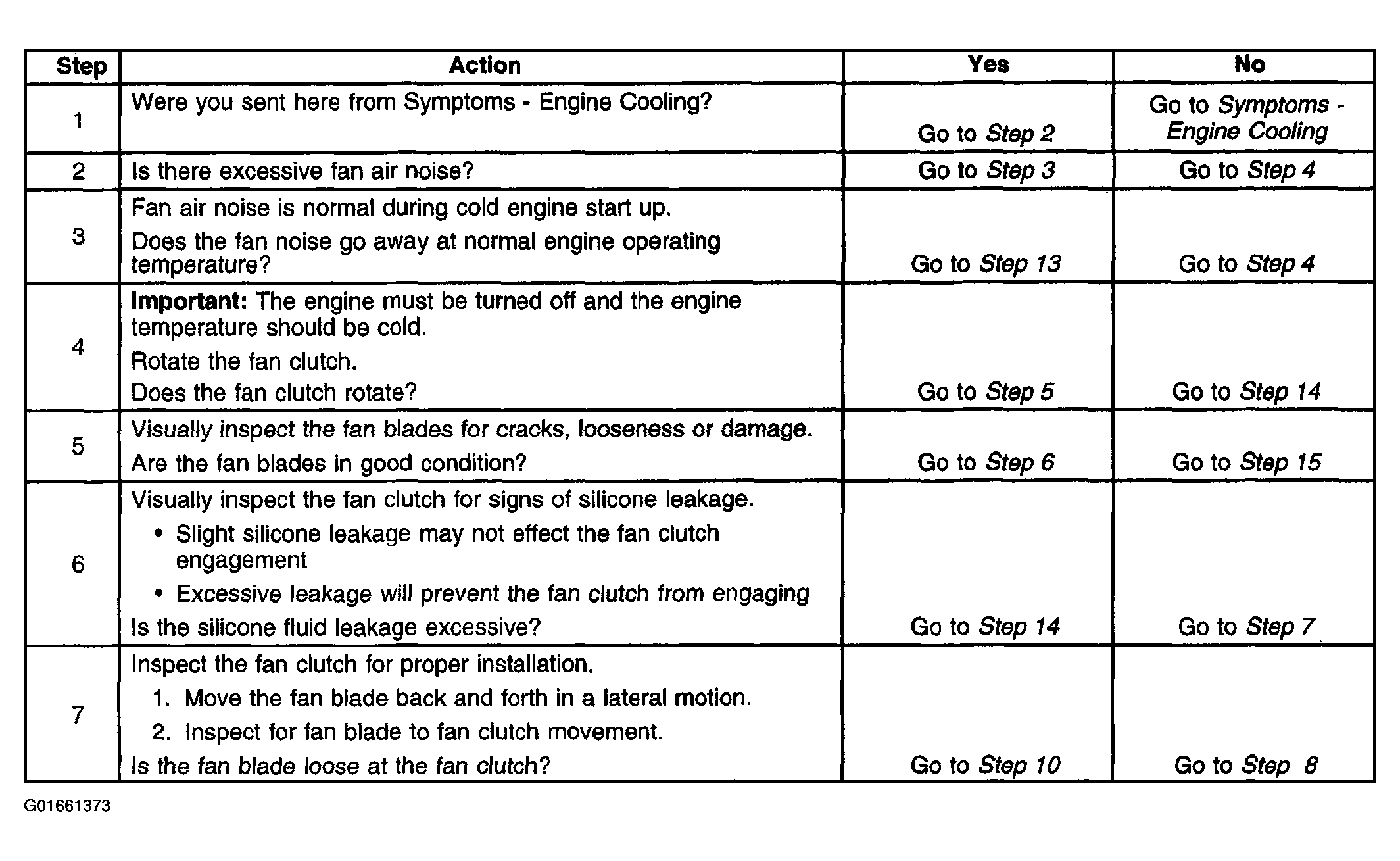

Fig 1: Fan Clutch Diagnosis (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

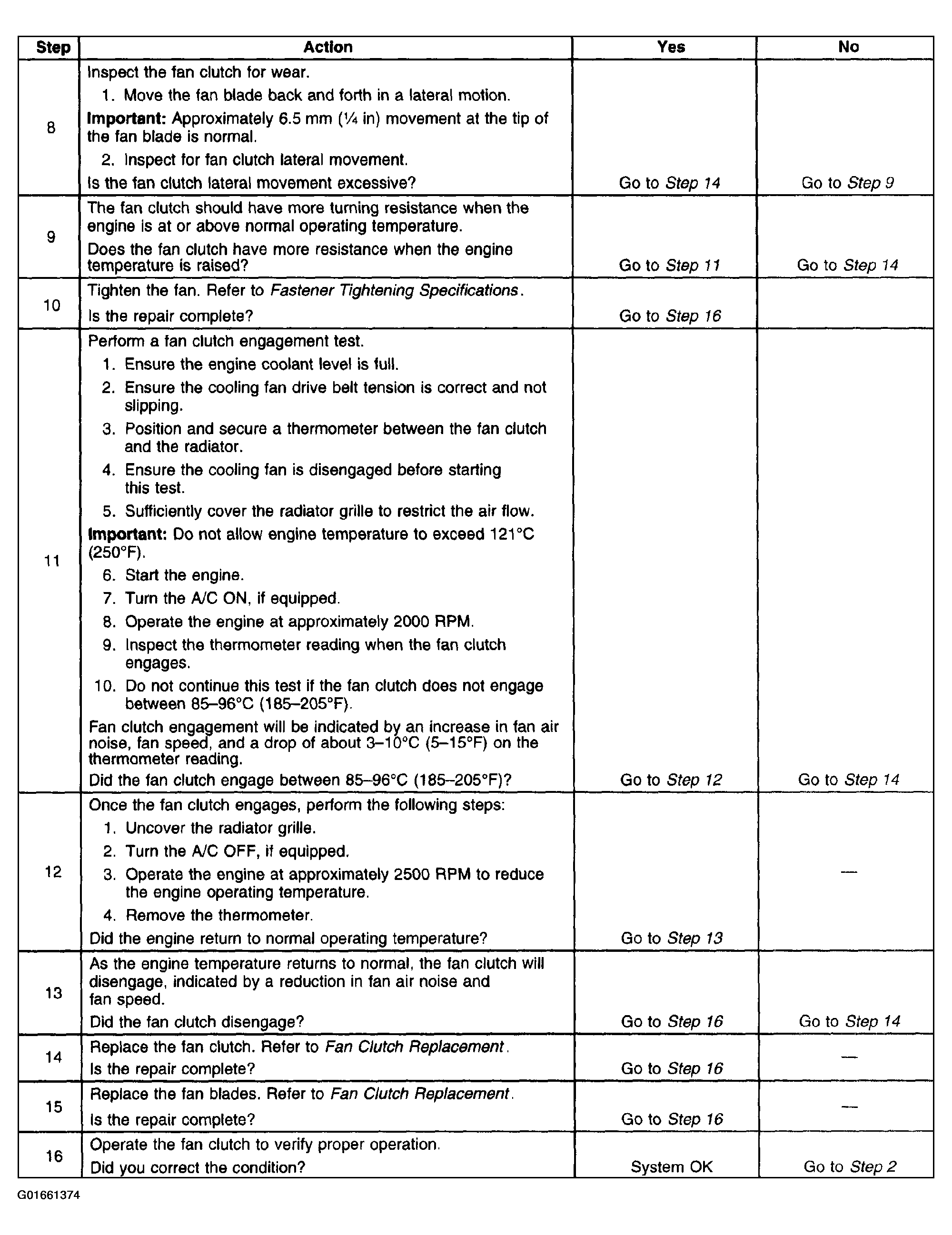

Fig 2: Fan Clutch Diagnosis (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
