Engine Fails To Reach Normal Operating Temperature
Engine Fails To Reach Normal Operating Temperature

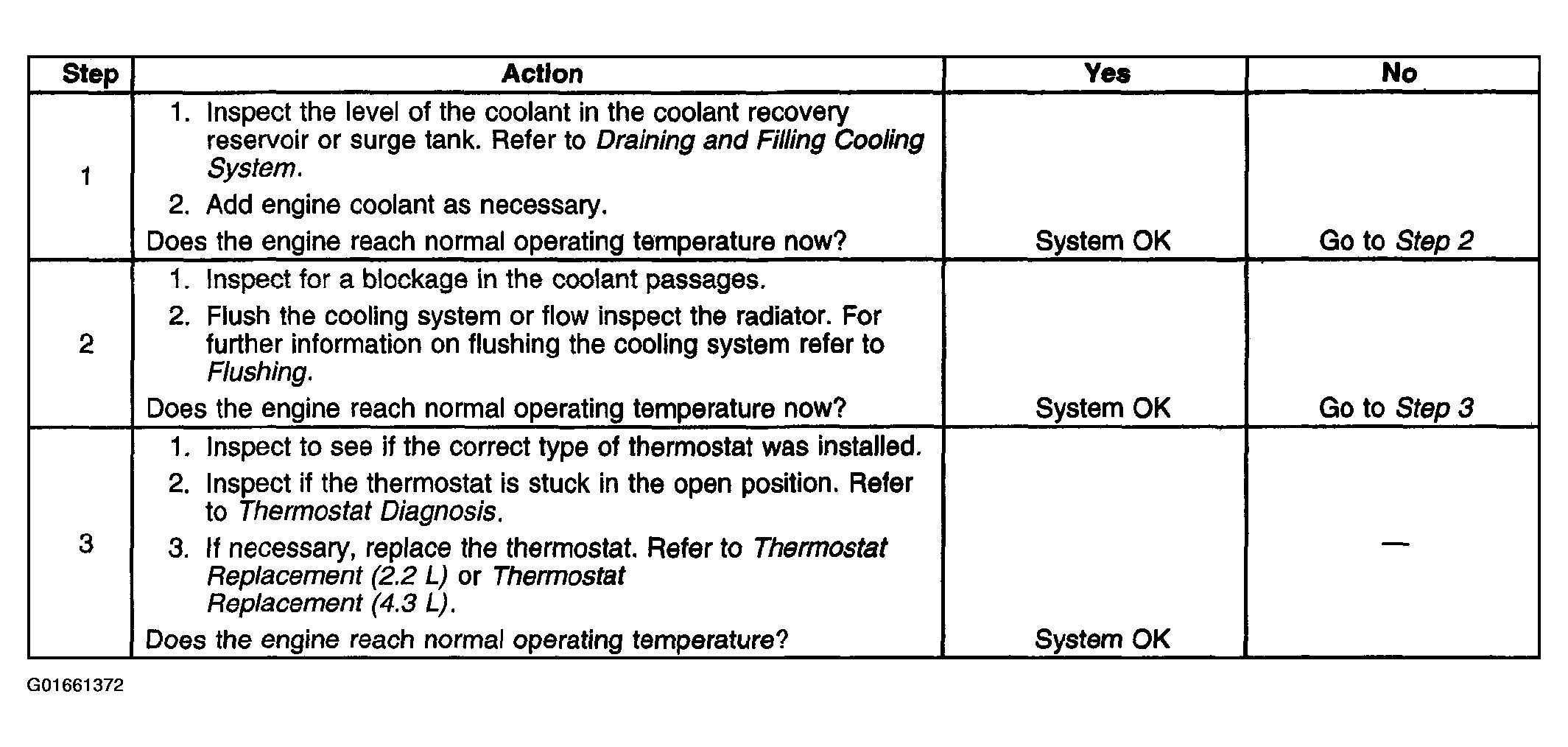

Fig 1: Engine Fails To Reach Normal Operating Temperature
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
