Removal Procedure

Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in BATTERY article.
Remove the battery positive cable cover.

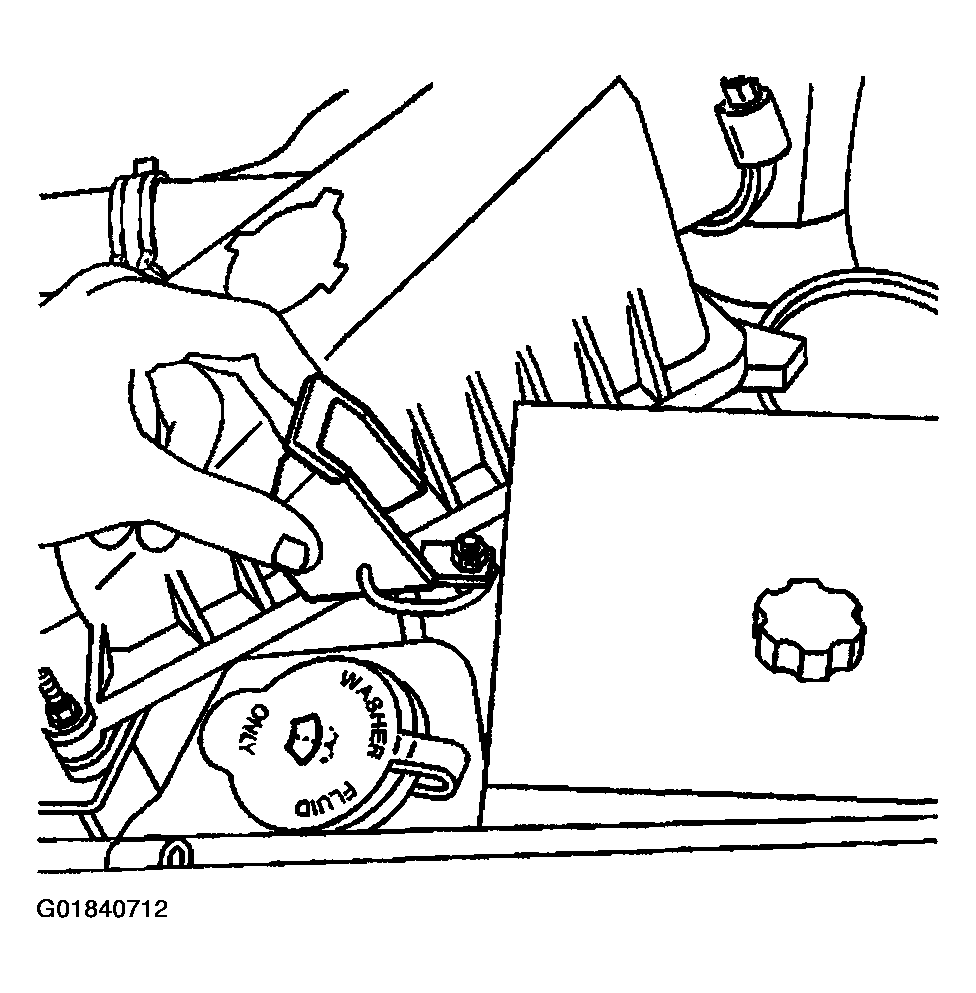

Fig 1: Locating Battery Positive Cable Cover
Courtesy of GENERAL MOTORS CORP.
Remove the battery positive cable bolt.

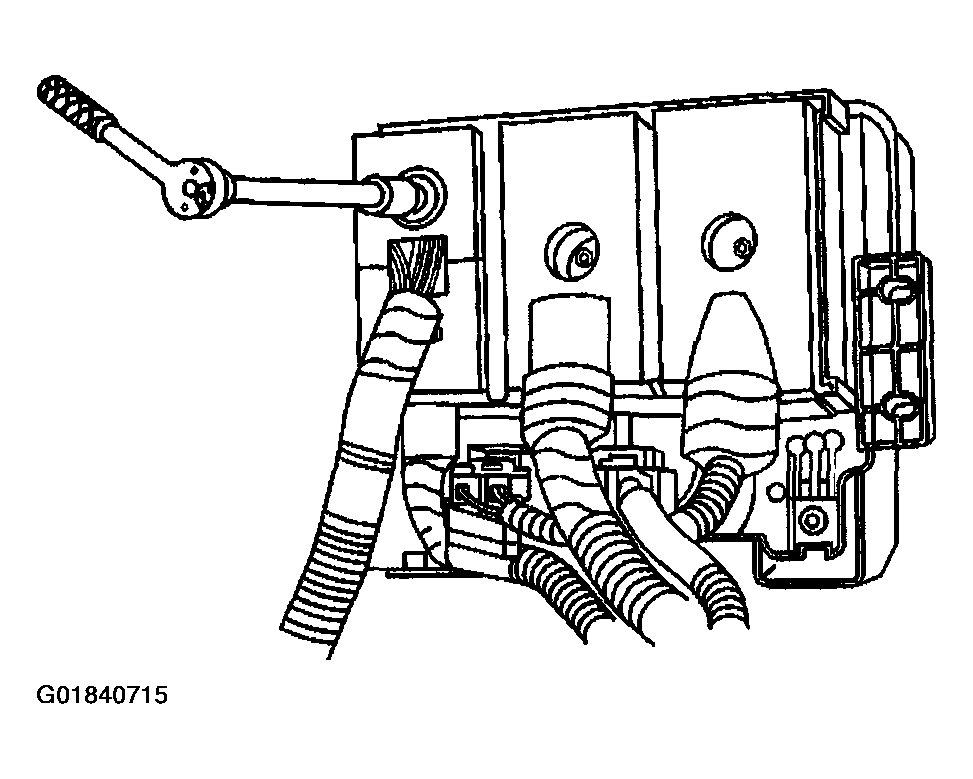

Fig 2: Locating Battery Positive Cable Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the battery positive cable from the underhood electrical center.
Remove the bolts that attach the underhood electrical center to the underhood electrical center support bracket.

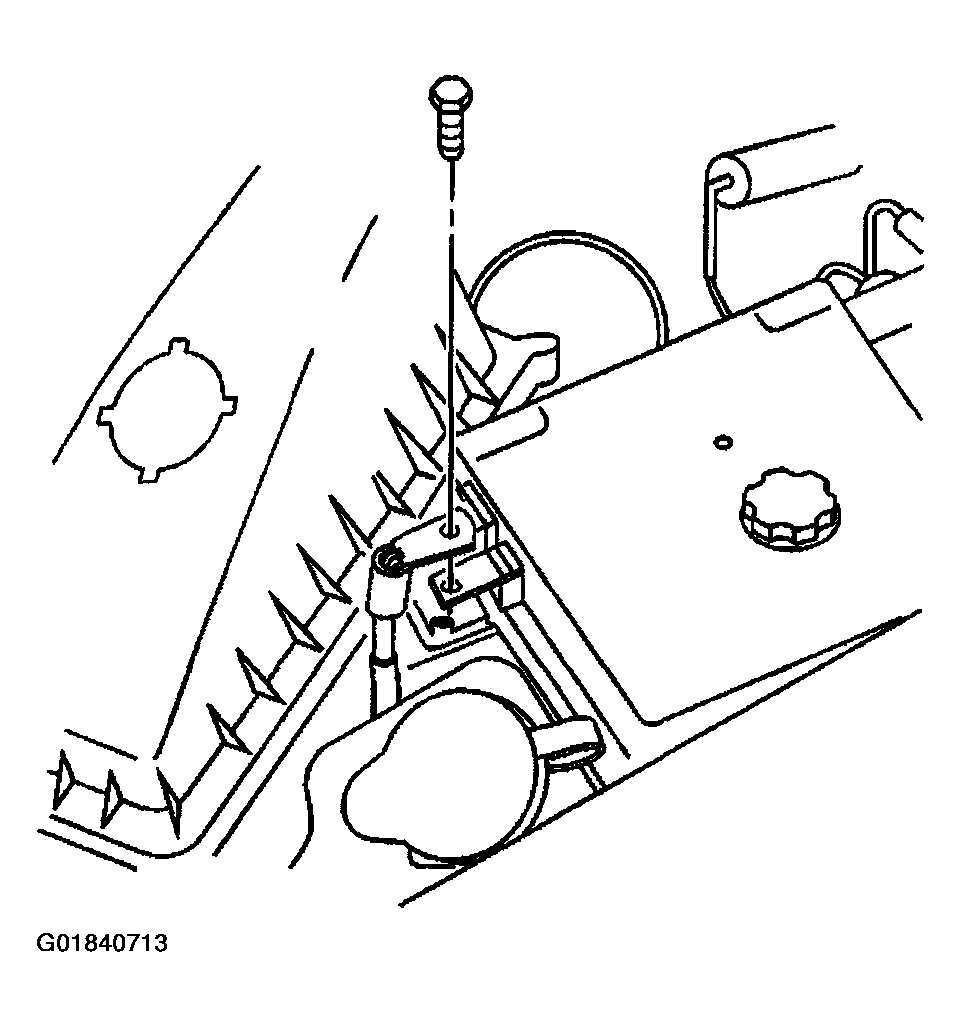

Fig 3: Locating Underhood Electrical Center Support Bracket Bolts
Courtesy of GENERAL MOTORS CORP.
Loosen the bolts that secure the electrical connectors to the bottom of the underhood electrical center.

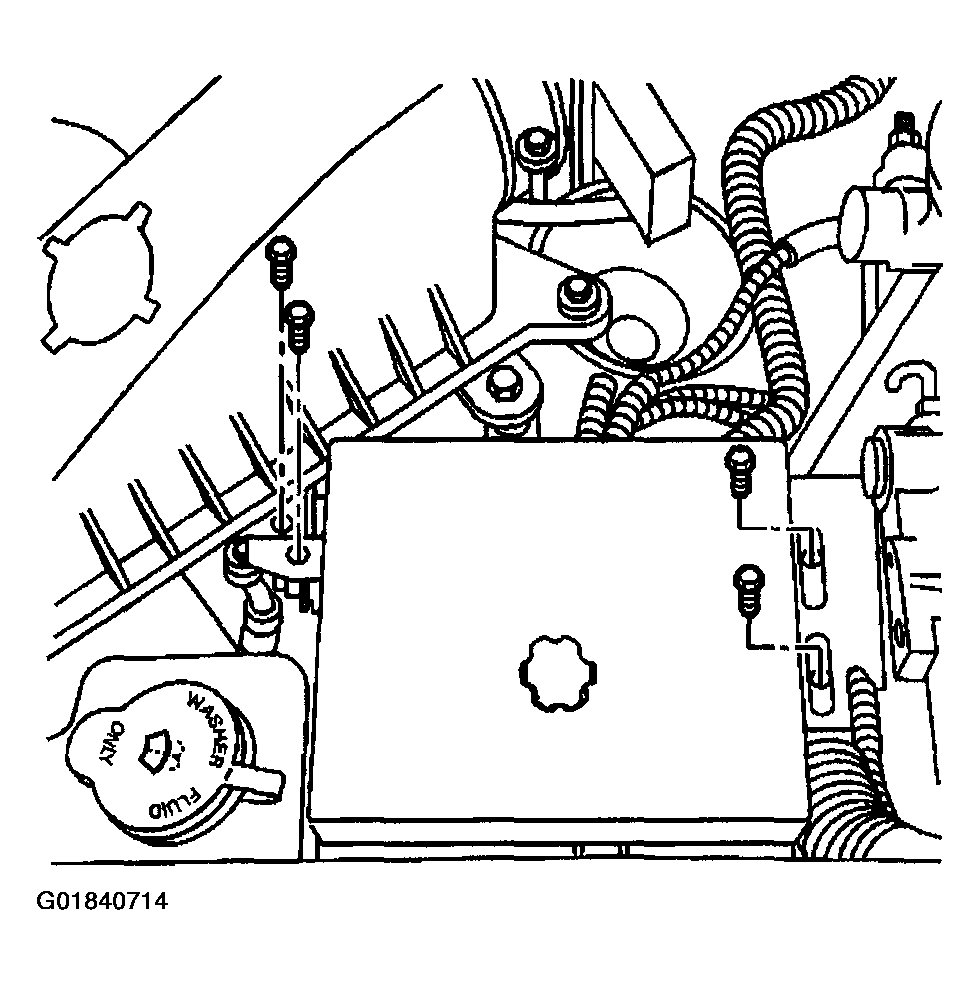

Fig 4: Locating Underhood Electrical Center Connector Bolts
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the underhood electrical center.

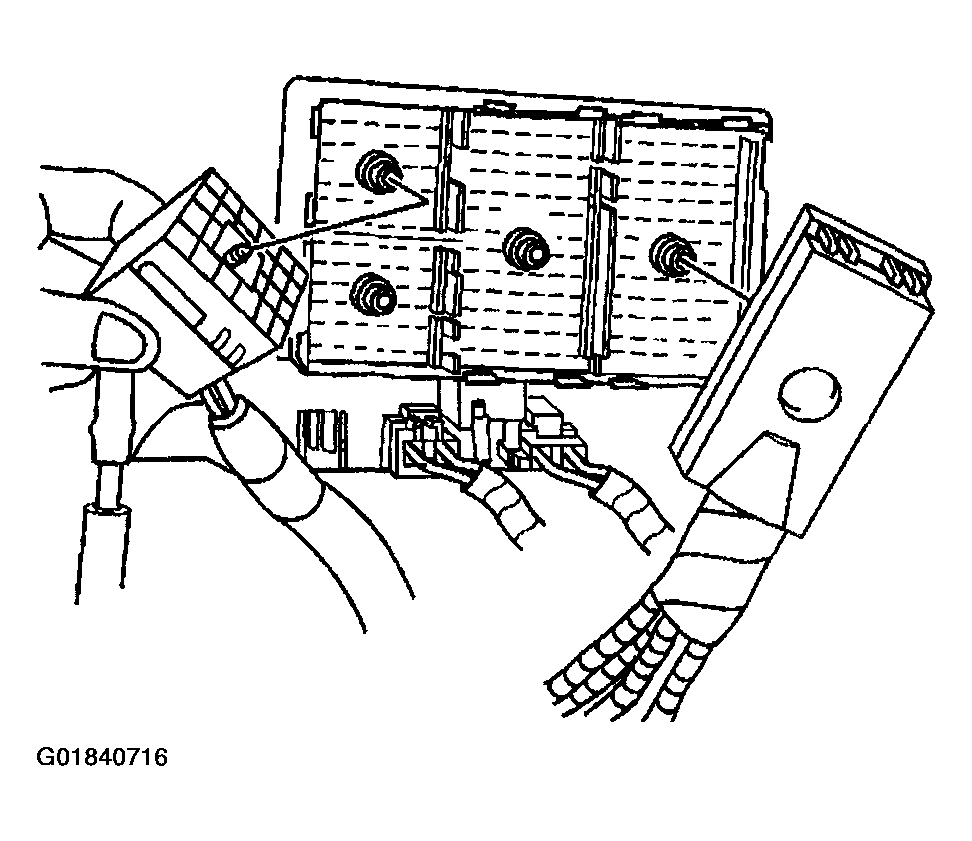

Fig 5: Locating Underhood Electrical Center Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Remove the underhood electrical center from the vehicle.
