Removal Procedure

  1. Remove the electrical center cover.
  2. Locate the relay in electrical center. See BUZZERS, RELAYS & TIMERS in ELECTRICAL COMPONENT LOCATOR article.
    IMPORTANT:
    • Always note the orientation of the relay.
    • Make sure the electrical center is secure, as not to put added stress on the wires or terminals.
  3. Using the J 43244 (1) position the tool on opposing corners of the relay (2).
    4. NOTE: Use J43244 to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.

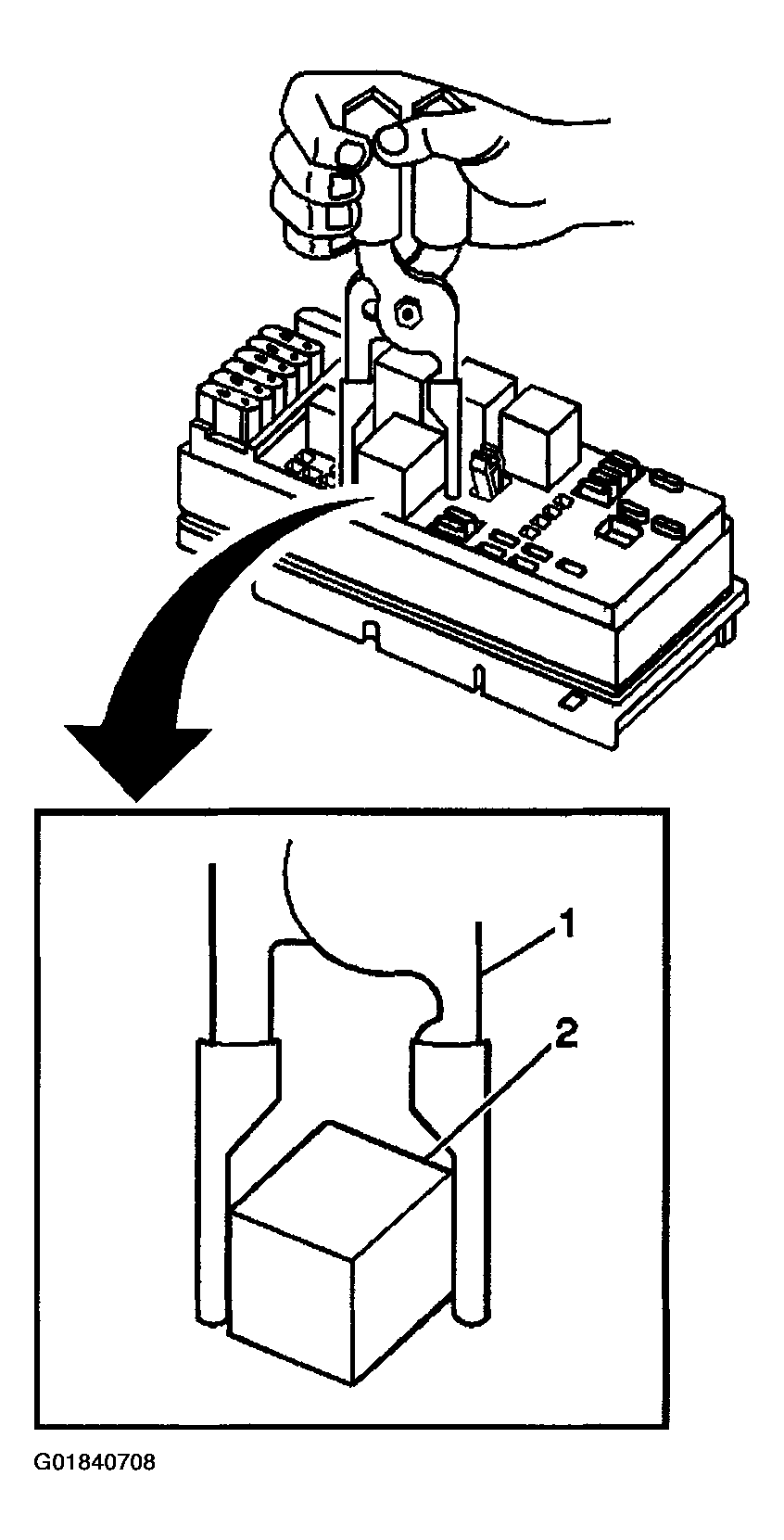

    Fig 1: Positioning Relay Puller Pliers
    G01840708Courtesy of GENERAL MOTORS CORP.
  4. Remove the relay (2) from the electrical center.
