Installation Procedure

  1. Install the relay (2) in the same position as removed.

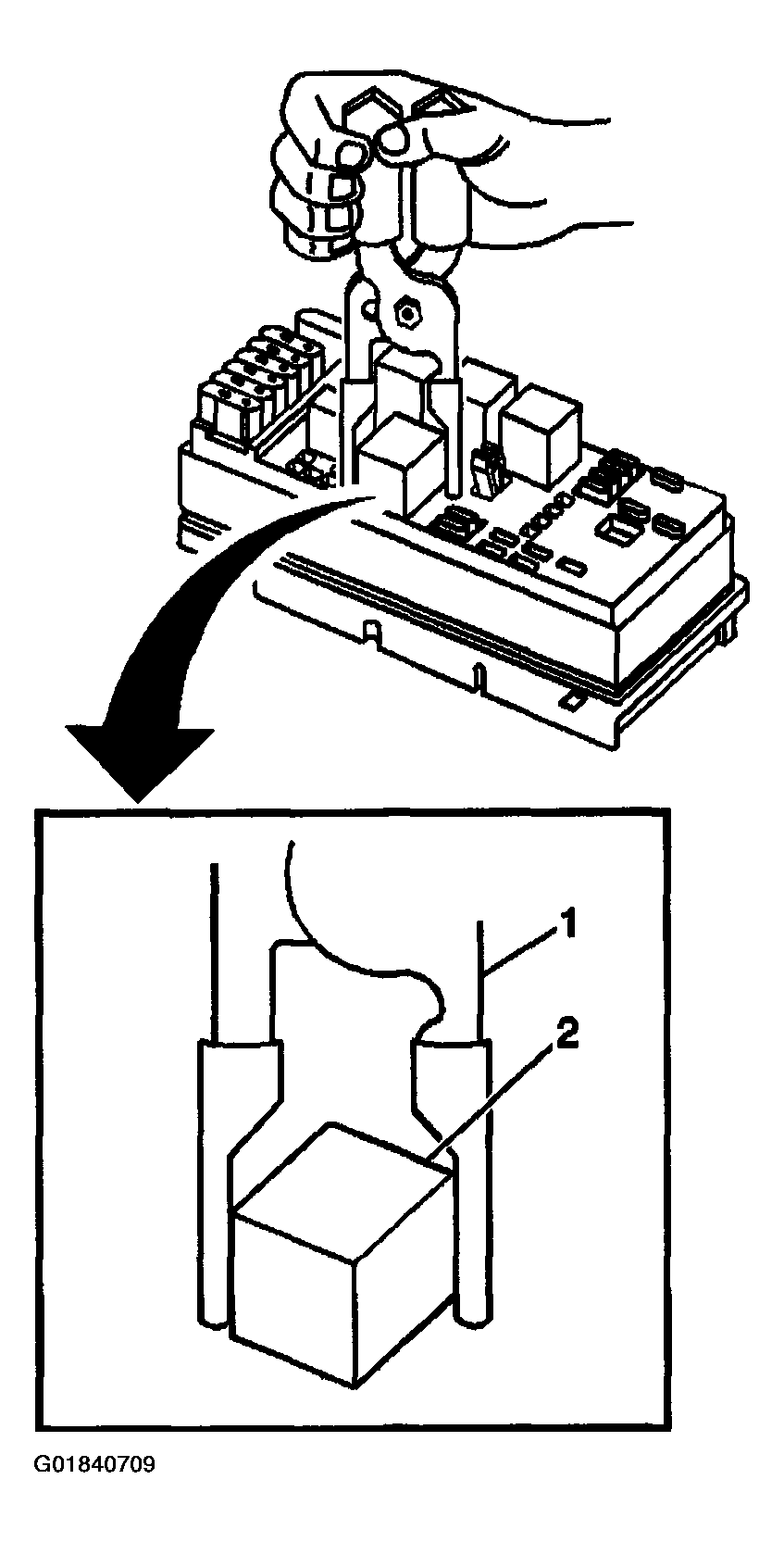

    Fig 1: Positioning Relay Puller Pliers
    G01840709Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical center cover.
