Installation Procedure

  1. Install each wire and terminal in the new junction block.
  2. Rewrap the wrapping (3) on the wiring harness.
  3. Install the screw (1) securing the screw (1) securing the junction block (2) to the instrument panel.
  4. Install the junction block (2) to the instrument panel with the screw (1).
  5. Install the left insulator/closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in INSTRUMENT PANEL, GAGES & CONSOLE article.

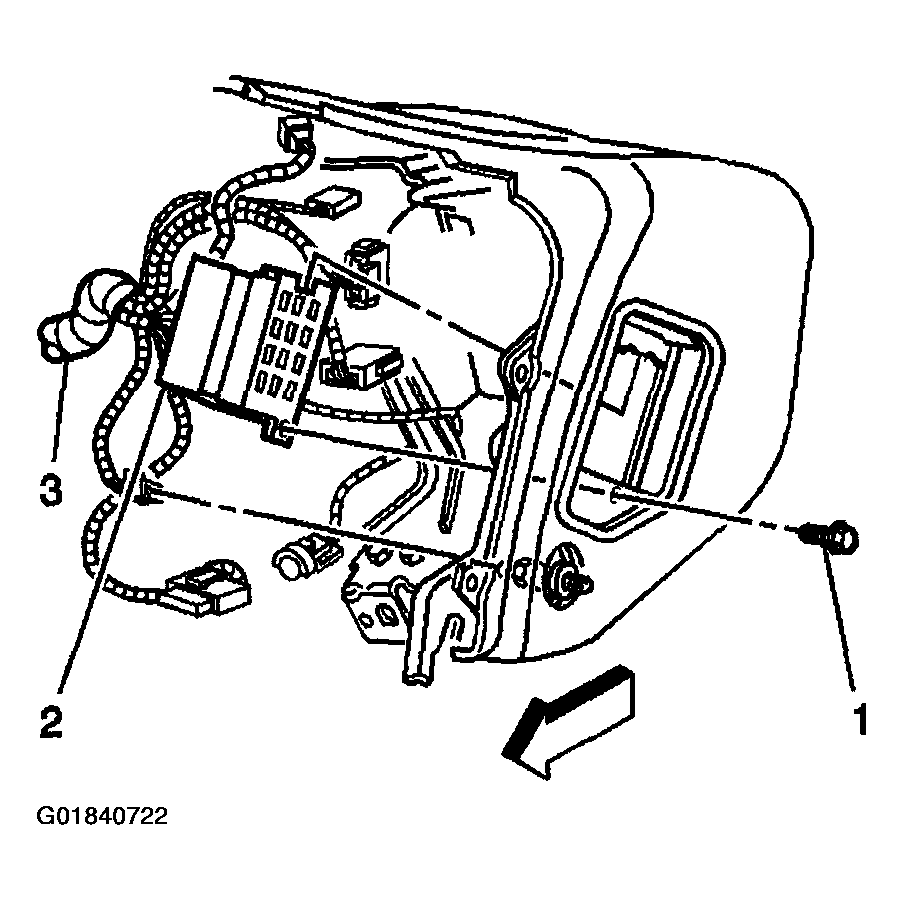

    Fig 1: Locating Junction Block-To-Instrument Panel Screw
    G01840722Courtesy of GENERAL MOTORS CORP.
