Where To Find Electrical Schematics

Electrical system schematics are located within their respective subsections. Because more than one electrical system is located in each subsection, each electrical systems schematics are further broken down into operating systems. The following table lists all electrical system schematics and the subsection in which they are located.

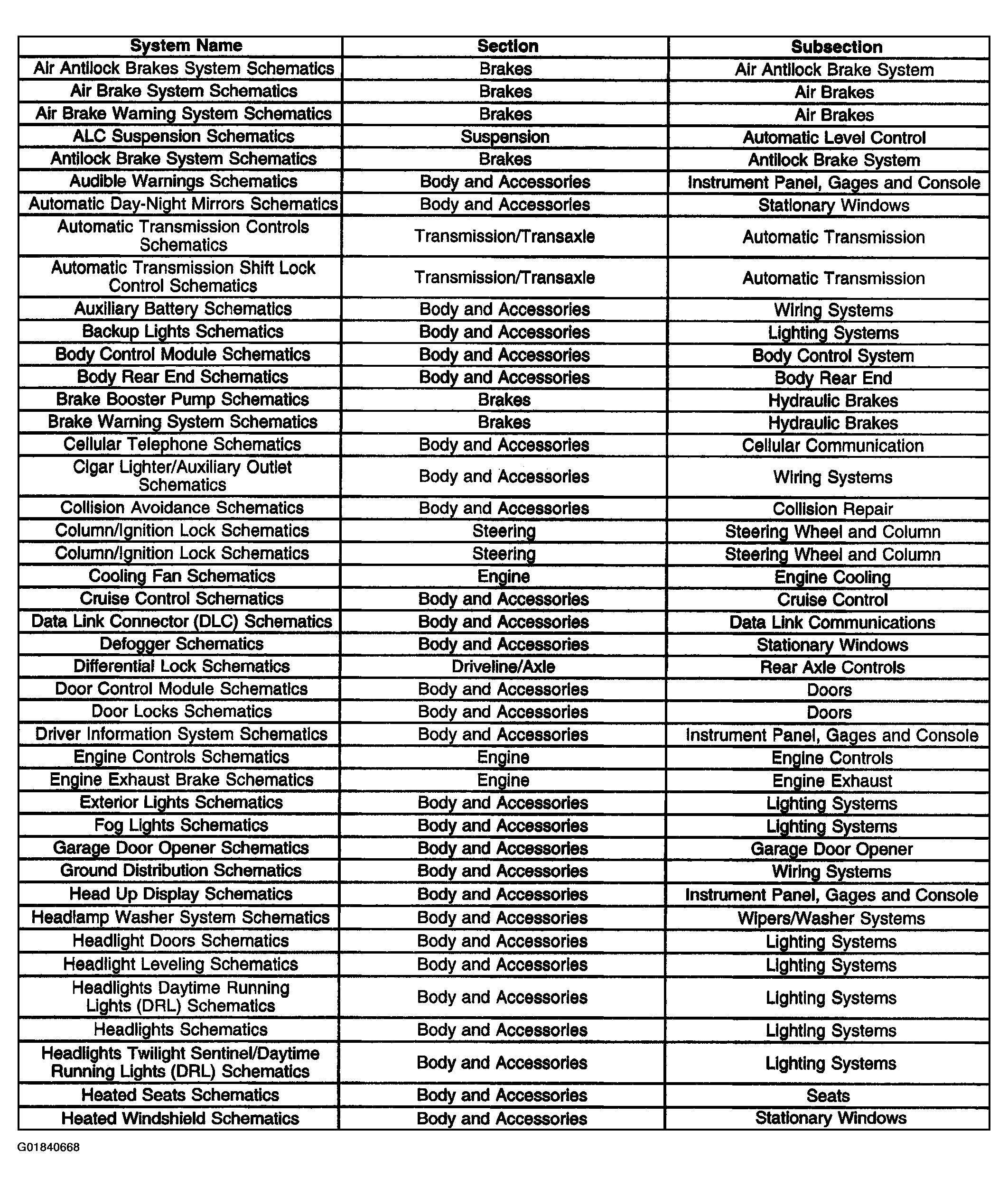

Fig 1: Electrical Schematic Locations (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

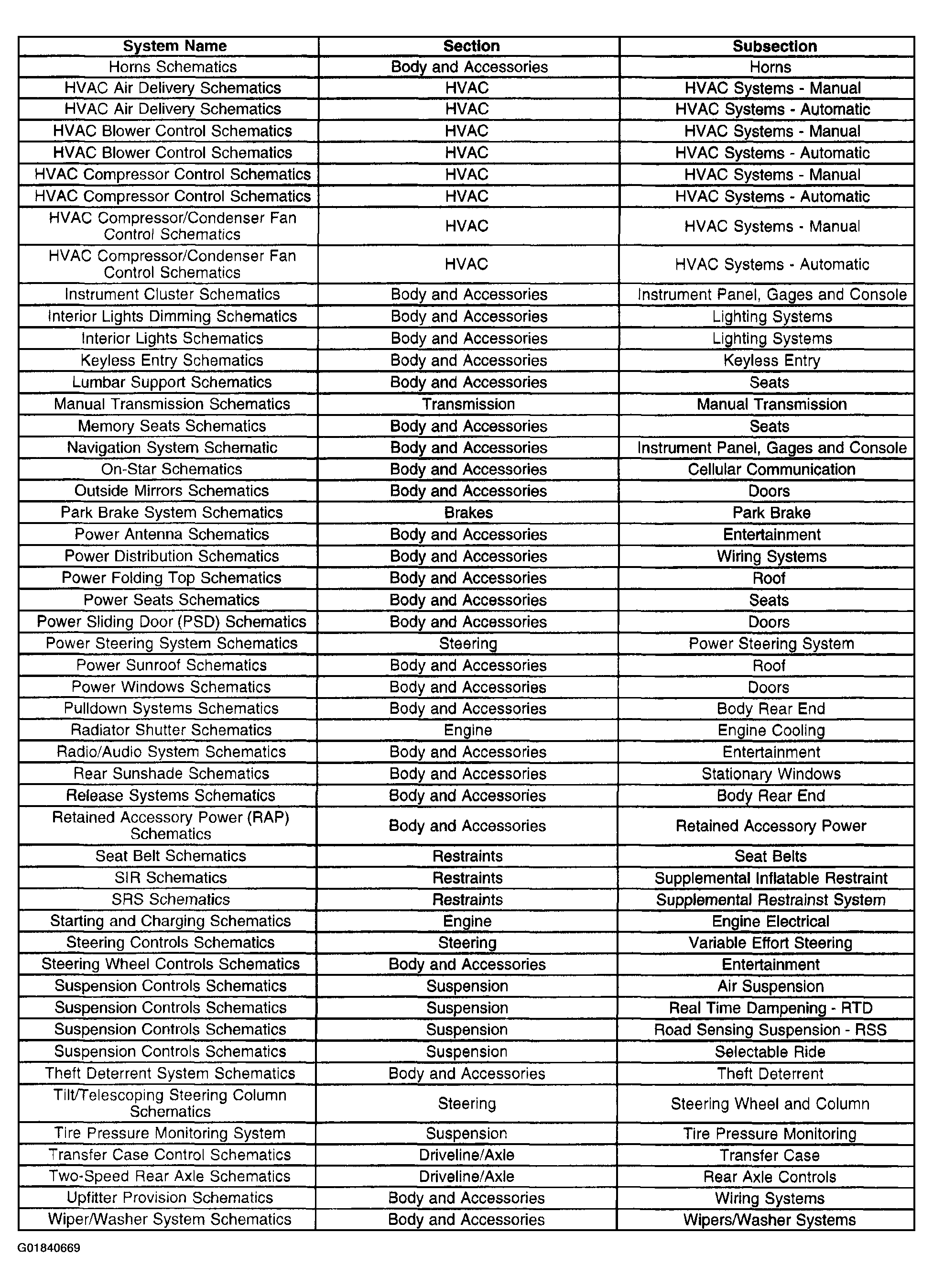

Fig 2: Electrical Schematic Locations (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
