Retained Accessory Power (RAP) On After Time-out

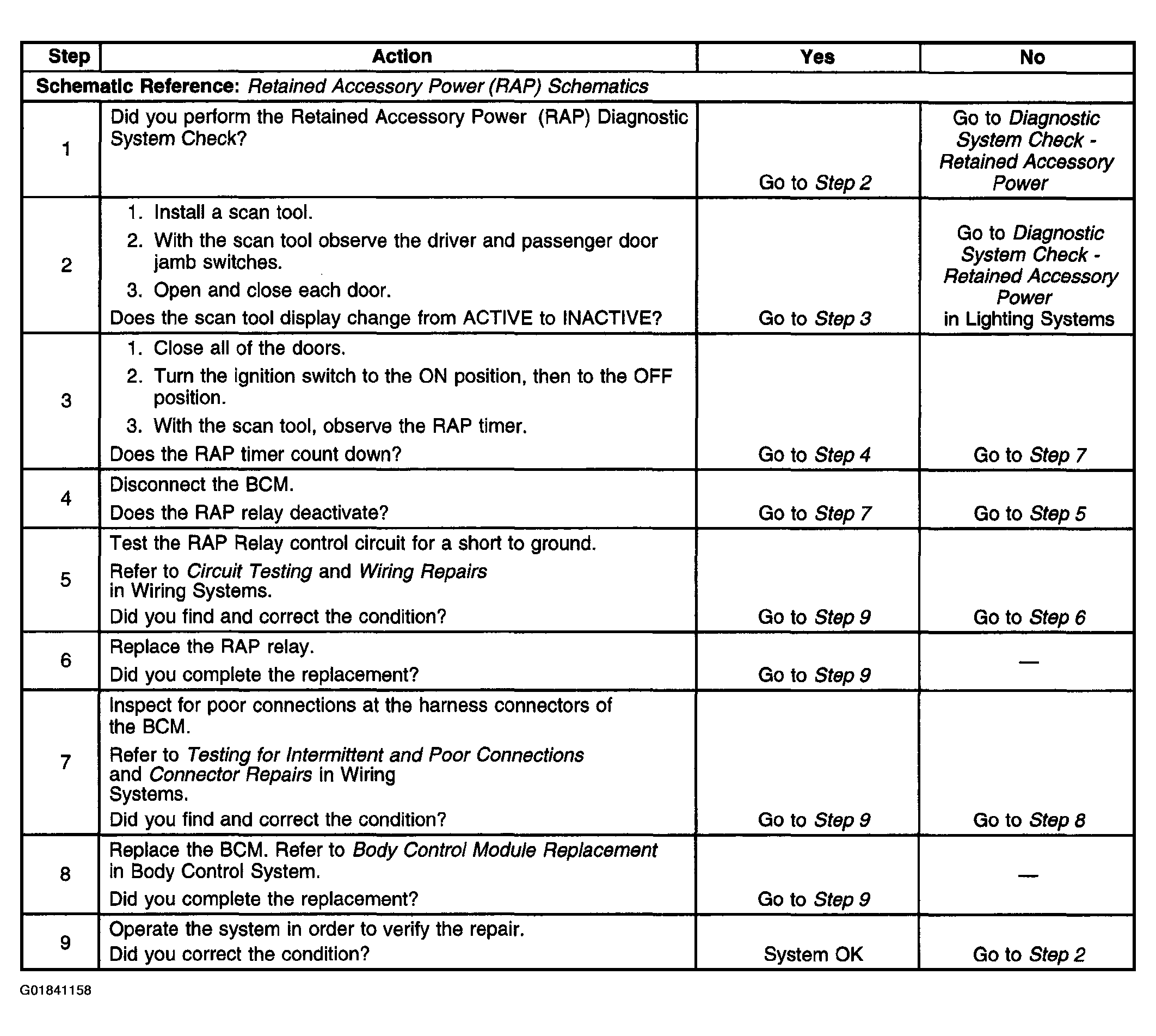

Fig 1: Retained Accessory Power (RAP) On After Time-out
G01841158Courtesy of GENERAL MOTORS CORP.
