Retained Accessory Power (RAP) Inoperative

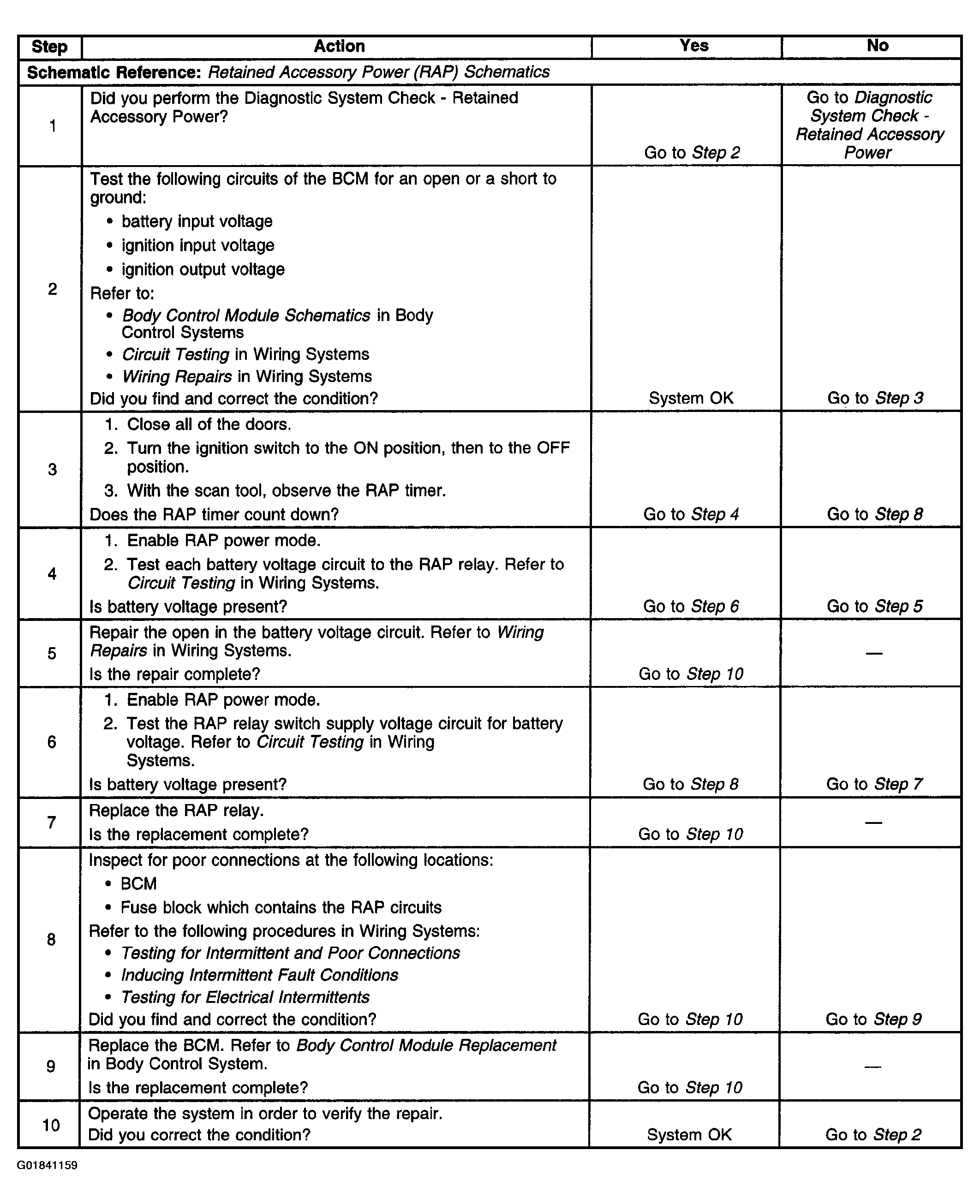

Fig 1: Retained Accessory Power (RAP) Inoperative

G01841159

Courtesy of GENERAL MOTORS CORP.
