Schematic & Routing Diagrams

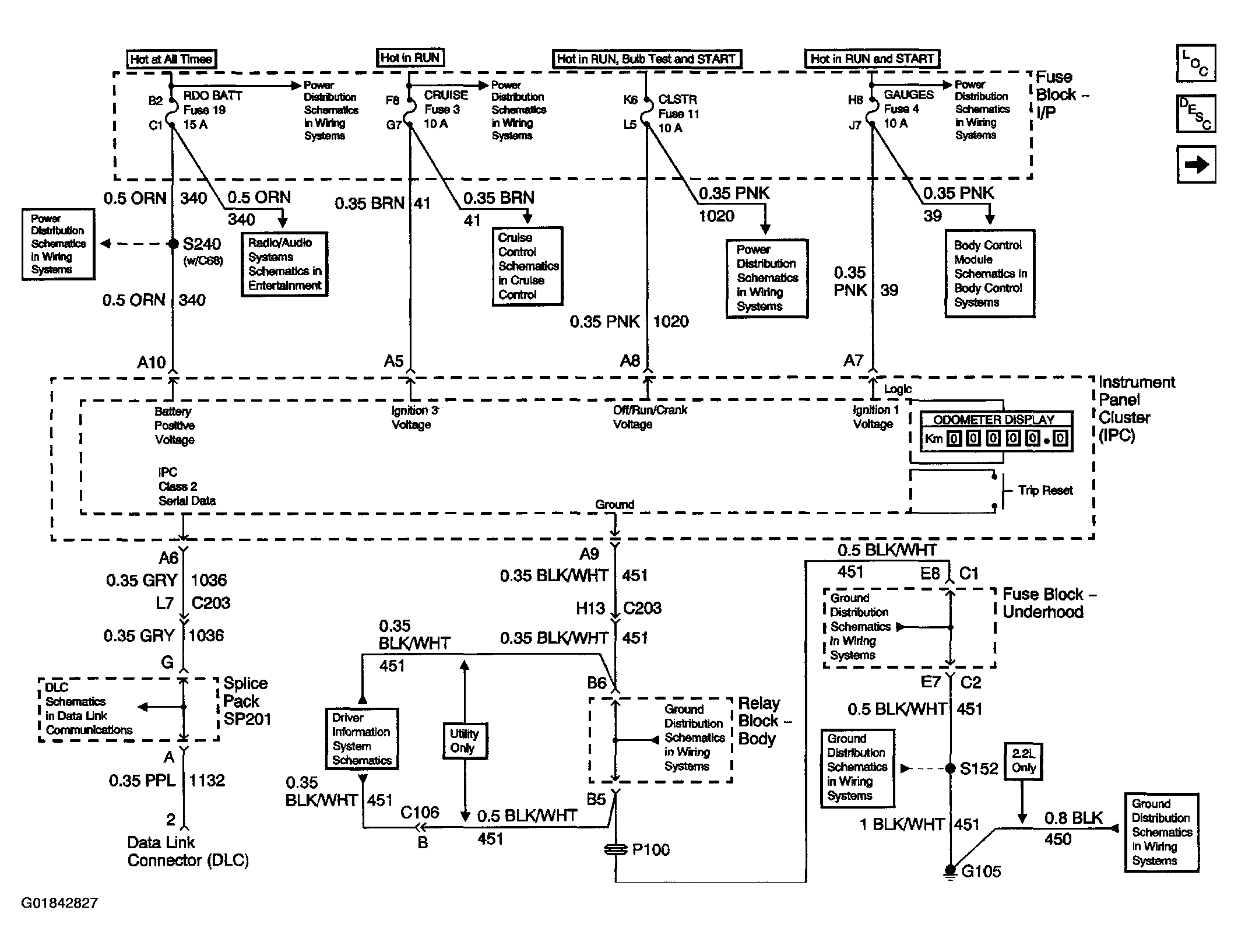

Fig 1: Instrument Cluster Schematics (Power and Ground)

Courtesy of GENERAL MOTORS CORP.

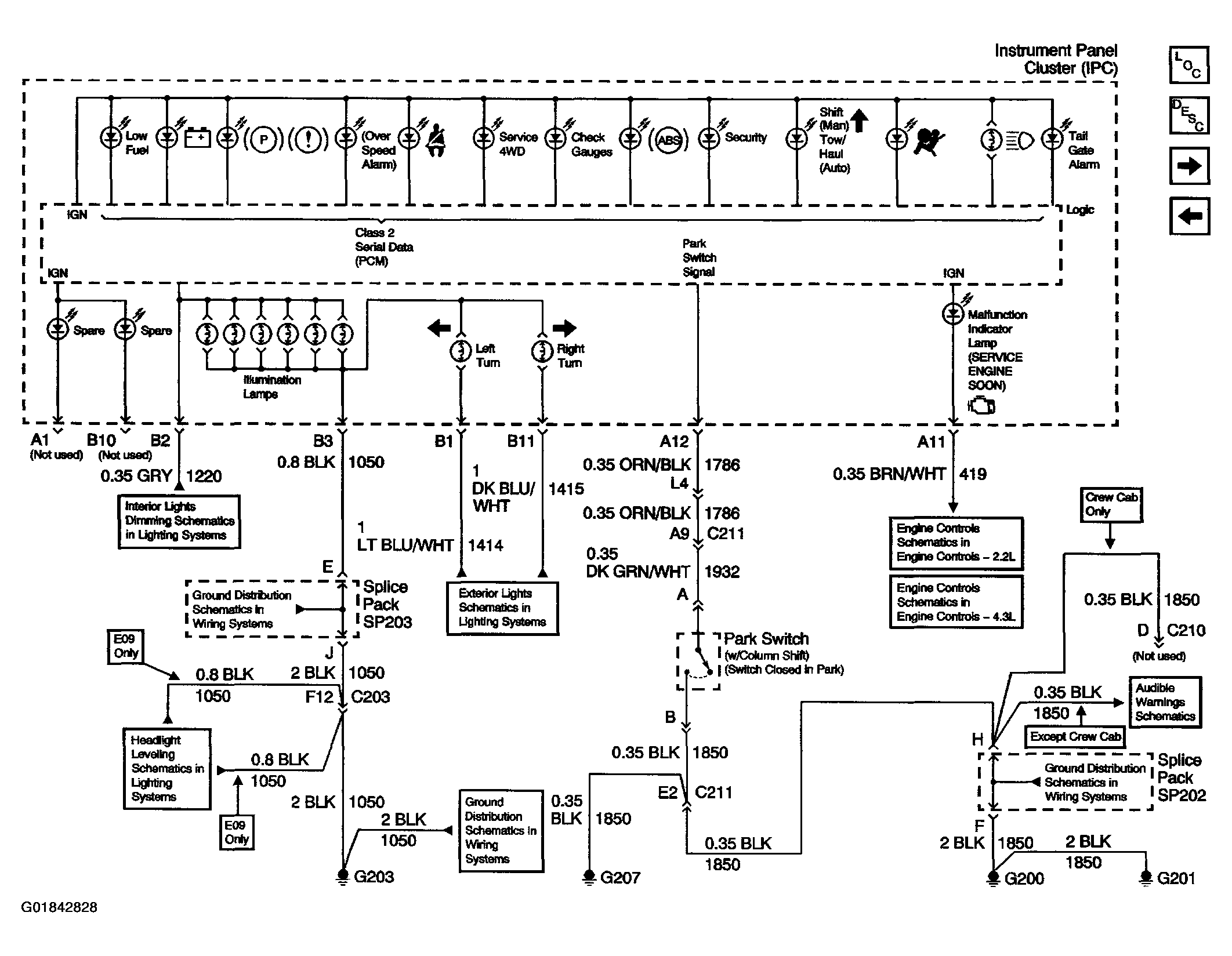

Fig 2: Instrument Cluster Schematics (Indicators)

Courtesy of GENERAL MOTORS CORP.

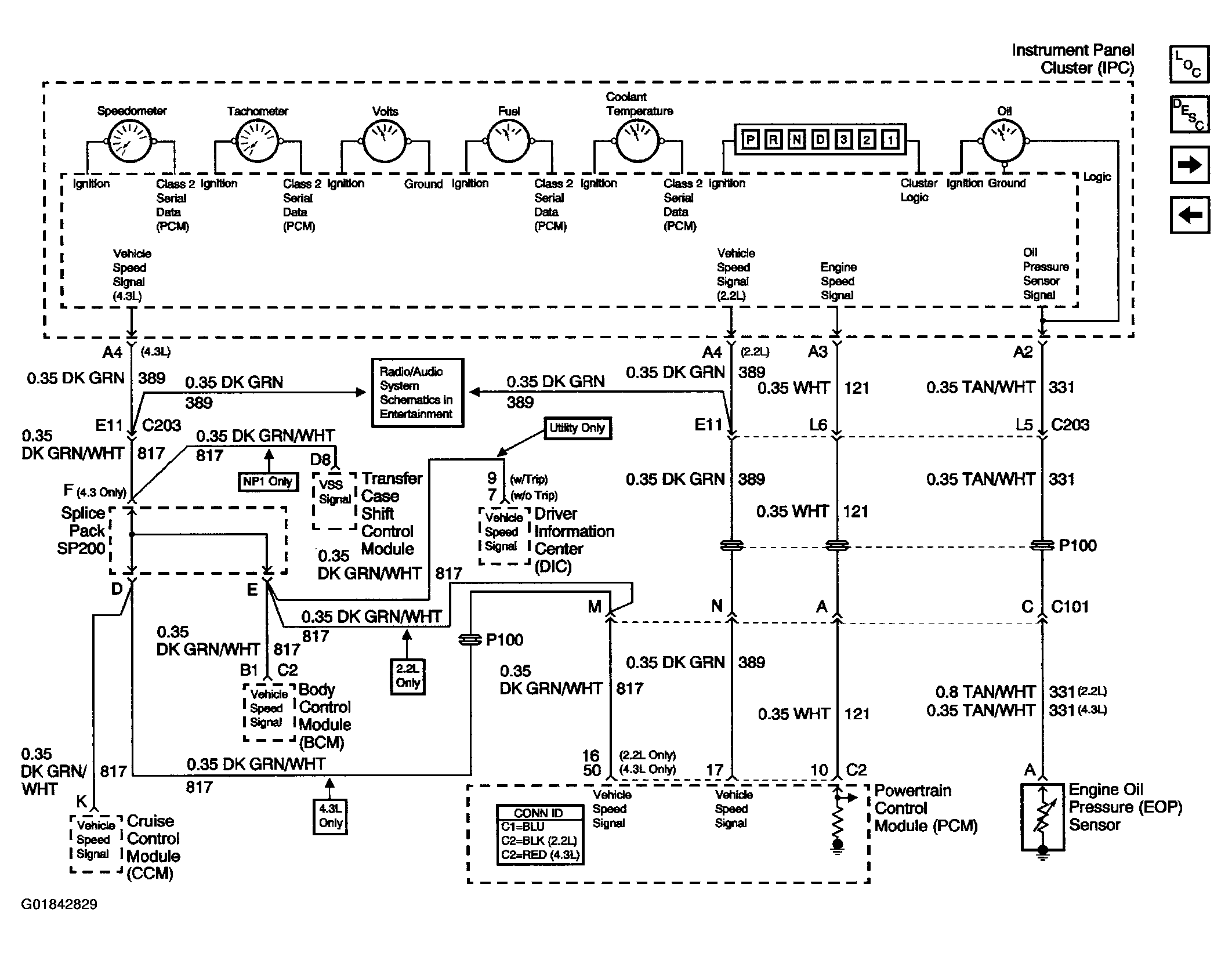

Fig 3: Instrument Cluster Schematics (Gages)

Courtesy of GENERAL MOTORS CORP.

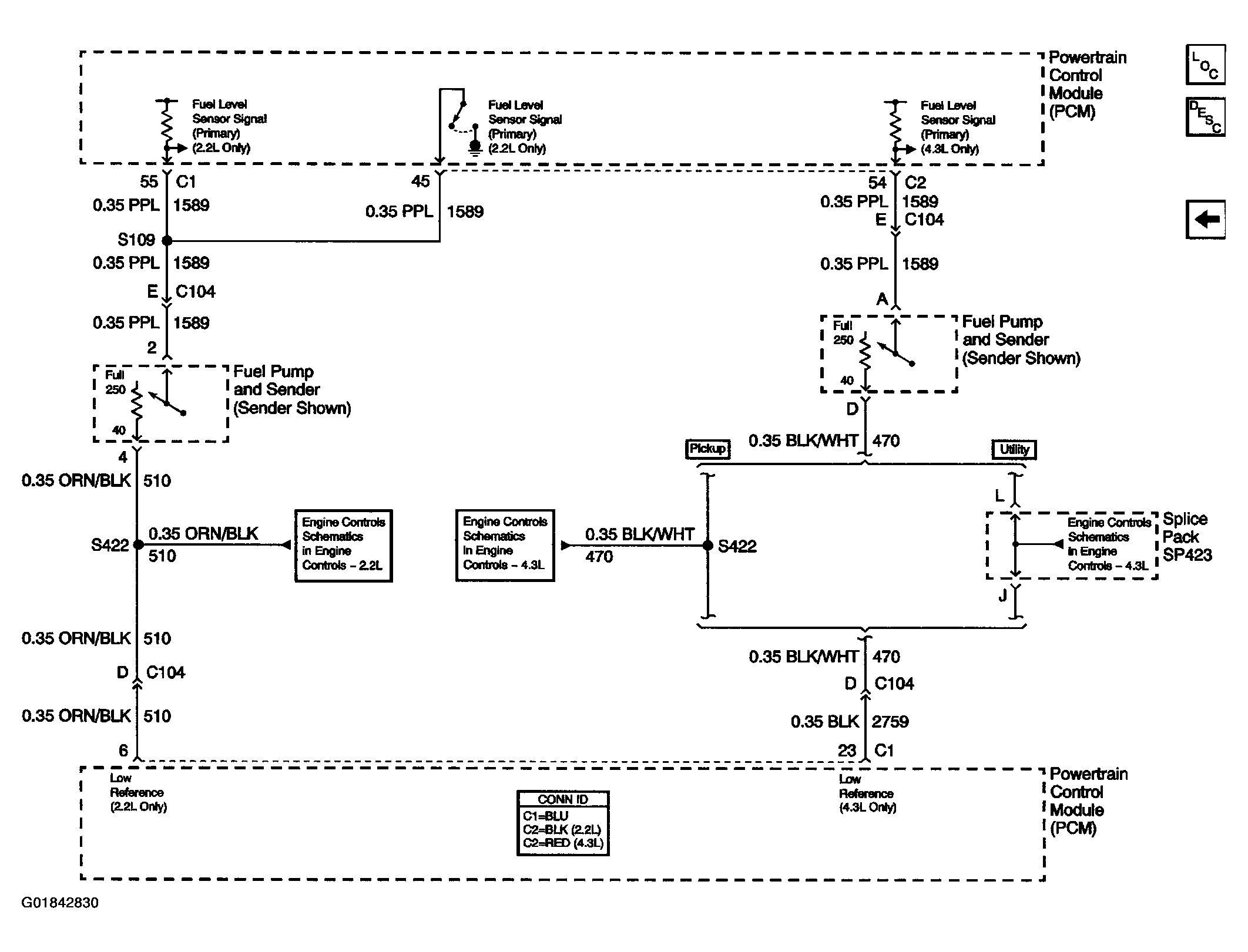

Fig 4: Instrument Cluster Schematics (Fuel Level Sensor Signal)

Courtesy of GENERAL MOTORS CORP.

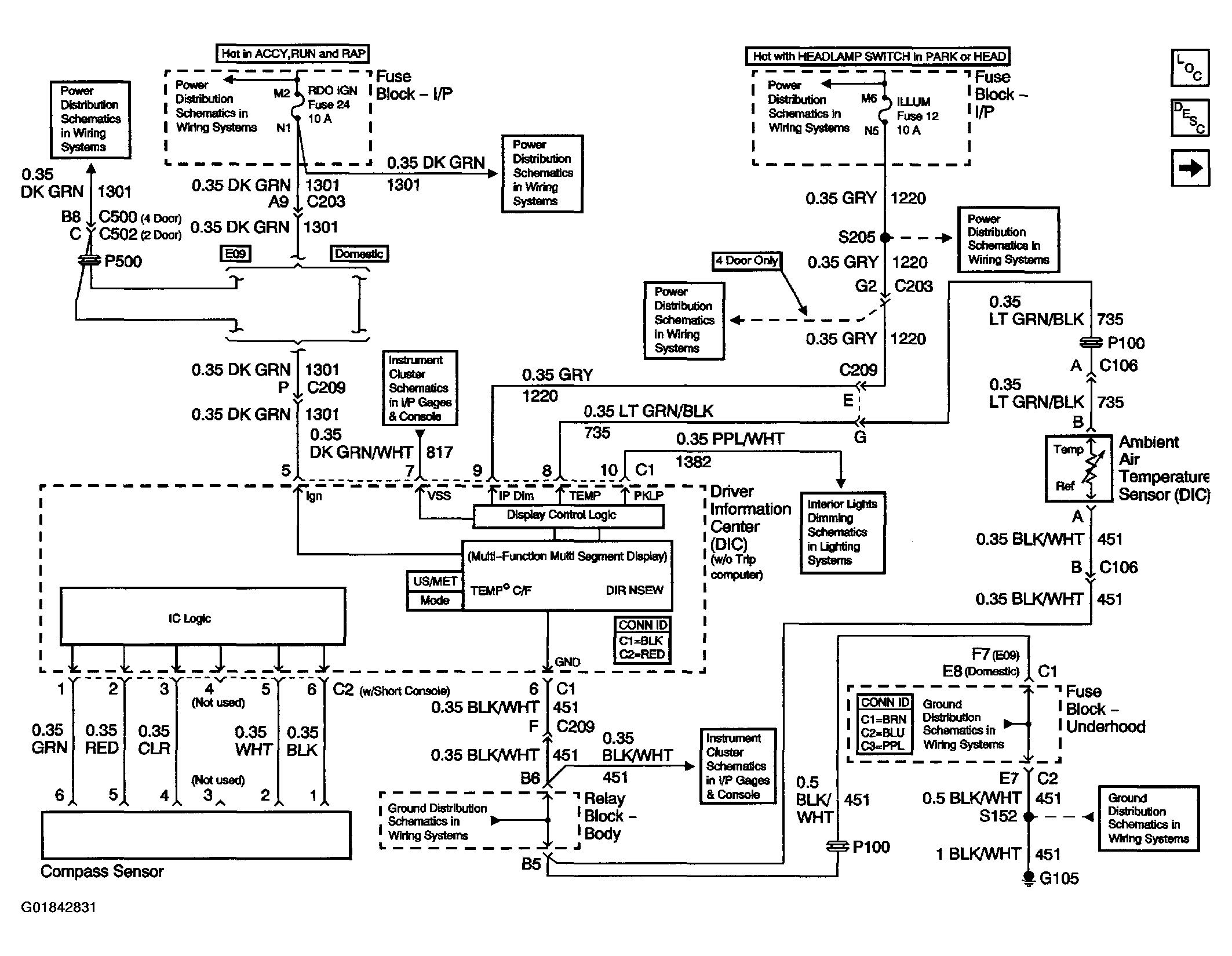

Fig 5: Driver Information System Schematics (Power & Ground - w/o Trip Computer)

Courtesy of GENERAL MOTORS CORP.

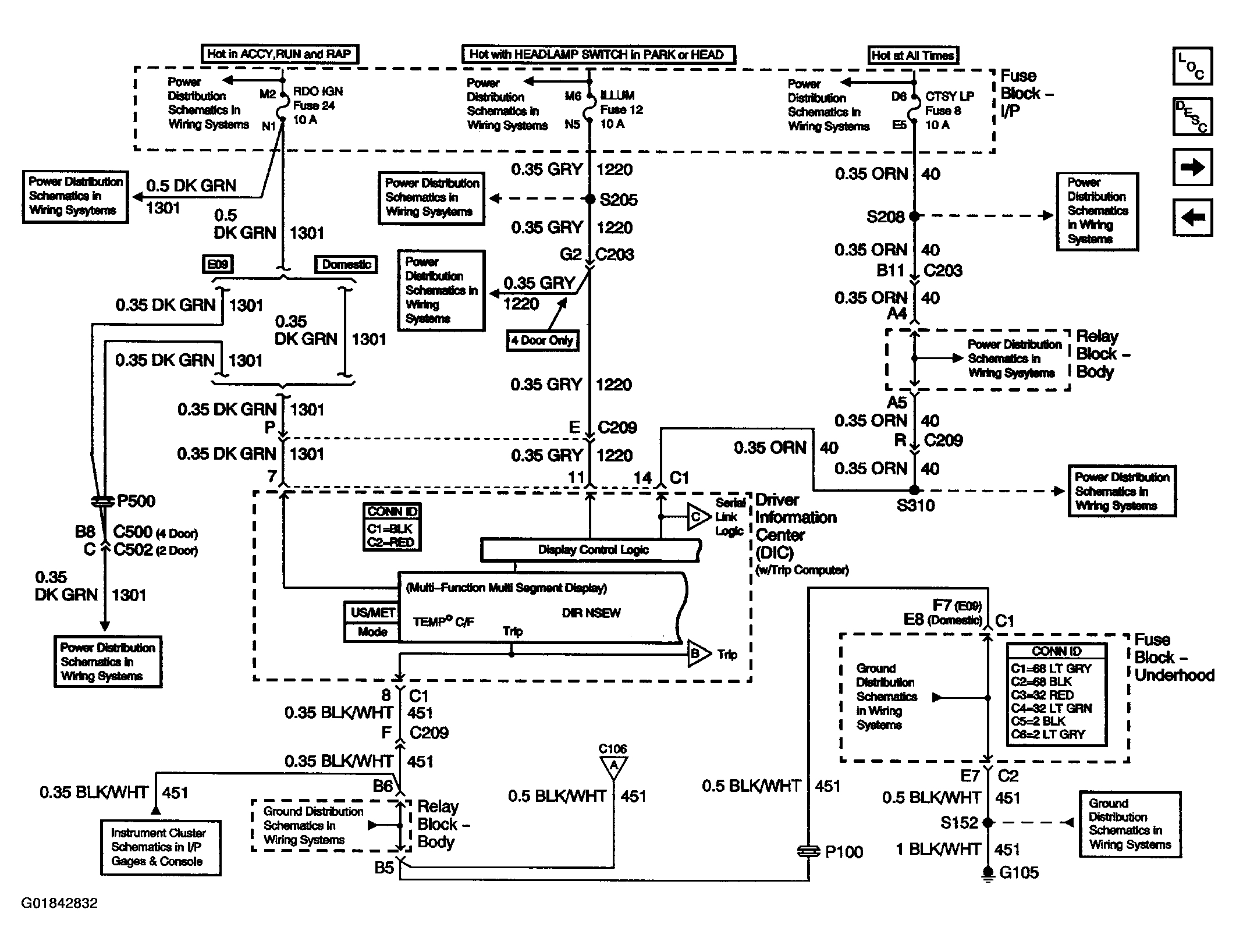

Fig 6: Driver Information System Schematics (Power & Ground - w/ Trip Computer)

Courtesy of GENERAL MOTORS CORP.

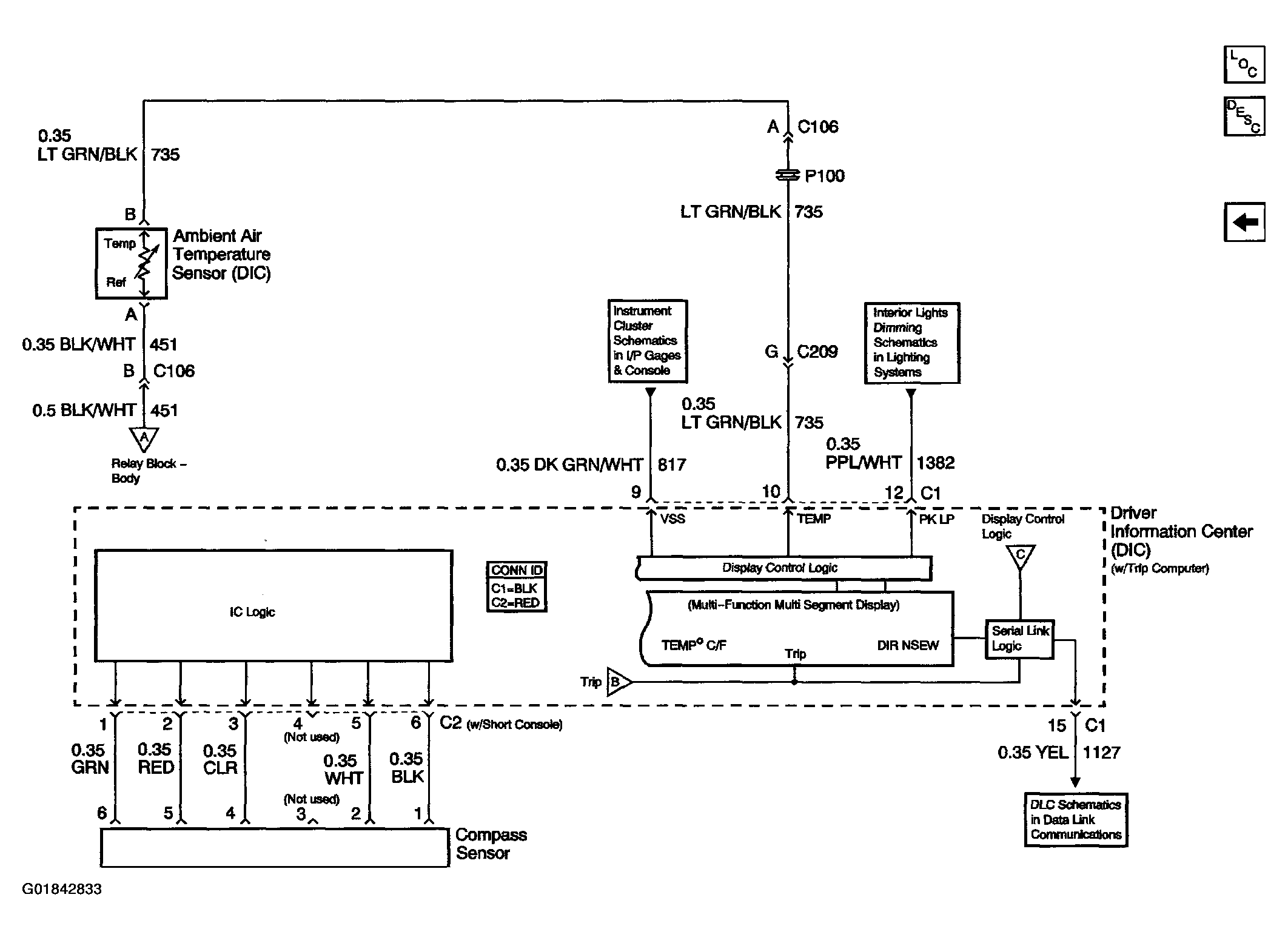

Fig 7: Driver Information System Schematics (Air Temperature Sensor - Outside - w/ Trip Computer)

Courtesy of GENERAL MOTORS CORP.

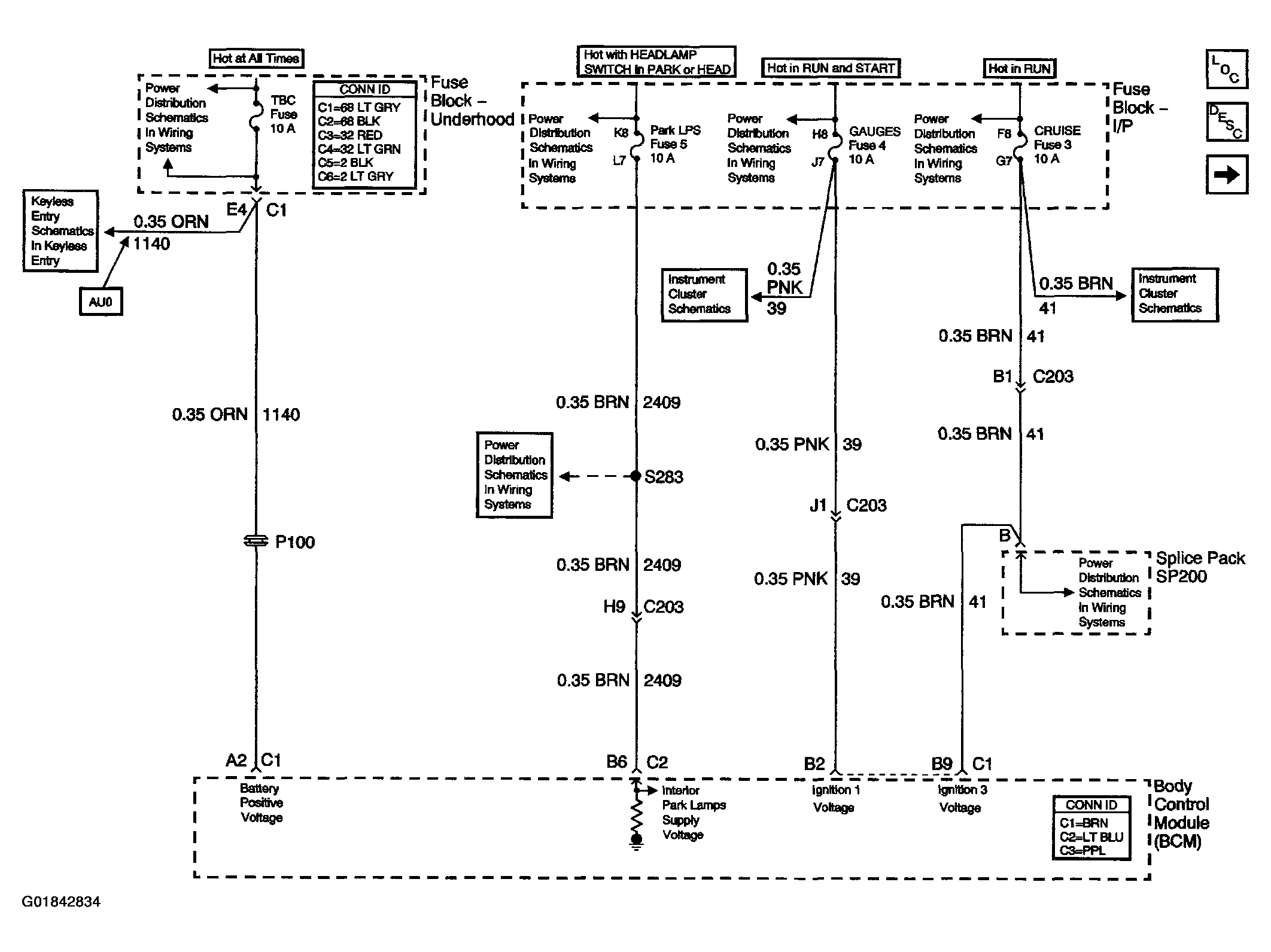

Fig 8: Audible Warnings Schematics (TBC, PARK LPS, GAGES & CRUISE Fuses)

Courtesy of GENERAL MOTORS CORP.

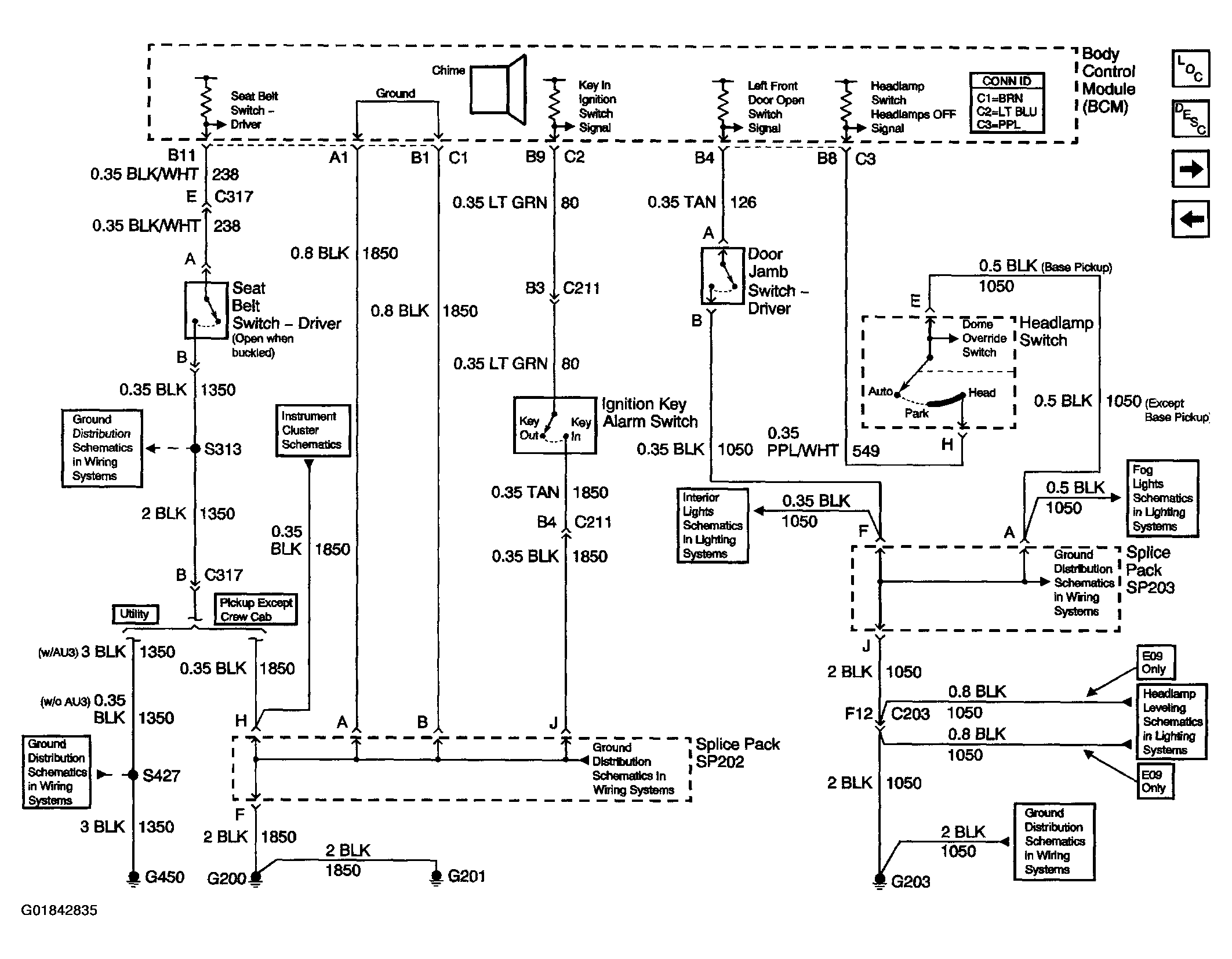

Fig 9: Audible Warnings Schematics (Seat Belt Switch, Ignition Key Alarm Switch, Door Jamb Switch & Headlamp Switch)

Courtesy of GENERAL MOTORS CORP.

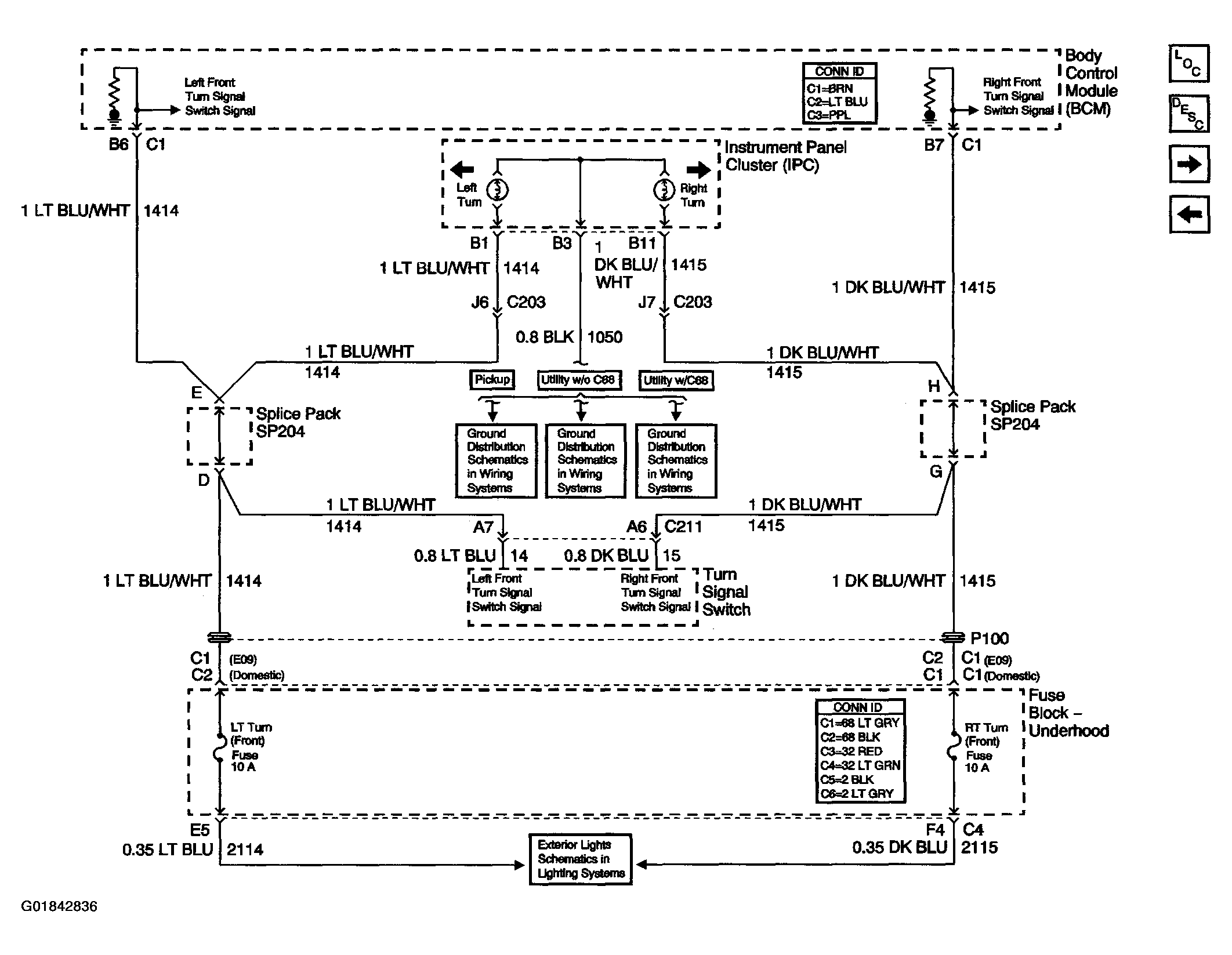

Fig 10: Audible Warnings Schematics (Turn Signals)

Courtesy of GENERAL MOTORS CORP.

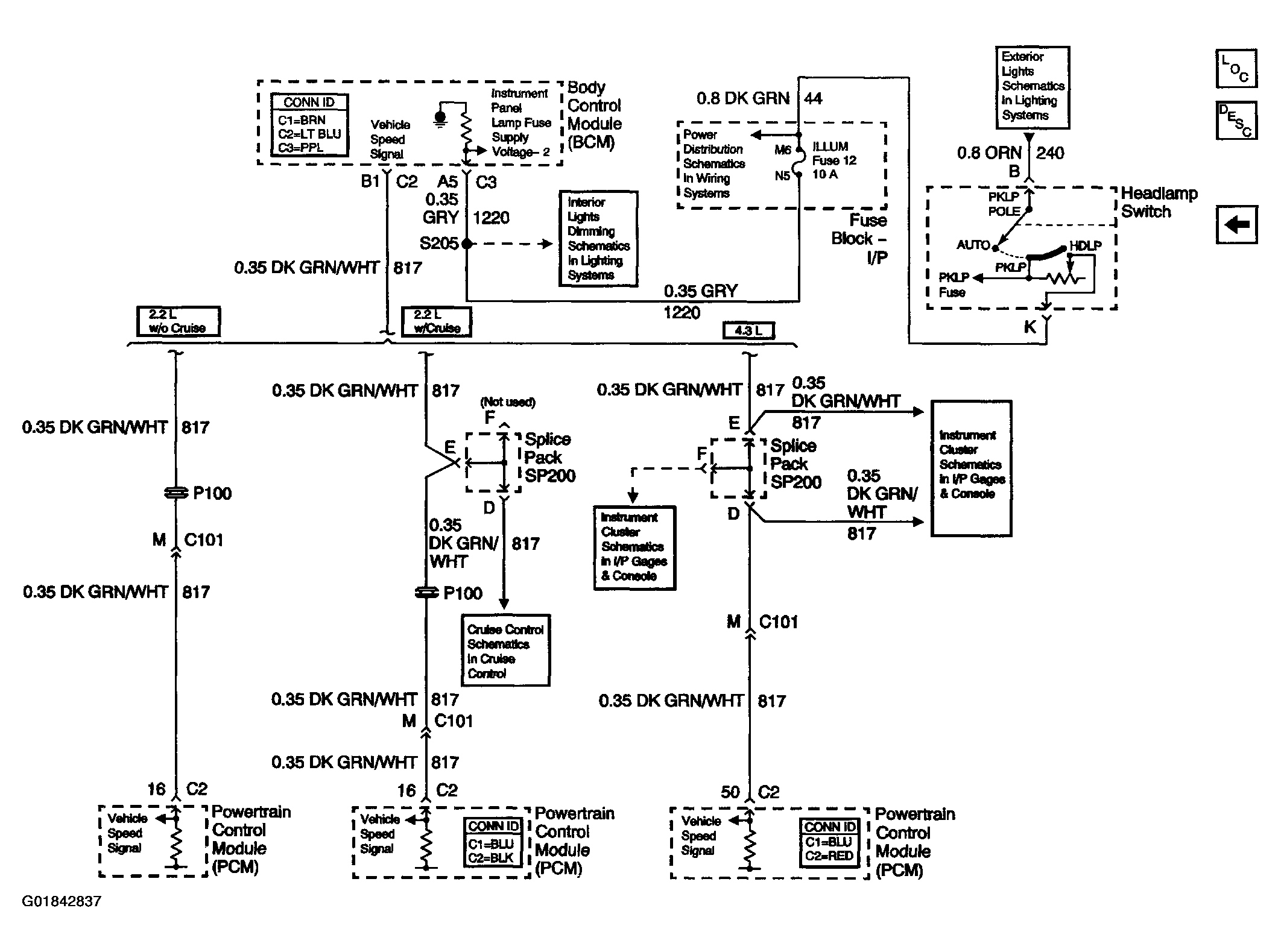

Fig 11: Audible Warnings Schematics (BCM, PCM & Headlamp Switch)

Courtesy of GENERAL MOTORS CORP.
