Installation Procedure

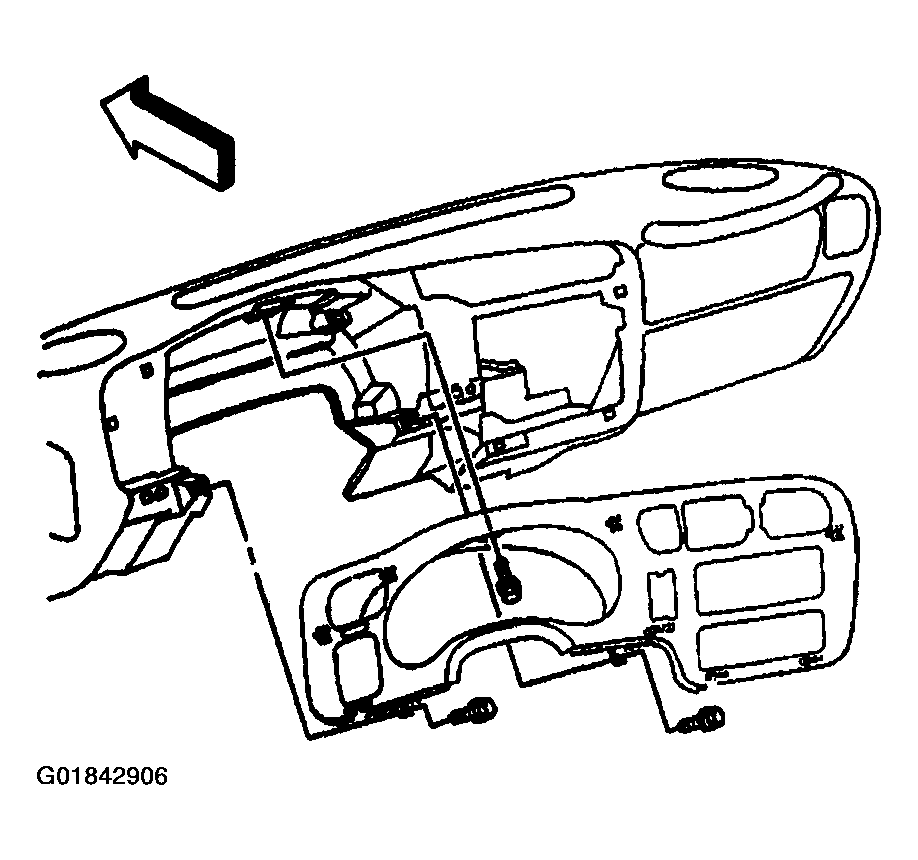

- Position the instrument panel accessory trim plate in order to install the control switches.
- Install the selectable 4WD switch, if equipped. Refer to TRANSFER CASE SHIFT CONTROL SWITCH REPLACEMENT in TRANSFER CASE - NVG 233-NP1 (TWO SPEED SELECTABLE) or TRANSFER CASE SHIFT CONTROL SWITCH REPLACEMENT in TRANSFER CASE - NVG 236/246-NP8 (TWO SPEED AUTOMATIC).
- Install the inflatable restraint IP module switch. Refer to PASSENGER-SIDE AIR BAG MODULE DISABLE SWITCH in AIR BAG RESTRAINT SYSTEMS.
- Install the headlamp switch. Refer to HEADLAMP SWITCH REPLACEMENT in EXTERIOR LIGHTS article.
- Install the instrument panel accessory trim plate clips to the instrument panel.NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
- Install the screws that retain the instrument panel accessory trim plate to the instrument panel.
Tighten
Tighten the screws to 1.9 N.m (17 lb in).
- Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
- Install the left instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
