Installation Procedure

  1. Install the knee bolster trim panel to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the screws that retain the knee bolster trim panel to the instrument panel.

    Tighten

    • Tighten the TORX® screws to 9 N.m (80 lb in).
    • Tighten the hex head screws to 1.9 N.m (17 lb in).

  3. Install the screw that retains the courtesy lamp to the knee bolster. Refer to COURTESY LAMP REPLACEMENT - INSTRUMENT PANEL (LOWER) in EXTERIOR LIGHTS article.
  4. Install the park brake release cable to the park brake lever. Refer to PARK BRAKE CABLE -- FRONT in DISC & DRUM article.
  5. Install the lower instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - IP LOWER .
  6. Install the left-side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .

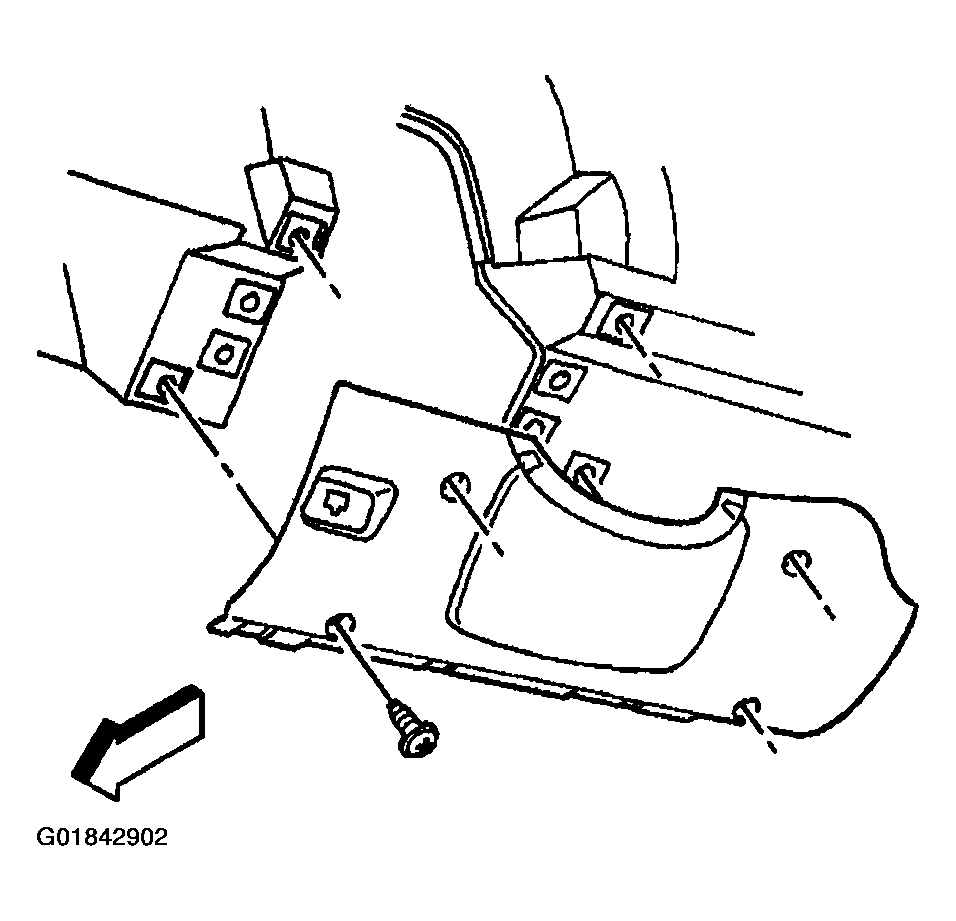

    Fig 1: Locating Knee Bolster Trim Panel
    G01842902Courtesy of GENERAL MOTORS CORP.
