Installation Procedure

  1. Install the knee bolster to the studs.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the nuts that retain the knee bolster to the steering column support.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  3. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
  4. Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  5. Install the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .

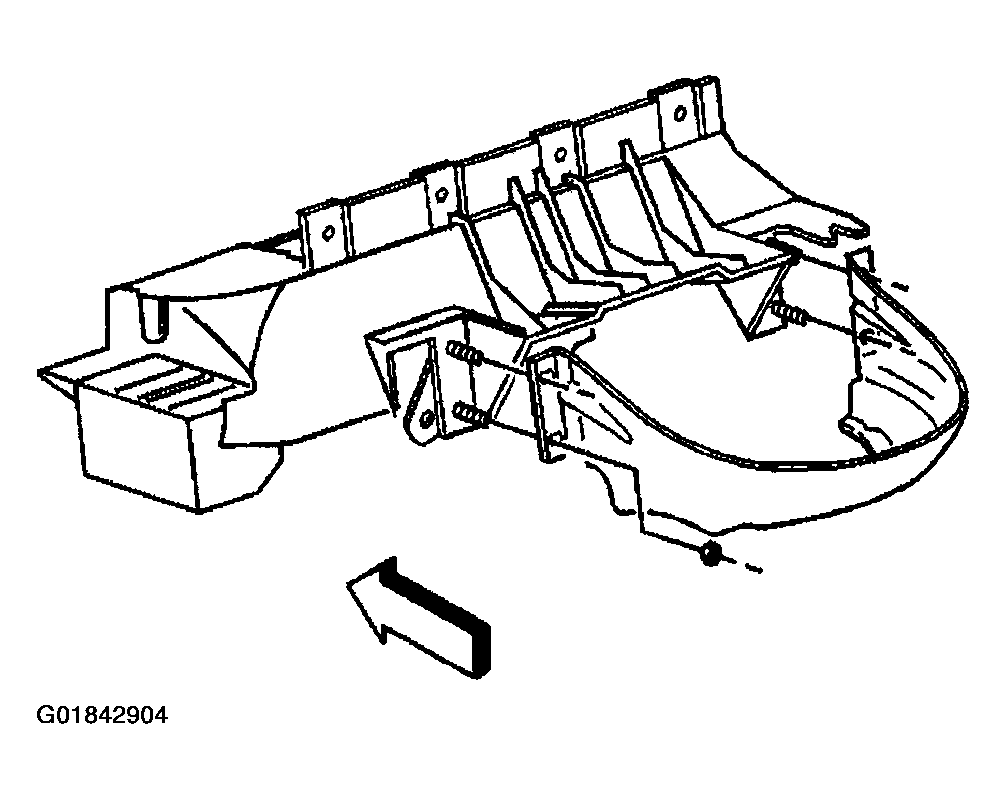

    Fig 1: Locating Knee Bolster
    G01842904Courtesy of GENERAL MOTORS CORP.
