Installation Procedure

  1. Install the instrument panel cluster to the instrument panel.
  2. Connect the electrical connector to the instrument panel cluster.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the screws to instrument panel cluster.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  4. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .

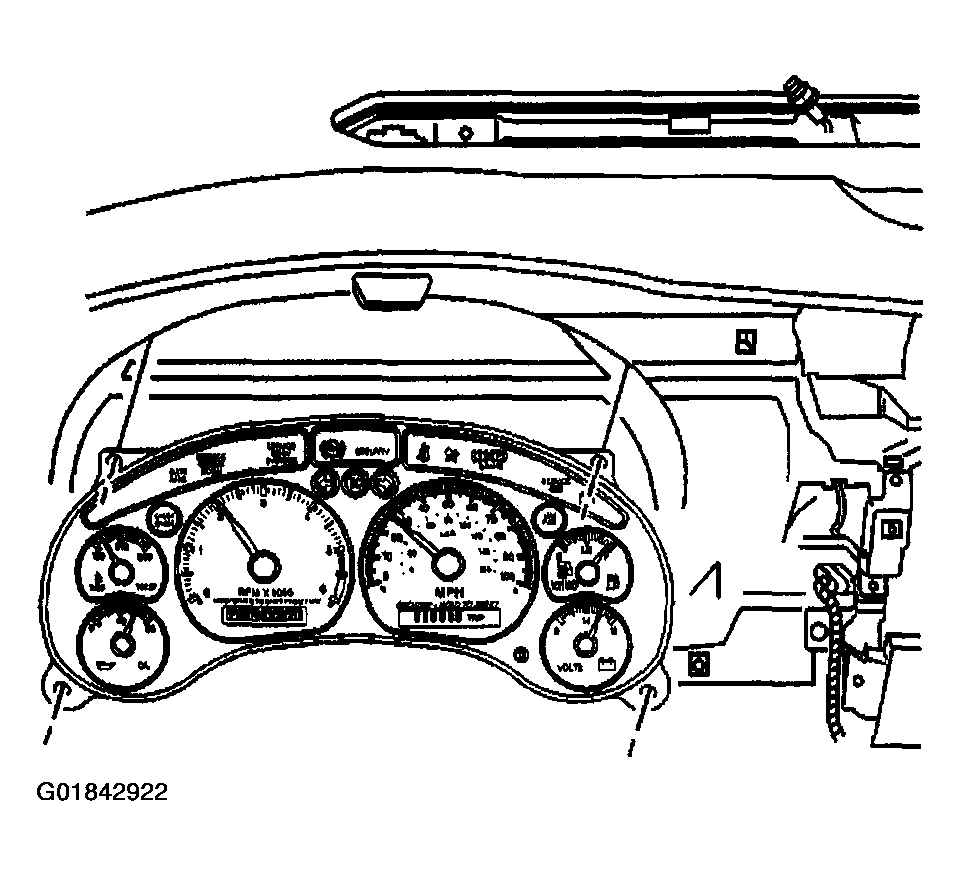

    Fig 1: Locating Instrument Panel Cluster
    G01842922Courtesy of GENERAL MOTORS CORP.
