Removal Procedure

  1. Remove the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Gently pry the lens retaining tabs away from the cluster housing.
  3. Remove the lens from the cluster housing.

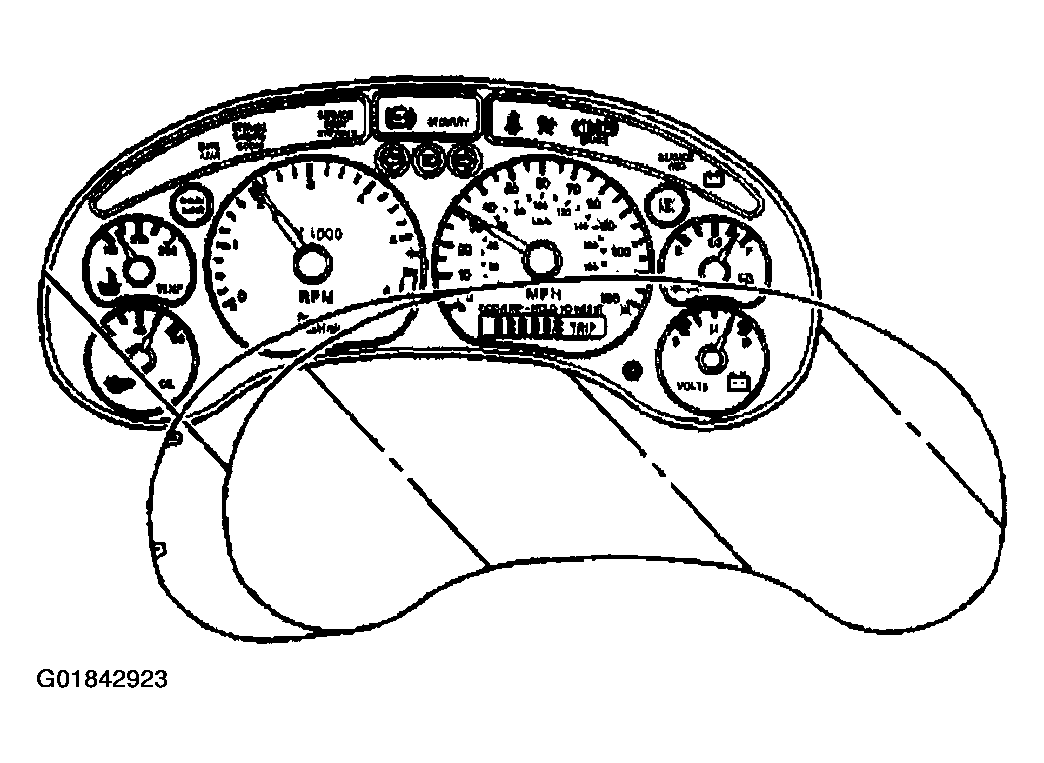

    Fig 1: Locating Instrument Panel Cluster Lens
    G01842923Courtesy of GENERAL MOTORS CORP.
