Installation Procedure

  1. Install the lens to the cluster housing by snapping it into place.
  2. Install the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

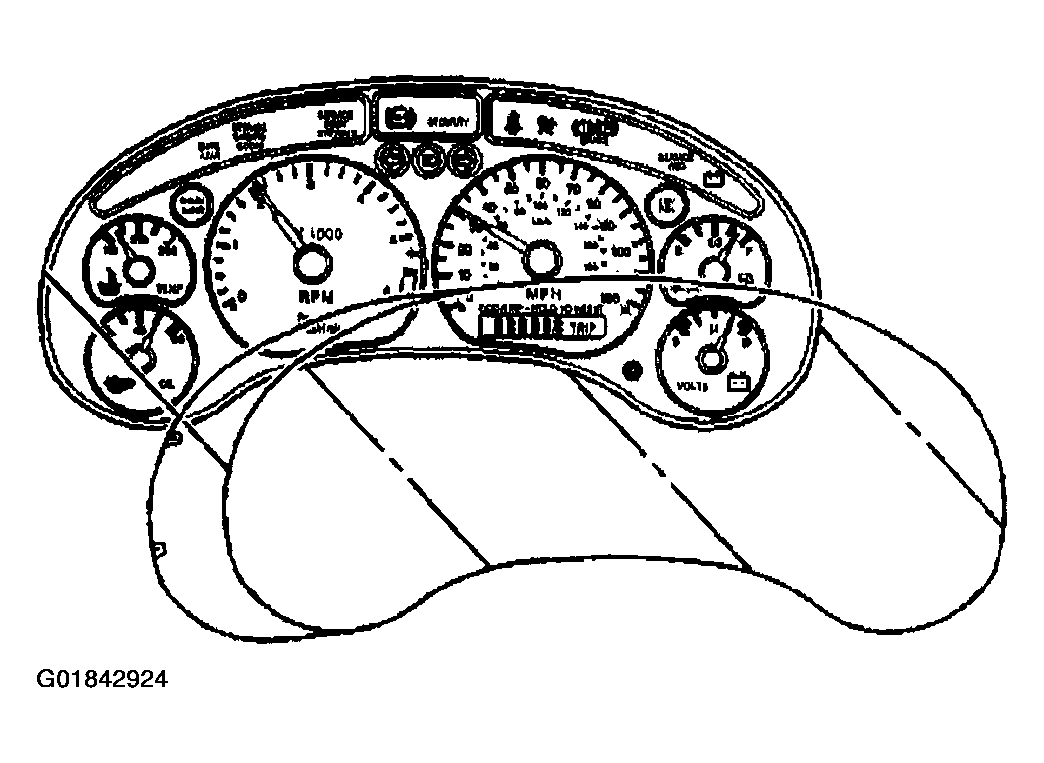

    Fig 1: Locating Instrument Panel Cluster Lens
    G01842924Courtesy of GENERAL MOTORS CORP.
