Removal Procedure

  1. Remove the screw at the front of the console that retains the console to the roof.
  2. Pull downward at the rear of the console in order to remove the console from the roof.
  3. Disconnect the electrical connections as needed.

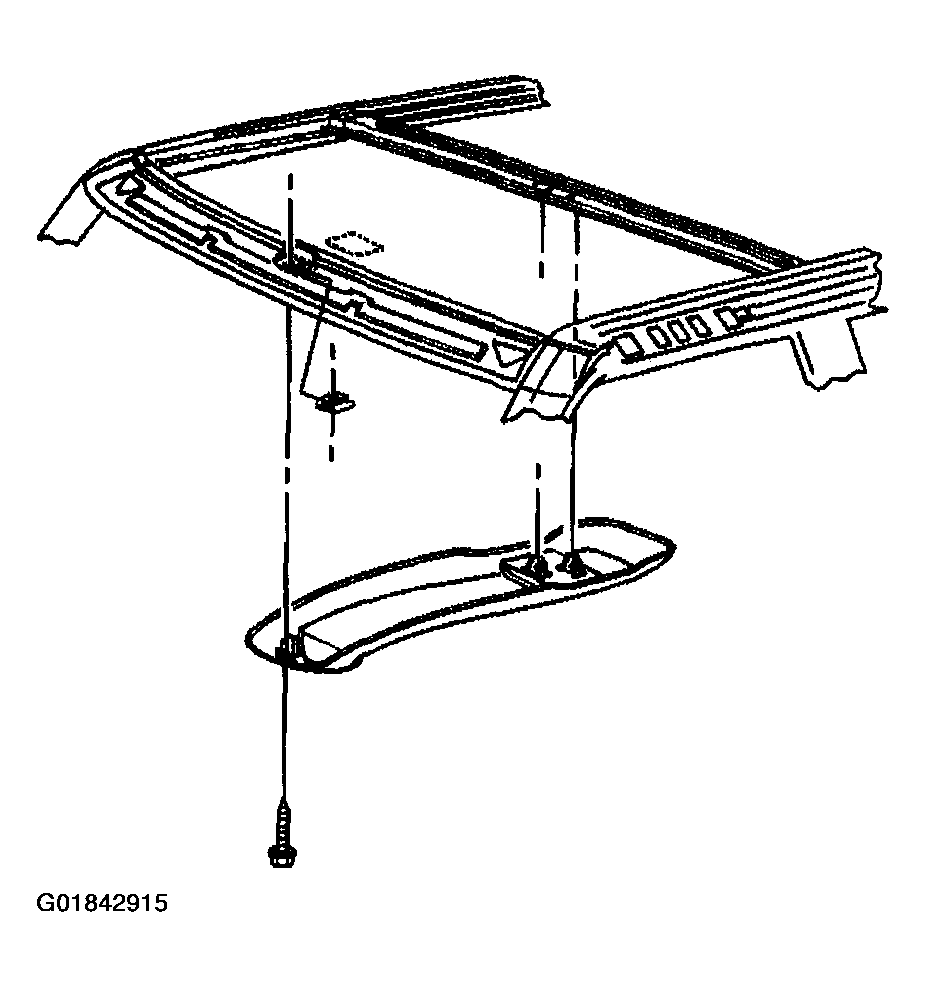

    Fig 1: Locating Console-To-Roof Screw
    G01842915Courtesy of GENERAL MOTORS CORP.
