Installation Procedure

  1. Connect the electrical connections as needed.
  2. Insert the mounting tabs into the roof panel and push upward on the rear of the console in order to install the console to the roof.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the screw at the front of the console that retains the console to the roof.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

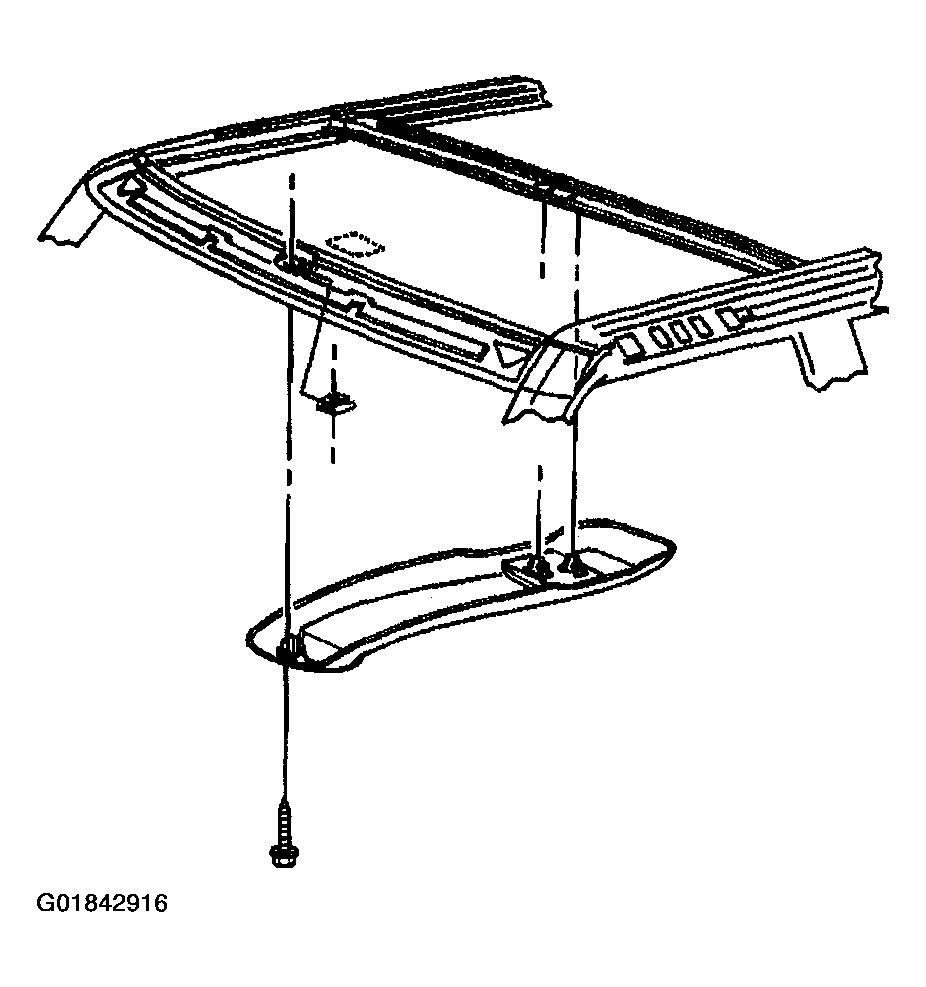

    Fig 1: Locating Console-To-Roof Screw
    G01842916Courtesy of GENERAL MOTORS CORP.
