Removal Procedure

  1. Remove the screw at the front of the console that retains the sunroof console to the roof.
  2. Pull downward on the rear of the console in order to remove the sunroof console from the roof.
  3. Disconnect the electrical connectors (1, 5, 6) as needed.
  4. Remove the screw that retains the sunroof console mounting bracket to the roof.

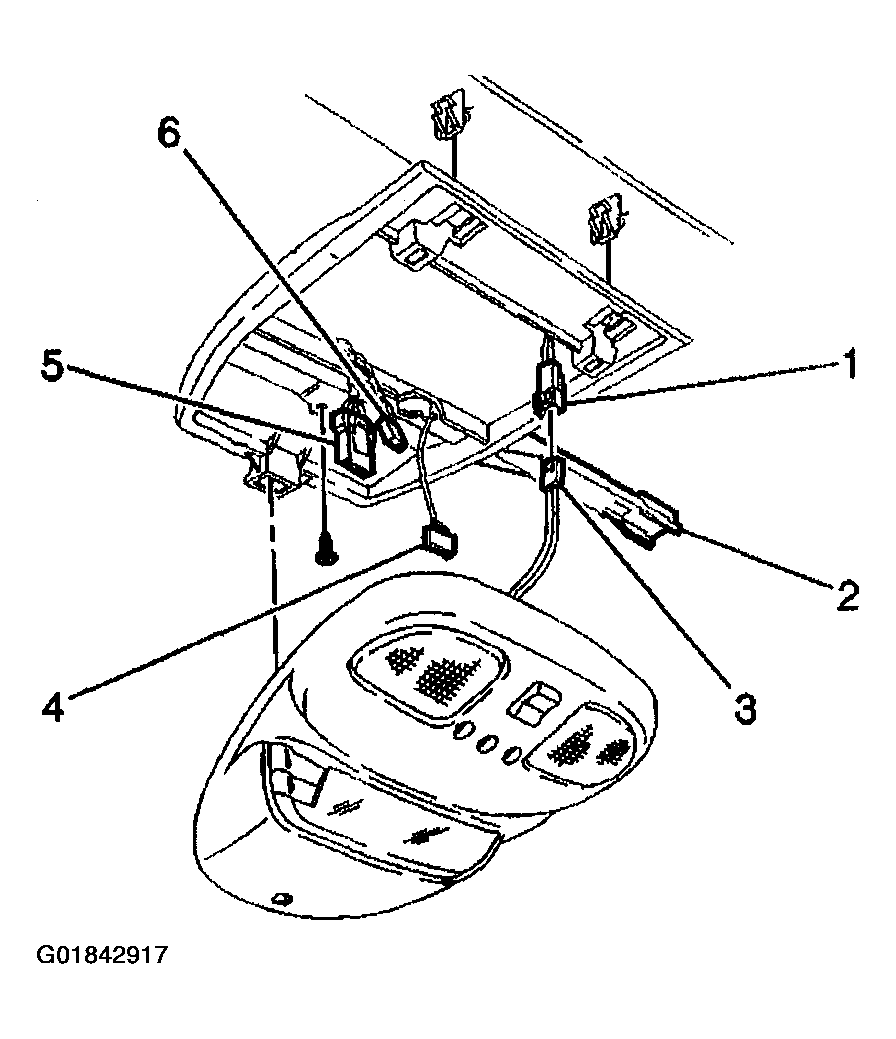

    Fig 1: Identifying Driver Information Center Components
    G01842917Courtesy of GENERAL MOTORS CORP.
