Installation Procedure

  1. Install the electrical connectors (1, 5, 6) as needed.
  2. Insert the console mounting tabs into the mounting bracket and push upward on the rear of the console in order to install the console.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the screw at the front of the console that retains the console to the roof.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

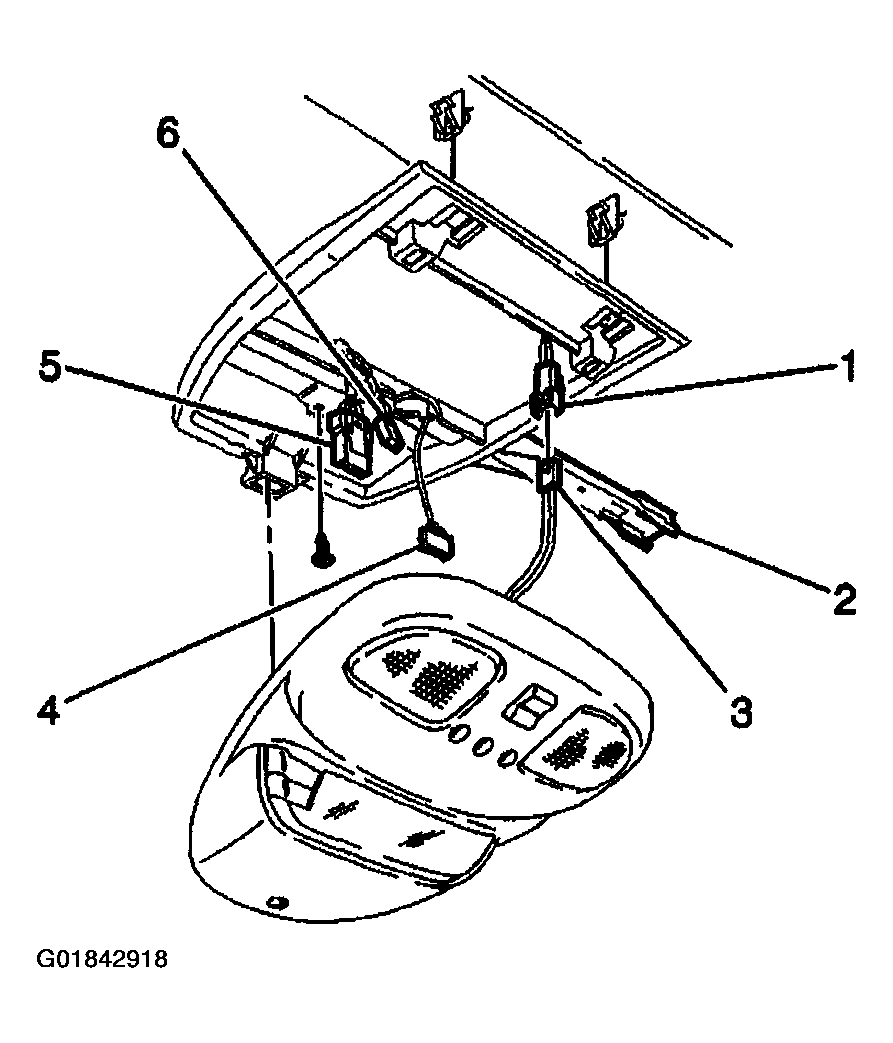

    Fig 1: Identifying Driver Information Center Components
    G01842918Courtesy of GENERAL MOTORS CORP.
