Removal Procedure

Remove the right side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
Push up on the J-spring in order to release the storage compartment door.

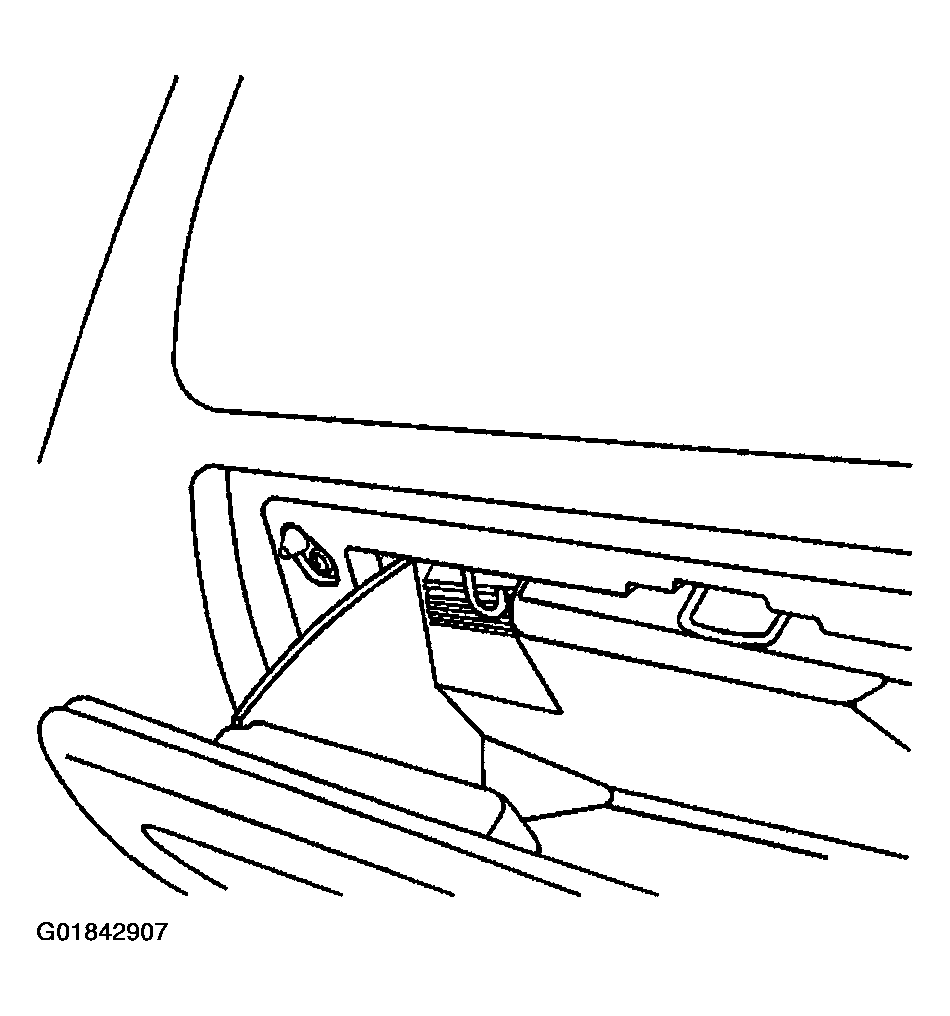

Fig 1: Locating Storage Compartment Door J-Spring
Courtesy of GENERAL MOTORS CORP.
Remove the screws that retain the instrument panel compartment door hinges to the instrument panel.
Remove the instrument panel storage compartment door from the instrument panel.

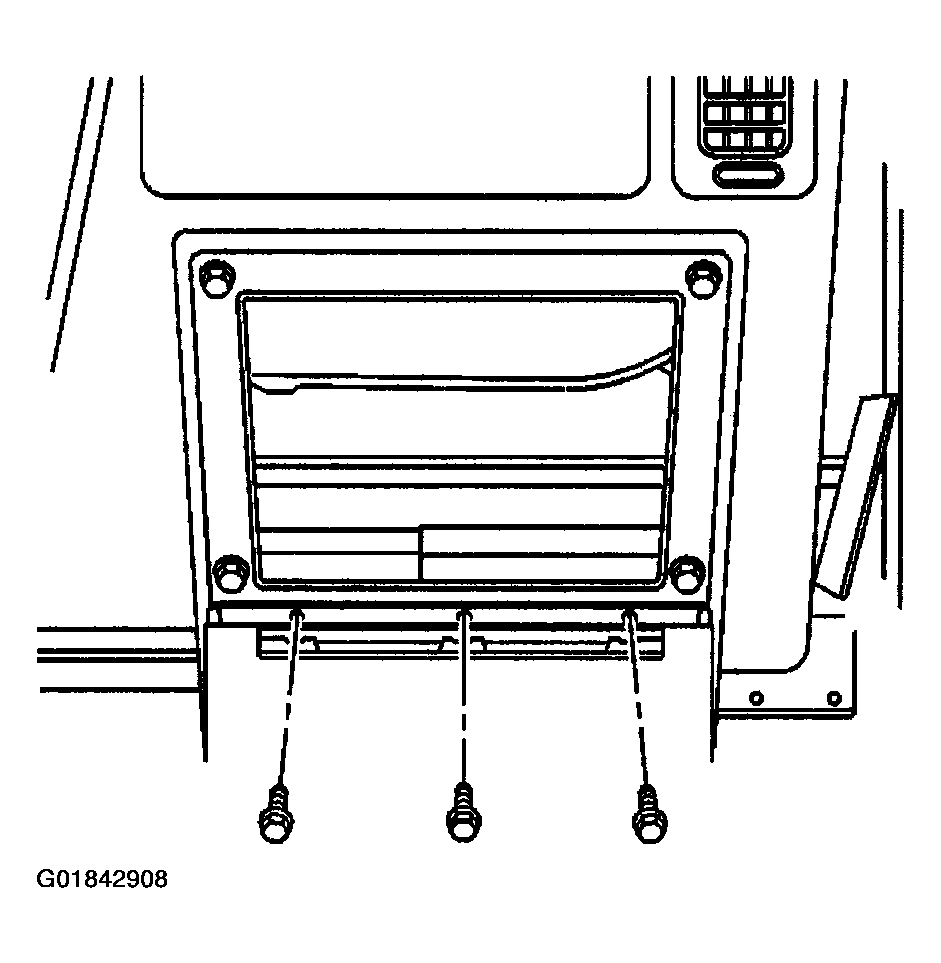

Fig 2: Locating Instrument Panel Compartment Door Hinge Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Remove the screws that retain the instrument panel compartment bezel to the instrument panel.

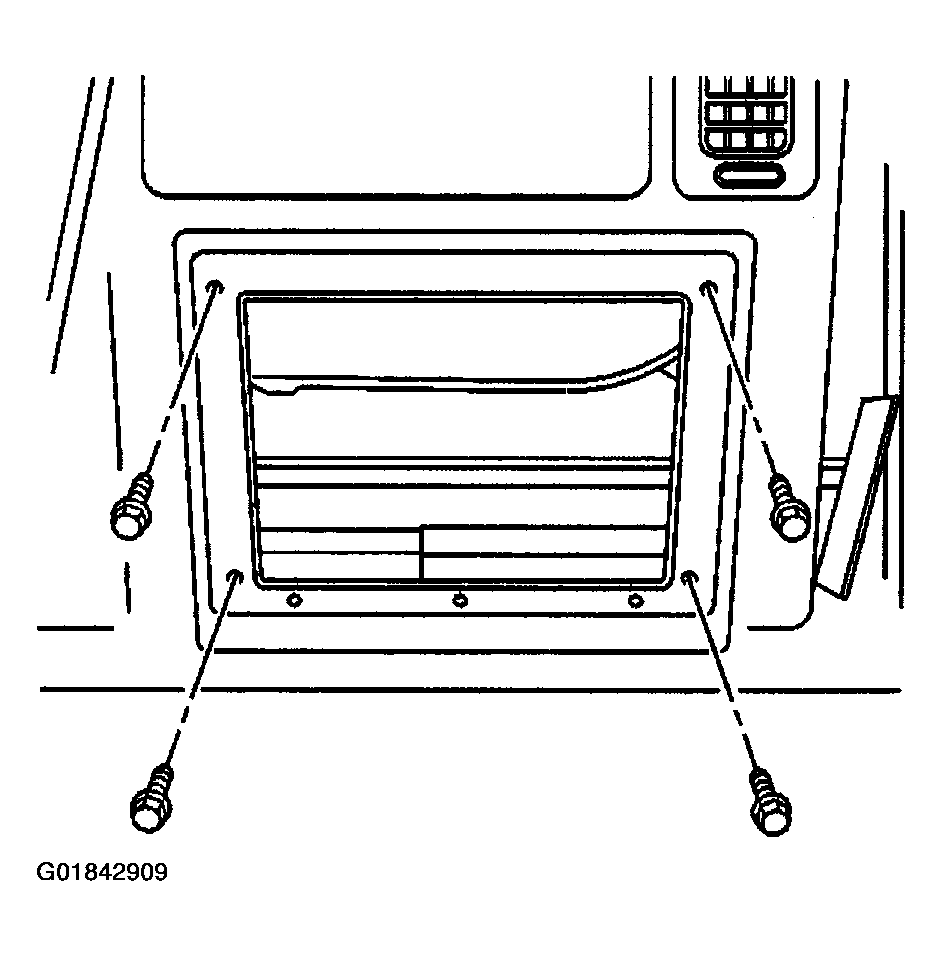

Fig 3: Locating Instrument Panel Compartment Bezel Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Remove the instrument panel compartment bezel from the instrument panel.
Disconnect the electrical connector from the instrument panel compartment lamp and switch assembly.
