Installation Procedure

  1. Connect the electrical connector to the instrument panel compartment lamp and switch assembly.
  2. Install the storage compartment bezel to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the screws that retain the instrument panel compartment bezel to the instrument panel.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

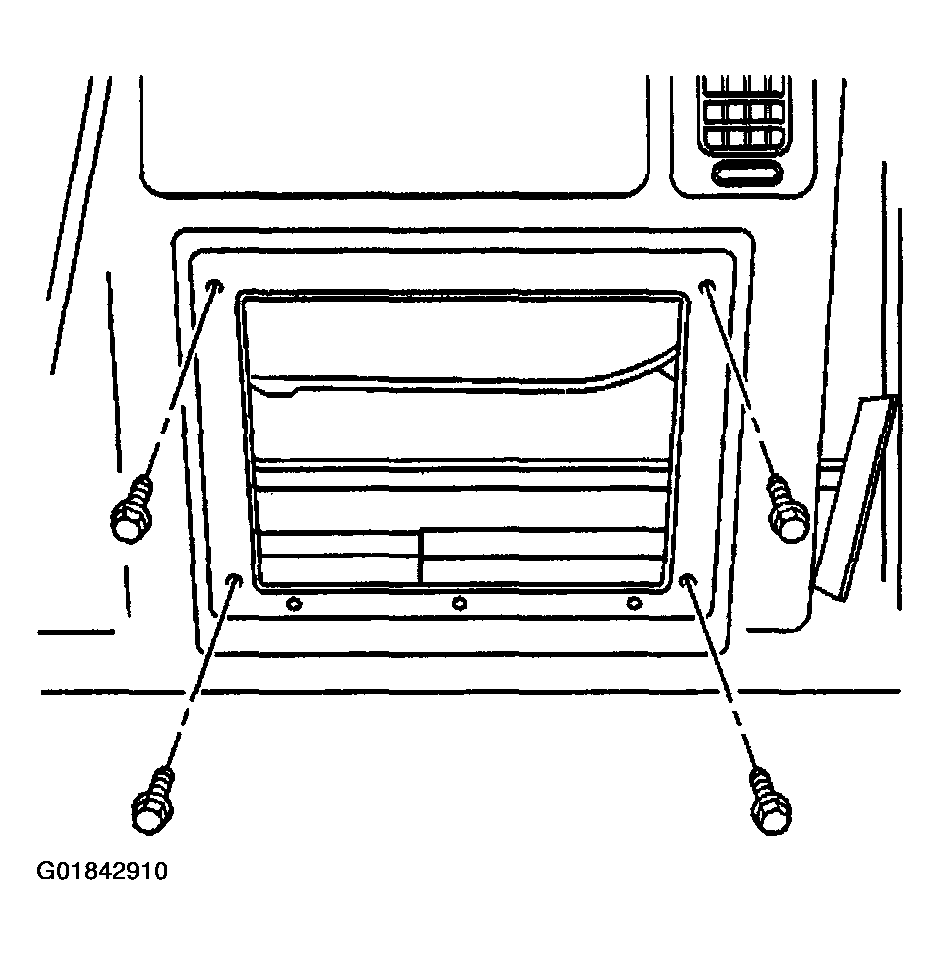

    Fig 1: Locating Instrument Panel Compartment Bezel Retaining Screws
    G01842910Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel storage compartment door to the instrument panel.
  5. Install the screws that retain the instrument panel compartment door hinges to the instrument panel.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

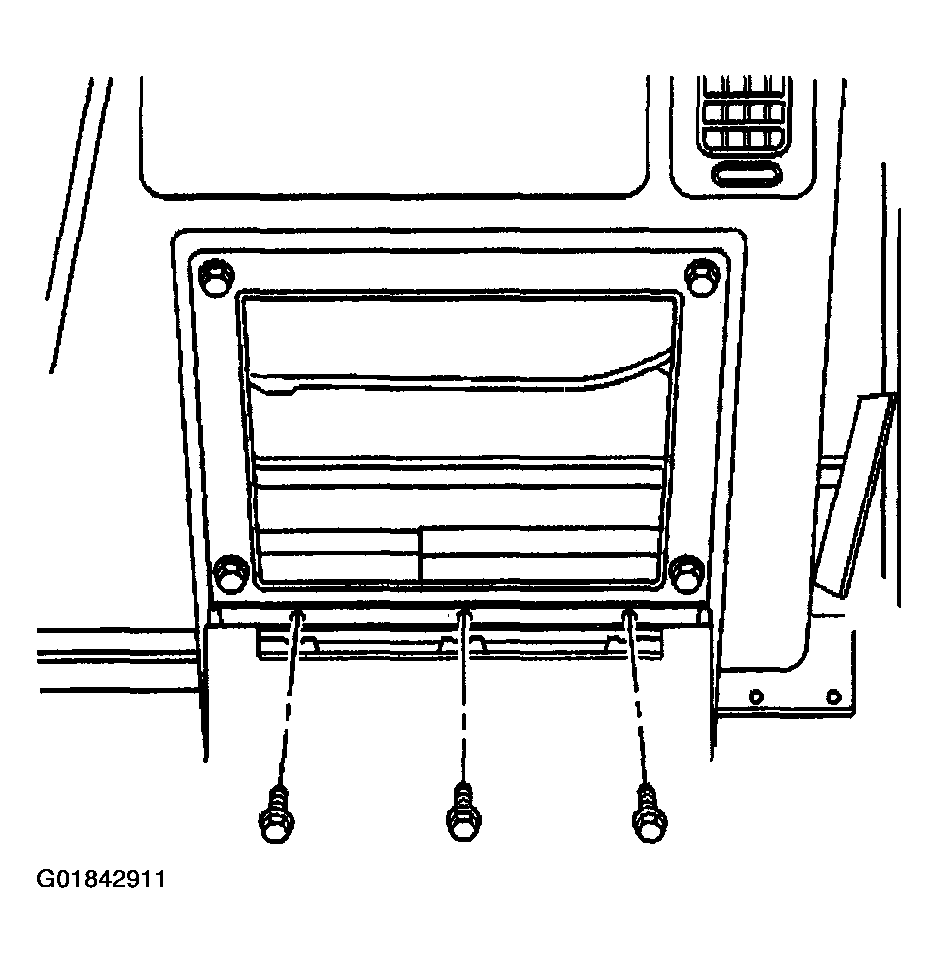

    Fig 2: Locating Instrument Panel Compartment Door Hinge Retaining Screws
    G01842911Courtesy of GENERAL MOTORS CORP.
  6. Push the storage compartment into place.

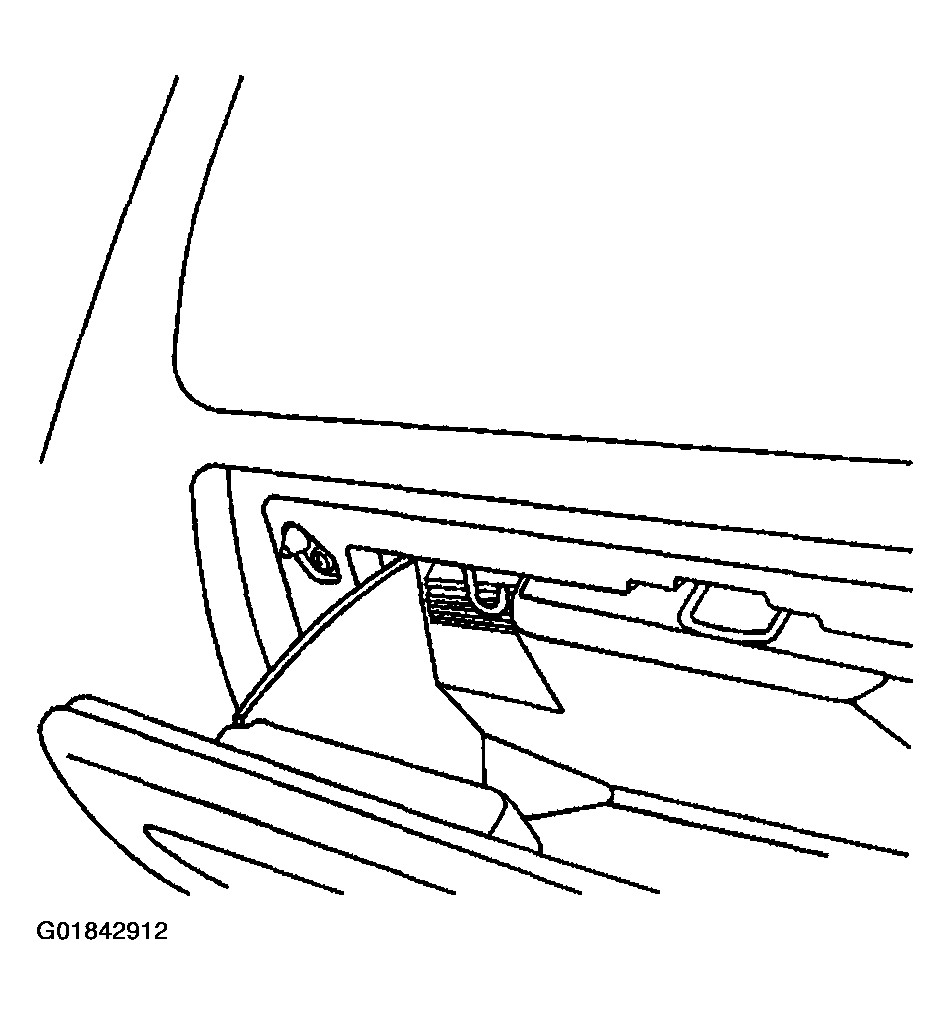

    Fig 3: Locating Storage Compartment Door J-Spring
    G01842912Courtesy of GENERAL MOTORS CORP.
  7. Install the right side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
