Installation Procedure

  1. Install the console to the vehicle.
  2. Connect the electrical connector, if equipped.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the nuts that retain the console to the vehicle.

    Tighten

    Tighten the nuts to 10 N.m (88 lb in).

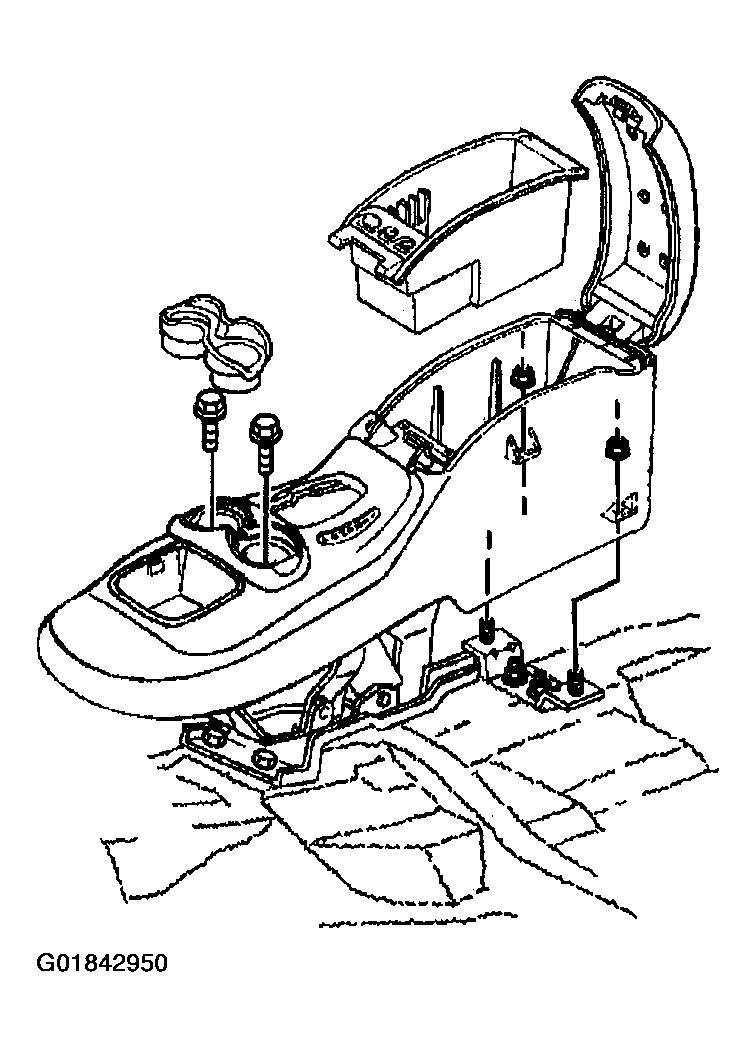

    Fig 1: Identifying Front Full Length Floor Console Components
    G01842950Courtesy of GENERAL MOTORS CORP.
  4. Install the storage compartment to the vehicle.

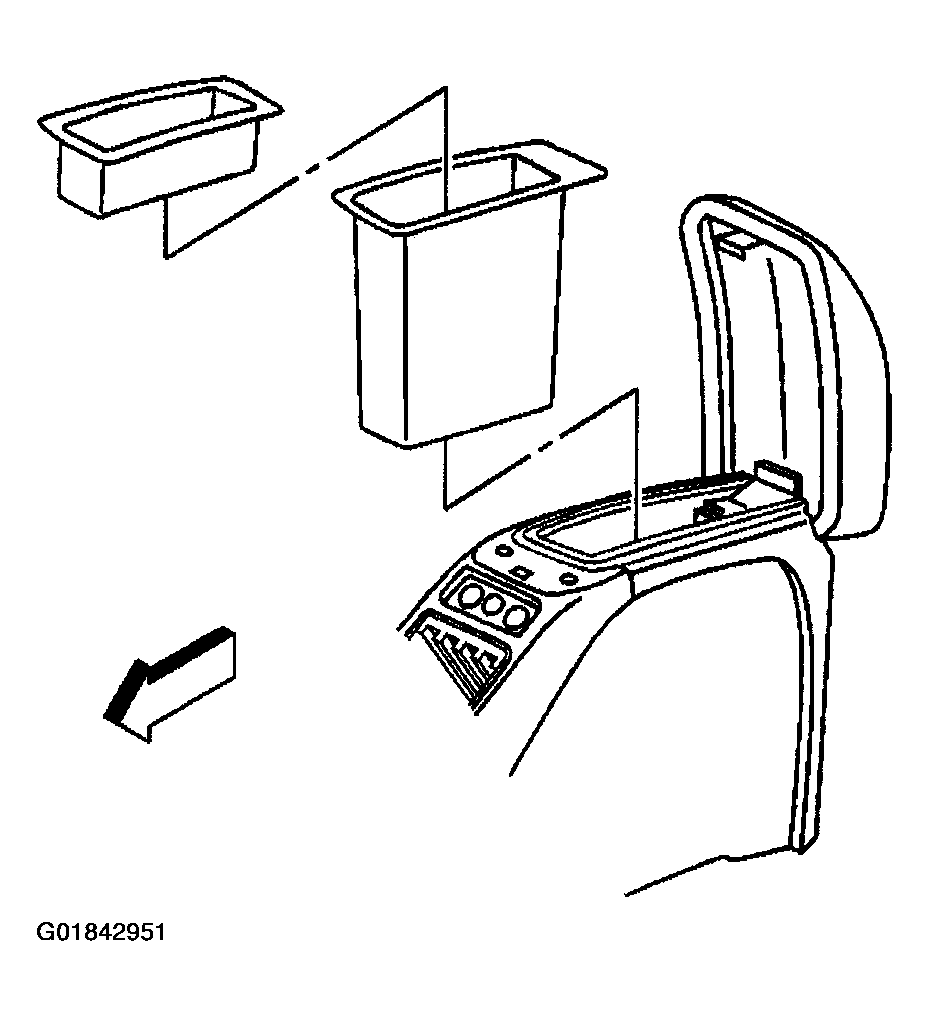

    Fig 2: Locating Console Compartment Inserts
    G01842951Courtesy of GENERAL MOTORS CORP.
  5. Install the trim plate to the console.
  6. Install the screws that retain the trim plate to the console.

    Tighten

    Tighten the nuts to 1.9 N.m (17 lb in).

  7. Install the cup holder insert.
  8. Install the shift control lever. Refer to CONTROL LEVER &/OR BOOT REPLACEMENT in MANUAL TRANSMISSION - NV 1500 article.

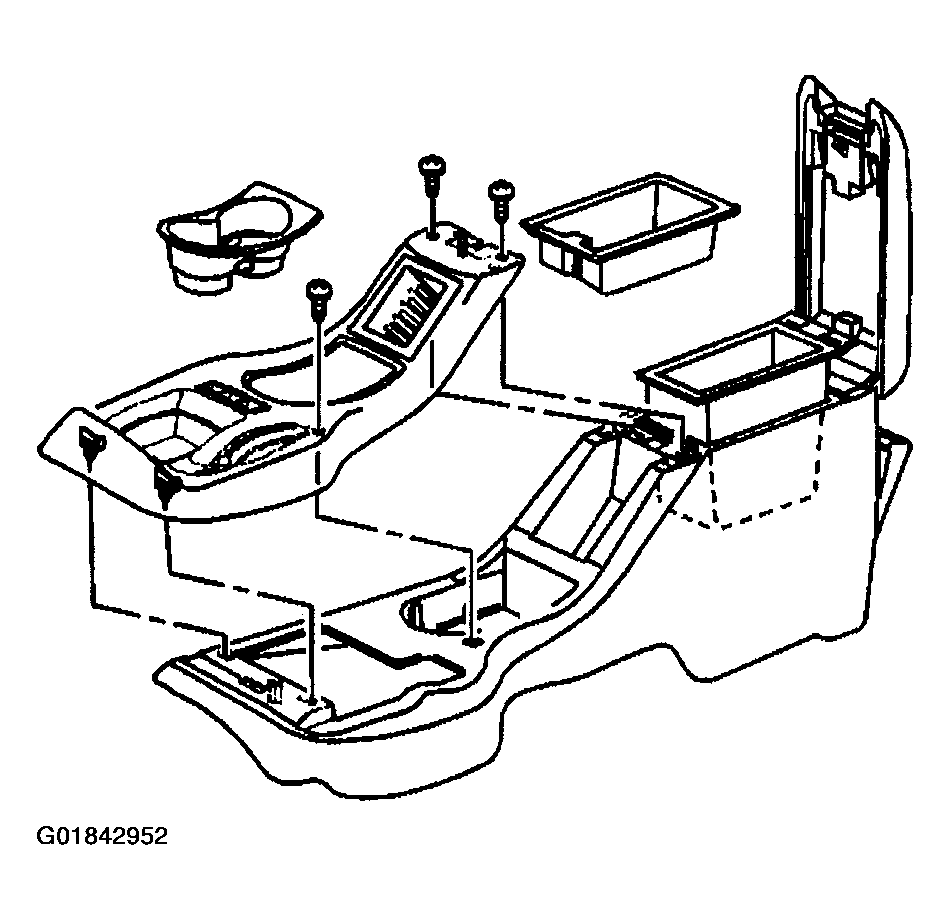

    Fig 3: Identifying Front Full Length Floor Console Components (Manual Trans)
    G01842952Courtesy of GENERAL MOTORS CORP.
